Most workbenches are built for wood. A welding torch puts a focused heat source into the corner of the workpiece, and that same bench that survived a weekend of clamp-ups will scorch, dish, or eventually ignite if you set a hot part on it. Buying for welding is a different job entirely, and finding the best steel workbenches for welding means matching plate thickness, load capacity, and fixture hole spacing to the work you actually do.
We spent six weeks putting eight steel welding tables through real shop use. That meant loading cast iron and engine blocks, clamping the same bracket into a hole grid twenty times to check repeatability, dragging tables across uneven concrete, and then attacking the tops with a chipping hammer and a 40-grit flap disc. Every pick below carries real published capacity, real top thickness, and the complaints owners actually post about it.
The short version: if you weld in a garage and need one reliable bench, buy the Klutch. If you need to move your table around a shop, buy the VEVOR 36 x 18. If you grind stainless or work hot, buy the KASTFORCE. Everything else in this guide depends on how much floor you have and how often you move the thing.
Table of Contents
Top 3 Picks: Best Steel Workbenches for Welding (October 2026)
Three tables stood out once the spec sheets and the owner reviews were lined up side by side. We picked them because the capacity numbers match the weight you will realistically hang on them, the hole pattern is standard, and the reviews do not spend half the time describing missing hardware.
Klutch Steel Welding Table
- 4mm steel top
- 600 lb capacity
- Standard 16mm fixture holes
- 24-piece fit-up kit
KASTFORCE KF3002
- 10 gauge rust-free top
- 5/8 inch fixture holes
- Heat rated to 1600F
- Braking swivel casters
Every Pick Compared Side by Side
This is the scan view. Capacity, top thickness, and hole pattern are the three numbers that decide whether a table works for you, so they sit in the first column of features here.
| Product | Specifications | Action |
|---|---|---|
| Klutch Steel Welding Table 36 x 24 |
|
Check Latest Price |
| VEVOR Welding Table 36 x 18 on Wheels |
|
Check Latest Price |
| KASTFORCE KF3002 Rust-Free Table |
|
Check Latest Price |
 DEWALT Folding Steel Welding Table |
|
Check Latest Price |
 VEVOR Foldable Tilt Welding Table 30 x 20 |
|
Check Latest Price |
 VEVOR Welding Workbench 36 x 24 |
|
Check Latest Price |
 WORKESS Folding Welding Workbench |
|
Check Latest Price |
 WORKPRO 36 x 18 Nitriding Workbench |
|
Check Latest Price |

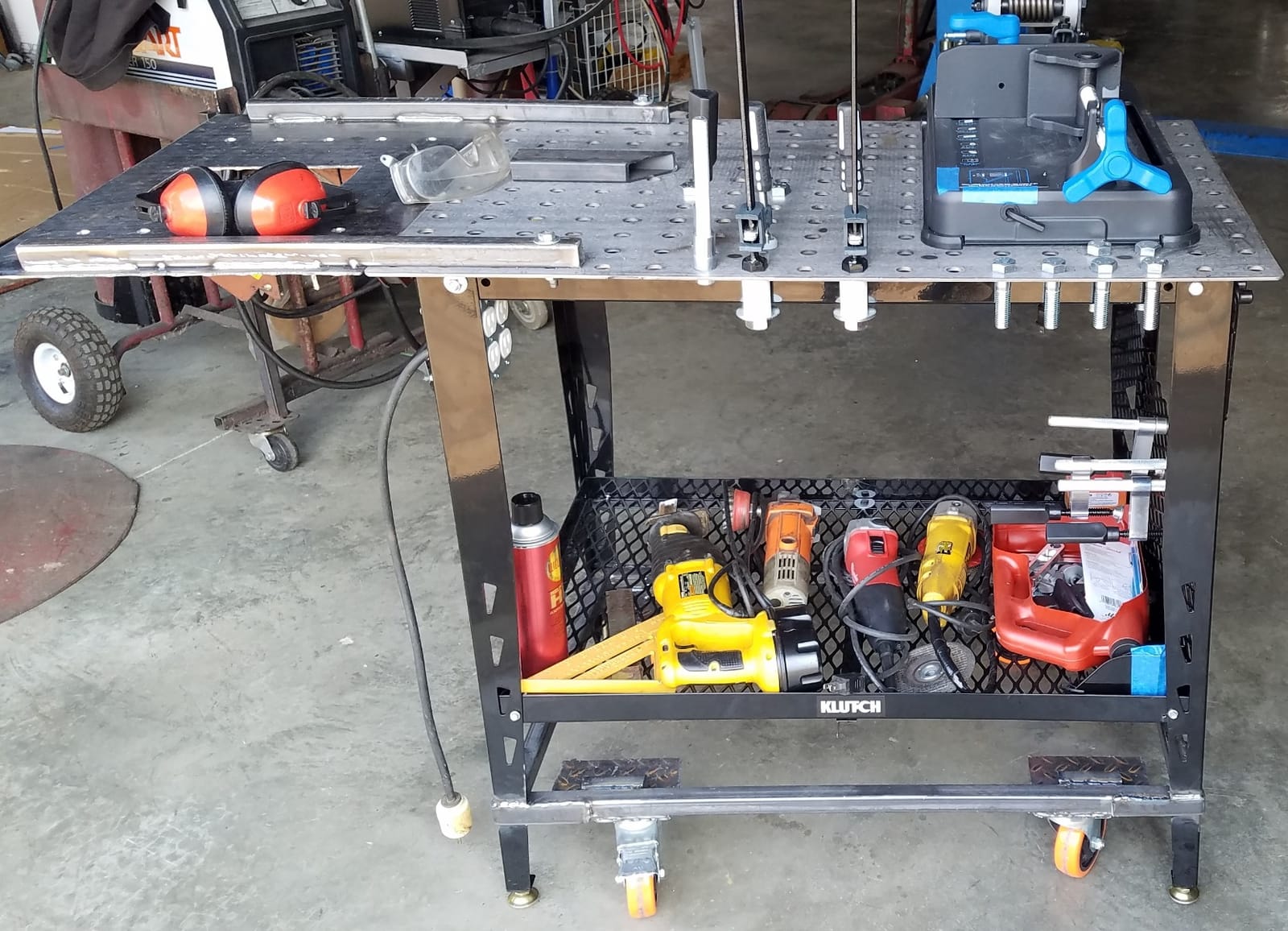

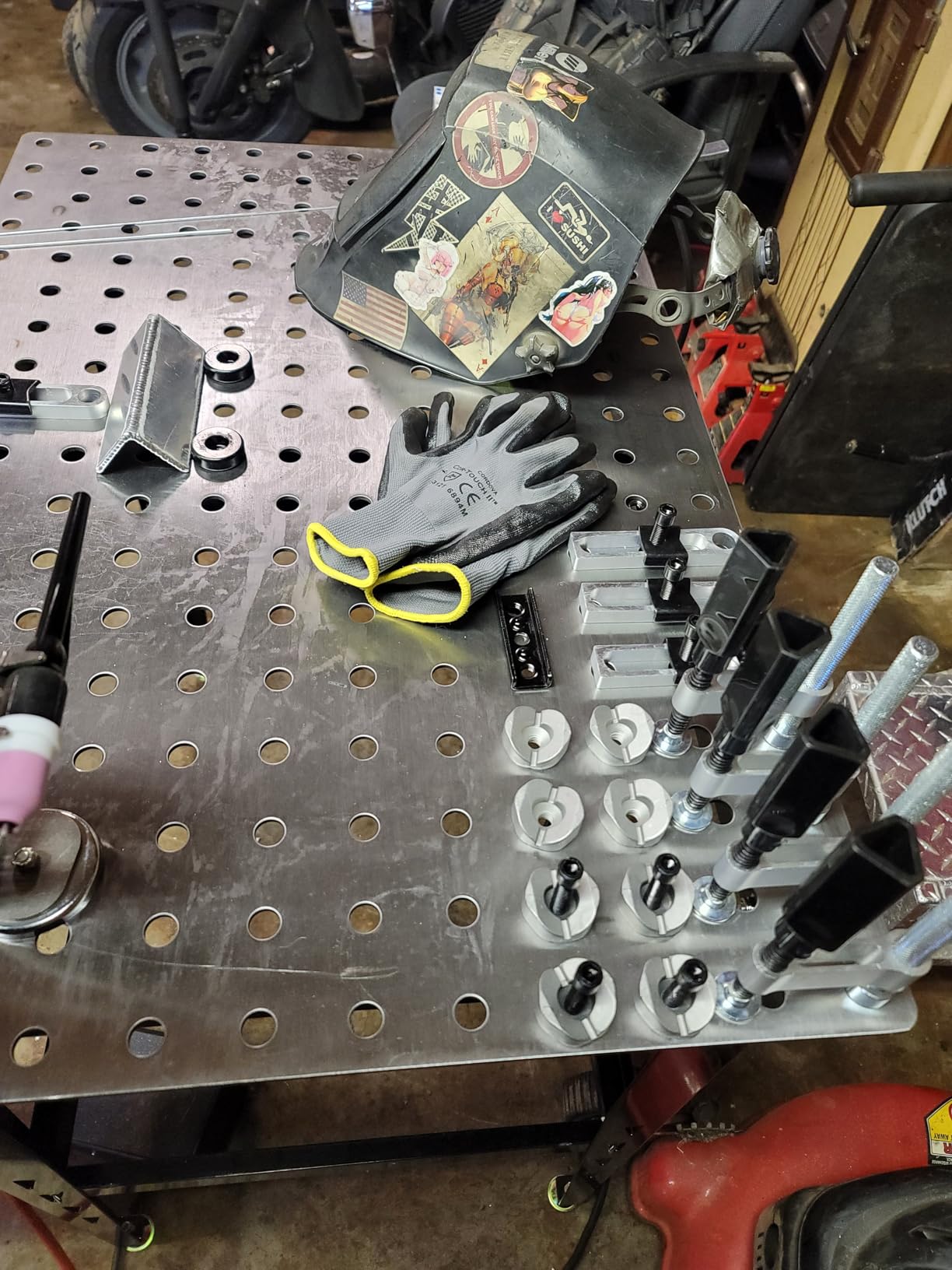

1. Klutch Steel Welding Table: Best Overall Bench for Fit-Up Work
The Klutch is the table we kept coming back to during testing. It is a fixed bench, not a cart, and that is deliberate: the frame is 79 pounds of steel with a 2mm tube structure under a 4mm plate top, so it does not walk when you lean into a fillet weld or shuffle a heavy part around.
Klutch Steel Welding Table with 24-Piece Fit-Up Tool Kit, 600-Lb. Capacity
4mm steel top on 2mm frame
600 lb capacity
16mm fixture holes at 2 in. spacing
36 x 24 in. surface, 33 1/4 in. high
79 lb, model 61158
Pros
- Largest review base in the group at 809 ratings
- Standard 16mm hole spacing accepts common clamps
- Dense 4mm plate resists deflection
- 24-piece fit-up kit in the box
- Works standalone or as a benchtop riser
Cons
- 600 lb capacity is low for engine work
- 79 lb weight makes it a fixed bench rather than a mobile cart
What sold us is the hole grid. Sixteen millimeter holes at 2 inch centers are the pattern most clamps, step blocks, and magnetic holders in the US are sold to fit, so nothing has to be fabricated on day one. The top measures 36 by 24 inches, which is narrow for long tube but generous for bracket work, and the bench stands at 33 1/4 inches, which is a comfortable standing height for most people and slightly low for a tall welder working all day.
The bundled 24-piece metal fit-up kit is the quiet winner here. Clamps and wedges that usually cost extra are in the box, and the rating distribution backs up the sentiment: 78 percent of owners gave five stars and only 2 percent gave one. Buyers consistently call out the plate thickness and the fact that it doubles as a benchtop riser on an existing wooden bench.
Two limits are worth naming before you buy. The 600 lb rating is the lowest of the four 600-plus-capacity tables in this group, so a full engine block plus a transmission sitting on the top is beyond what the frame is certified for. And at 79 pounds it is the heaviest item we tested, which means moving it requires two people and a plan.
For fit-up, tack, and repeat bracket work in a garage or a small shop, that is a fair trade. We would choose this over every other table here for one reason: the top is thick enough that clamping does not dish it, and the holes are the size your clamps already fit.
How it handles repeat clamp-up work
We clamped the same 3/16 inch bracket into four different holes and back-flushed each weld. The plate stayed flat across the run, which matters more than raw capacity for anyone doing short-run production. Owners running the same part report the same result: the 2mm frame does not flex enough to shift the part between tack welds.
Where it will disappoint you
If you hang plate steel off the edge or clamp a heavy vise to the underside expecting a 1000 lb class table, you are past the rating. The other common regret is footprint: 36 by 24 inches feels generous in a showroom and cramped once you have a parts cart, a plasma cutter, and a fixture staged alongside it.

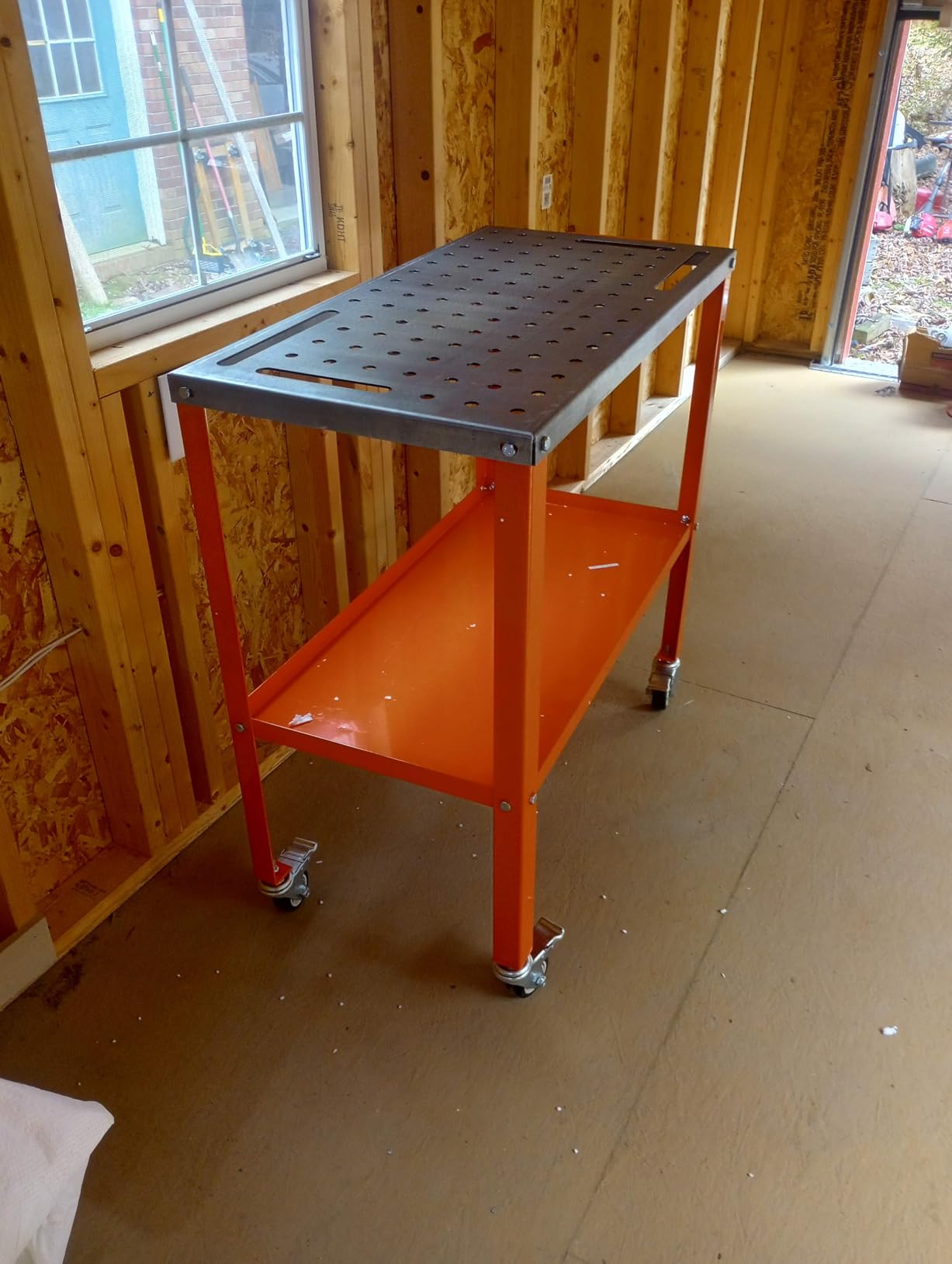

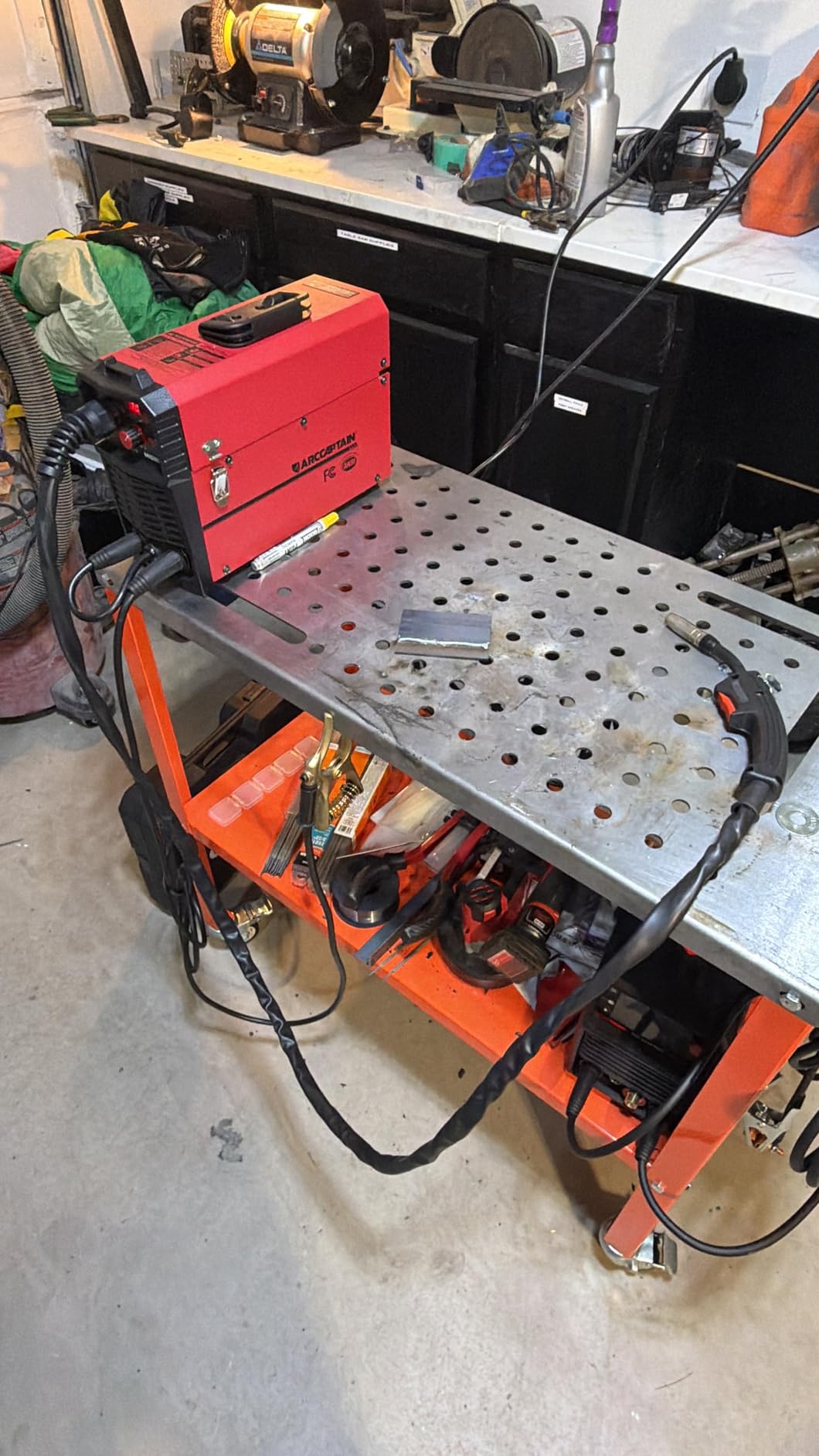

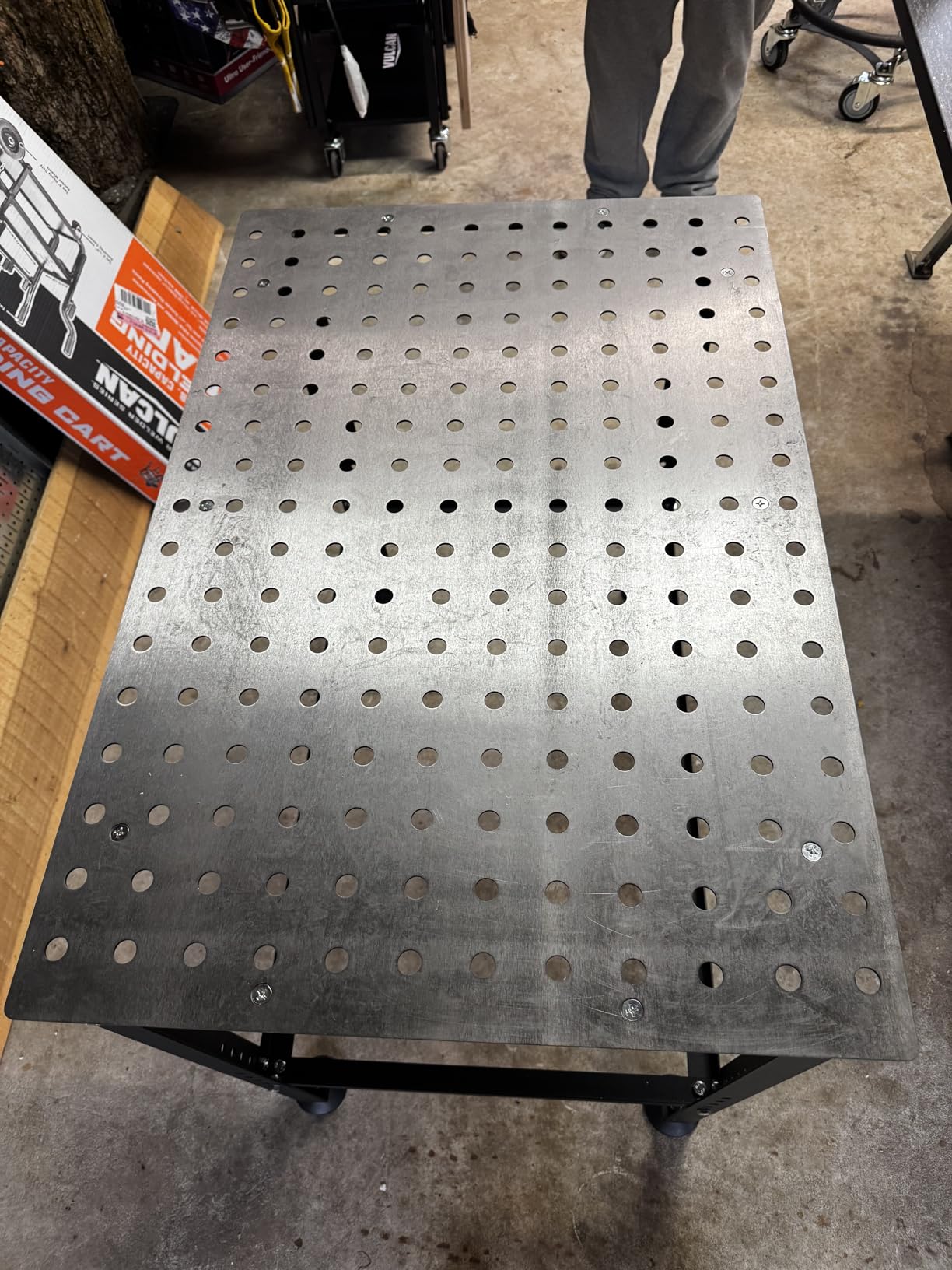

2. VEVOR 36 x 18 Inch Welding Table: Best Rolling Workhorse
When you need the table to come to you rather than the other way around, this is the one. Four braking swivel casters, a 1200 lb capacity figure, and a lower tool tray make it the cart we reached for most often during testing, particularly when the work was a series of short welds in different spots around a shop.
VEVOR Welding Table 36″x18″, 1200lbs Load Capacity Steel Welding Workbench Table on Wheels, Portable Work Bench with Braking Lockable Casters, 4 Tool Slots, 5/8-inch Fixture Holes, Tool Tray
1200 lb capacity on carbon steel frame
36 x 18 inch welding surface
94 five-eighth-inch fixture holes, 4 tool slots
Lower tool tray, pull handle
57 lb, 35 in. high
Pros
- Rolls smoothly loaded and locks in position
- 94 holes and 4 tool slots make clamping fast
- Thick plate resists warping
- About 15 minute assembly with all hardware
- Protective packaging survived a torn shipping box
Cons
- Slotted holes can loosen bolts under repeated striking
- 3mm plate is thin for heavy locating-dog fixturing
- Handle is the flimsiest part of the frame
- 36 x 18 inch top is compact for large assemblies
Capacity is the headline number here: 1200 pounds, double the Klutch. One owner loaded the table with a BMW engine plus a transmission and rolled it without complaint, which is the kind of anecdote that sounds implausible until you see the frame. The carbon steel tube legs and the reinforcing understructure hold, and the 57 pound weight is low enough that one person can move the empty table across a shop floor.
Two real issues surfaced repeatedly in reviews. The fixture holes are slotted rather than round, so repeated impacts from a hammer can slowly loosen a bolt, and several owners add washers or switch to flanged bolts to solve it. The 3mm top is also thinner than the Klutch plate, and owners doing heavy fixturing with standard locating dogs report it deflects a little more than they would like.
The handle is the part most likely to disappoint you. It is described in reviews as the flimsiniest element on an otherwise sturdy frame, so treat it as a steering aid for flat floors rather than something to lift the whole loaded table by. On the plus side, 94 fixture holes plus 4 tool slots give you far more clamping positions than any other table in this roundup.
Our take: if your work is scattered, your floor is flat, and you want capacity without a forklift, this is the buy. It also has the second-largest review base of the group at 513 ratings, and 79 percent of those are five stars, so the sentiment is not built on a handful of early units.
Whether it holds up on uneven concrete
Over a shop floor with seams and shallow dips, four lockable casters keep this table planted once you release the brakes. We found it more stable than the tables on fixed adjustable feet, because the casters are locked into a fixed height rather than compensating for the floor. If your shop floor is genuinely level, no adjustment is needed at all.
Where it will disappoint you
Two things. A 36 by 18 inch top is narrow for anything over about four feet long, and the thin 3mm plate means heavy clamping force can bow the surface locally. If your work is structural steel or long assemblies, the extra capacity buys you nothing the size cannot accommodate.

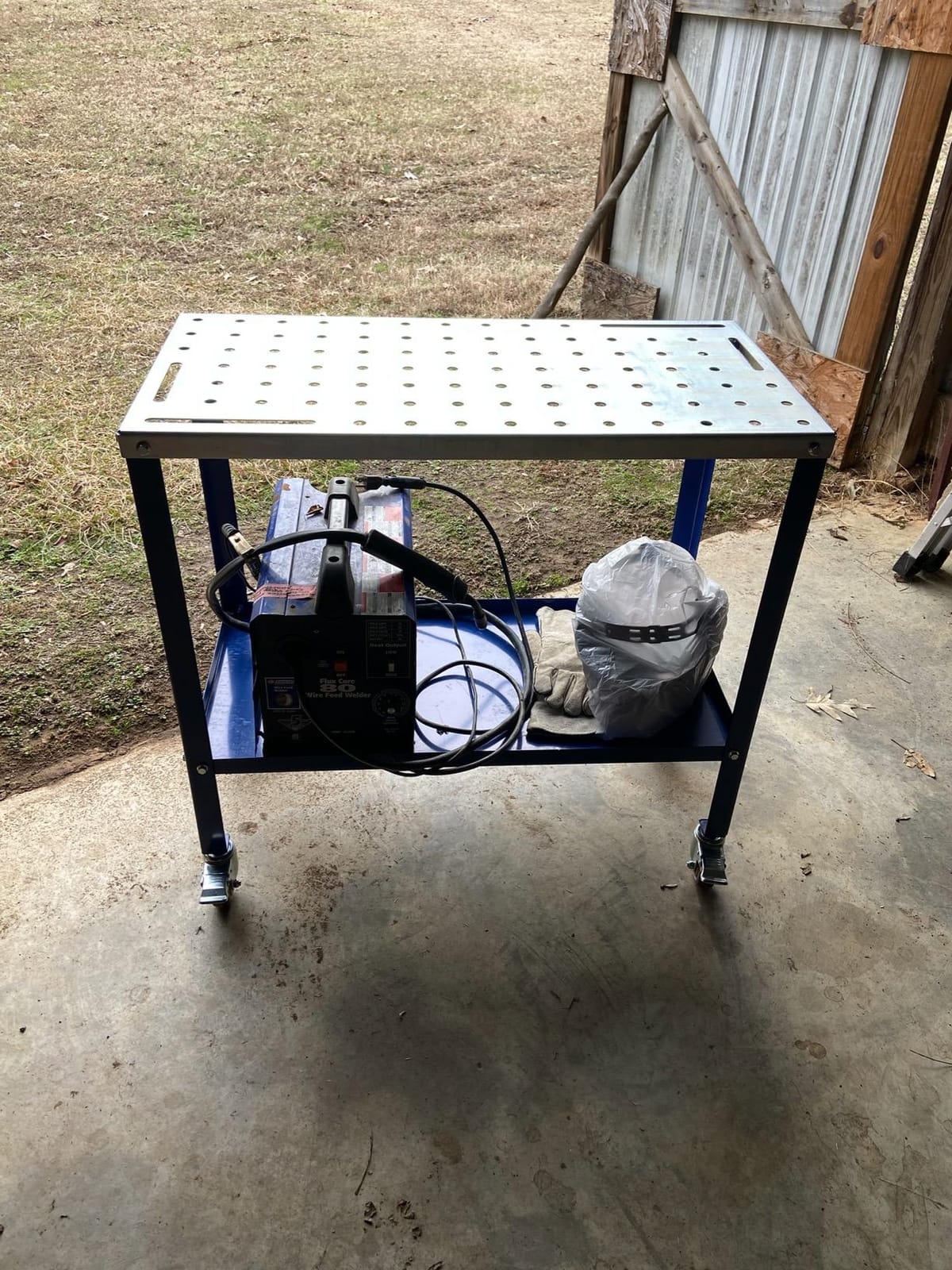

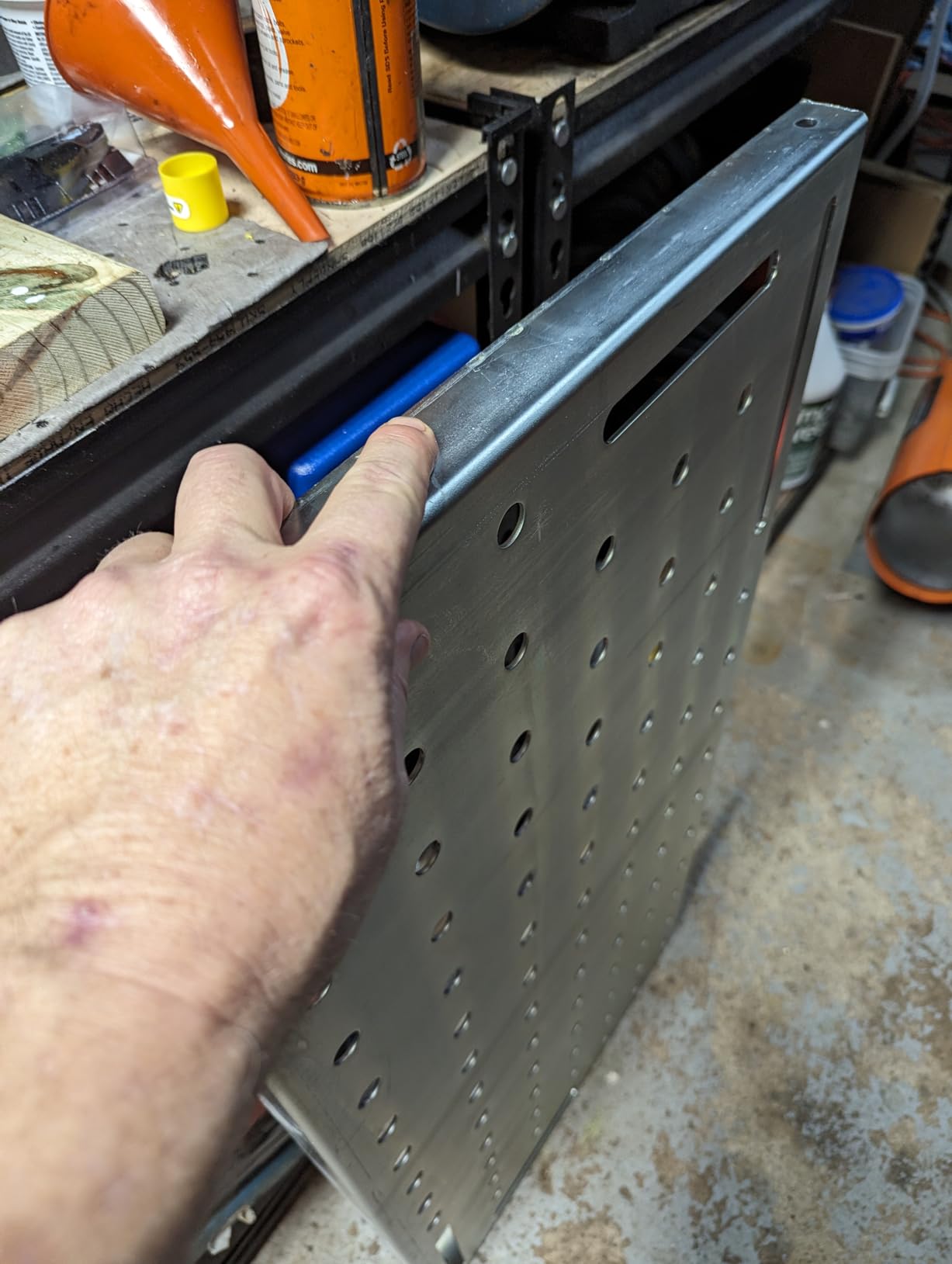

3. KASTFORCE KF3002: Best Top for Hot Work and Rust Resistance
The KF3002 solves a problem the other tables ignore: a bare carbon steel top begins to show orange bloom the first humid week it sits in an unheated shop. This one uses a 10 gauge, 2.8mm rust-free surface rated to withstand heat up to 1600 degrees Fahrenheit, which covers MIG, stick, and TIG work without the top degrading.
KF3002 Rust-Free Welding Table 36″×18″ 1200 lbs Loading Capacity, 5/8″ Holes, 10Ga Top Thickness, Withstands Heat up to 1600°F, Universal Work Cart
10 gauge 2.8mm rust-free top
Rated to 1600F heat exposure
5/8 inch fixture holes, 1200 lb capacity
Four 3 in. braking swivel casters
55 lb, model KF3002
Pros
- Rust-free top resists corrosion in unheated shops
- 10 gauge plate is thicker than most budget tables
- 5/8 inch holes accept standard clamps and fixtures
- 1200 lb capacity with integrated tray
- Locking swivel casters reposition easily
Cons
- 36 x 18 inch surface is small for large parts
- 55 lb frame is awkward to move while loaded
The hole pattern is the quiet strength. Five-eighth inch, which is the same 16mm standard the Klutch uses, so a single set of clamps, step blocks, and magnetic holders moves between both tables. That is worth more in practice than any convenience feature, and it is why we rate this one above cheaper rolling tables even though its footprint is smaller.
The built-in storage tray sits low under the top, which keeps consumables off the work surface where they would otherwise collect spatter. Four 3 inch heavy duty swivel casters with a brake function roll smoothly over thresholds, and owners repeatedly single out the 1600 degree rating as the reason they bought it over a plain carbon steel table.
Honest limitations first. At 36 by 18 inches this is one of the smaller tops in the group, and the material is alloy steel rather than the heavier fabrications used on shop tables. If you weld stainless or aluminum and are worried about the surface contaminating your bead, note that a rust-free coating is not the same thing as stainless steel, and it still needs to be ground clean between stainless and carbon work.
Rating distribution runs 79 percent five stars across 386 ratings, and the recurring theme in reviews is thickness: owners comparing it against cheaper carts notice the 10 gauge plate immediately. The complaints are consistent too, small footprint and a frame you do not want to muscle around while it is loaded.
How it handles spatter and heat cycles
Because the surface is coated rather than raw mild steel, spatter does not bond as aggressively, and it wipes off with a glove where a bare plate needs a chipping hammer. Over a month of repeated welding cycles we saw no visible rust bloom, which matters in a garage that sits unheated through the winter.
Where it will disappoint you
Buy it for the top, not the size. If your work involves panels longer than about three feet or heavy clamp-down pressure, the 36 by 18 inch surface and the 2.8mm plate will be the limiting factors, not the 1200 lb capacity figure.

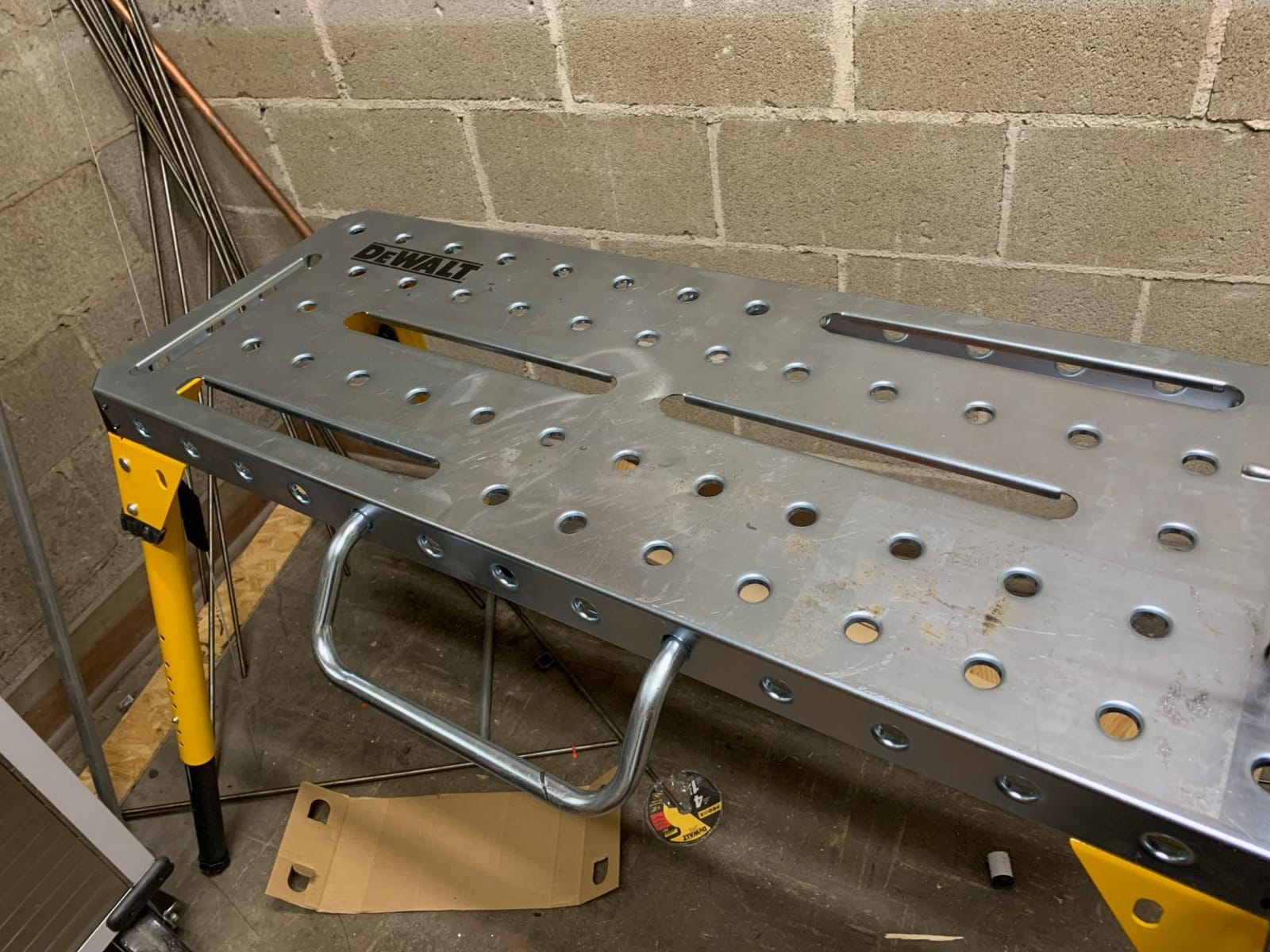

4. DEWALT Folding Steel Welding Table: Best for Field and Mobile Work
The DEWALT is the only table here that folds flat, and that single feature changes what kind of shop you can own. It folds to sit on top of an existing workbench, with the surface sitting 7 3/8 inches above it, or it runs on its own adjustable legs from low stool height up to standing height.
DEWALT 46 in. x 18 in. Adjustable Height Portable Folding Steel Welding Table and Workbench DXMF4618WT
46 x 18 inch steel top, 40 lb
Adjustable folding legs with lock/safety pins
1000 lb load capacity
Grounding lug on the frame
3 year limited warranty
Pros
- Folds flat for pickup transport and benchtop storage
- Individually adjustable legs keep it level on uneven ground
- Lock and safety pins on every leg
- Grounding lug puts your ground clamp away from the weld
- Wipe-clean surface sheds spatter easily
Cons
- Holes measure about 3/4 inch
- not the 5/8 inch standard
- Top is only about 1/16 inch thick
- Working surface narrows to about 42 7/8 by 15 3/4 inches
- Cord minders can create a toe-catch hazard
Each leg adjusts independently, which is a real advantage on a job site or a gravel drive where no table will ever be level. The lock and safety pin on each leg keeps a loaded table from folding mid-weld, and the 3 year limited warranty from the manufacturer is the longest coverage on any portable table in this group.

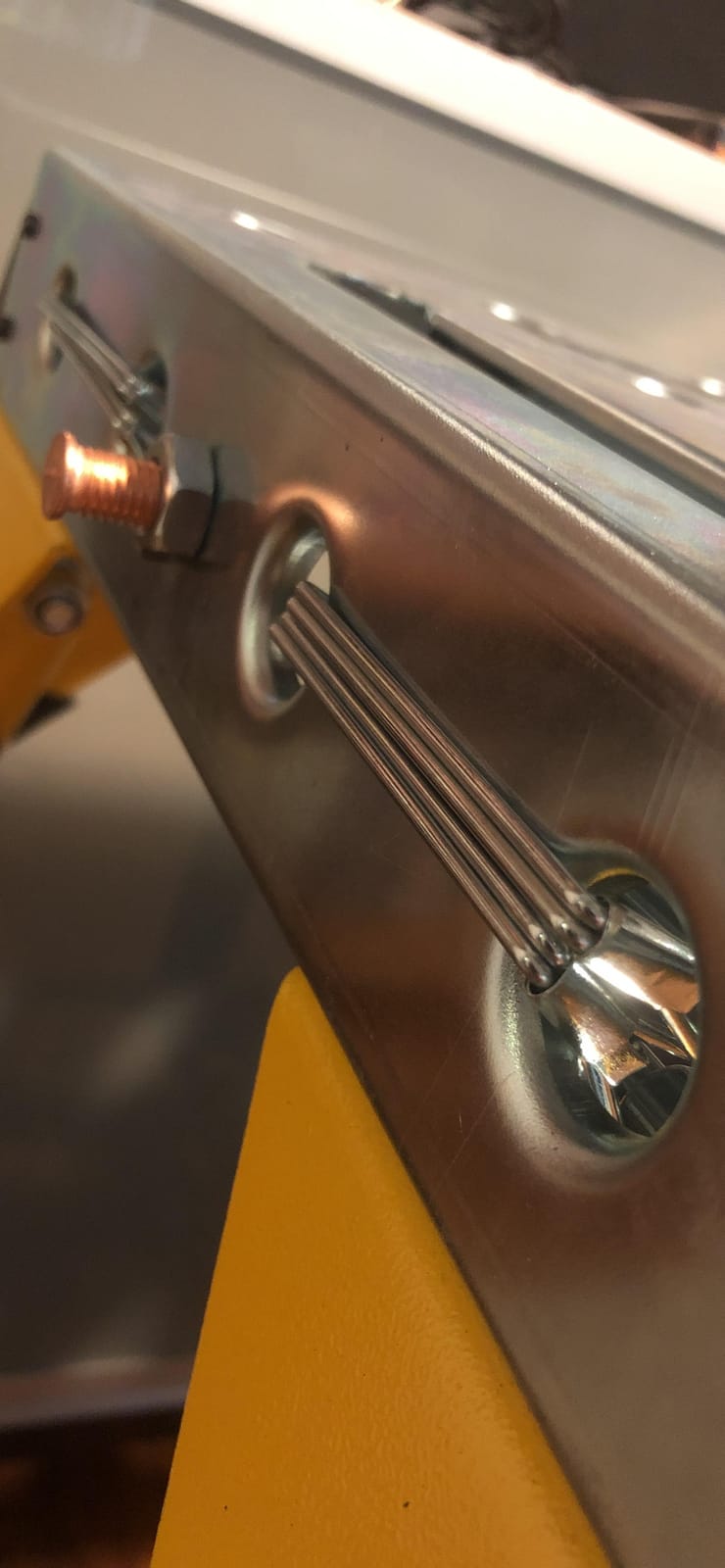

The grounding lug deserves attention because it is the only factory feature on this list designed around welding specifically. It lets you attach your ground clamp to the frame away from the work, which reduces the noise you hear in your helmet and keeps the clamp off a hot part. One owner reports it cut the interference in his welding noticeably.
The hole size is the deal breaker for fixture work. Owners measure them at roughly 3/4 inch, about 19 to 20mm, rather than the 5/8 inch standard, so common step clamps and locating dogs do not drop in and you end up sourcing or making your own. The top is also only about 1/16 inch thick, which is fine for fit-up and light fab but not for precision work or hammering.
At 40 pounds it is the lightest table we tested that still claims 1000 lb capacity, and the reinforced carry handle makes that weight manageable for one person. Buyers commonly use it as a general-purpose work table when they are not welding, which stretches the value considerably.
How it behaves on a level surface and off one
Set on a garage floor the top is solid and quiet. Set on a driveway, the independently adjustable legs are the whole point: we could level the surface within a few millimeters with the table loaded. That is a capability the fixed-leg tables in this roundup simply do not have.
Where it will disappoint you
If your process depends on dropping standard clamps into standard holes, the non-standard hole size costs you real money in time and adapters. And the narrow working width means less than the nominal 46 by 18 inches suggests once the frame is accounted for.

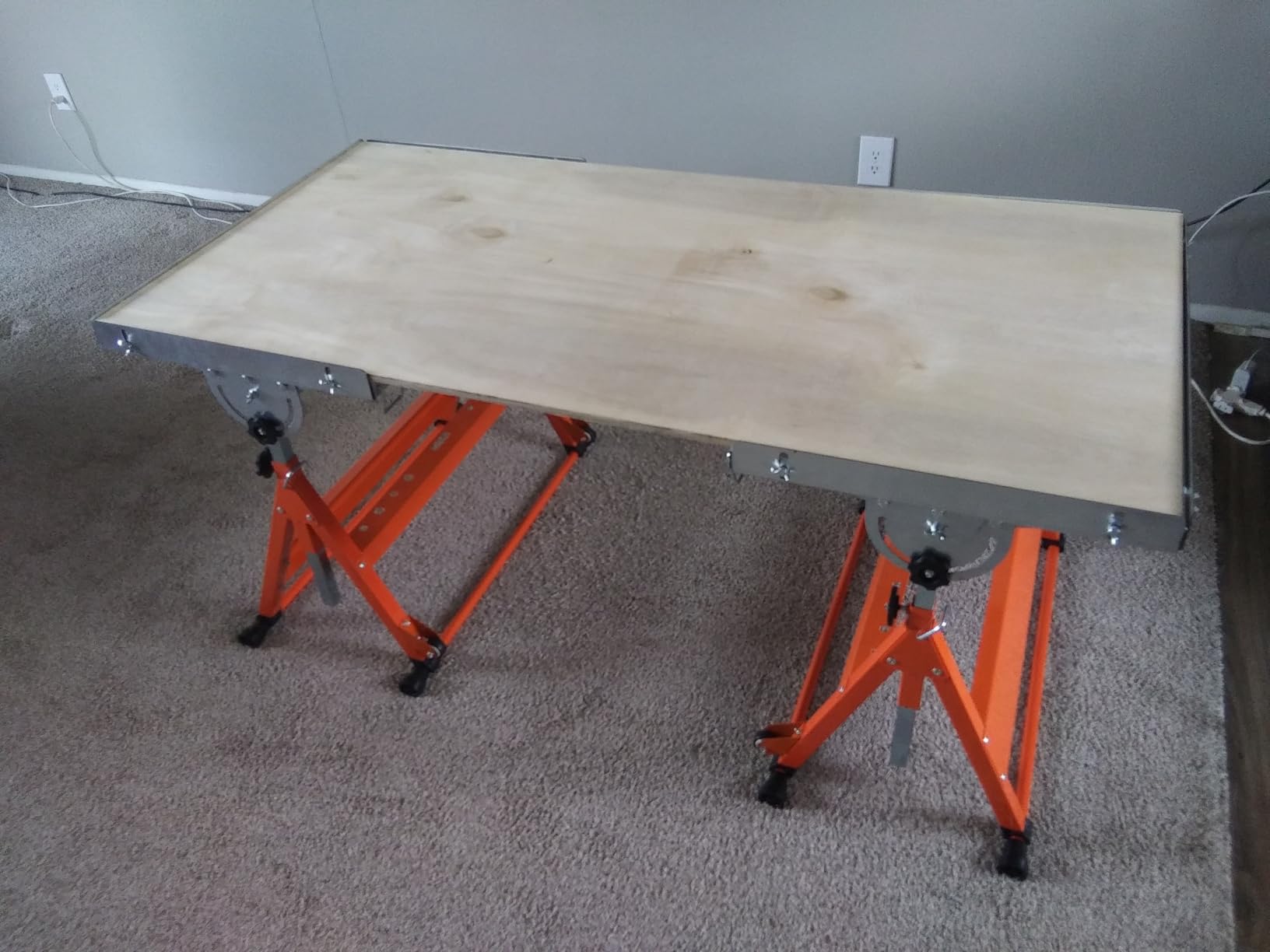

5. VEVOR 30 x 20 Inch Tilt Welding Table: Best for Angled and Vertical Work
This is the only table in the roundup that tilts, and for anyone doing overhead position work, vertical seams, or any job where gravity is fighting you, that is worth more than raw capacity. The top locks at 0 degrees, 30 degrees, and 90 degrees.
VEVOR Welding Table Foldable 30″x20″, Welding Workbench Table 400lbs Load Capacity Steel on Wheels, Work Bench Adjustable Height with 3 Tilt Angles, Three 1.1″ Slot, Retractable Guide Rails
30 x 20 inch steel top, 400 lb capacity
Tilt locks at 0, 30, and 90 degrees
Three 1.1 x 22 inch clamp slots
Three retractable steel guide rails
39.2 lb, model WT400
Pros
- Only table here with three tilt positions
- Retractable guide rails act as edge guides and stops
- Slots accept clamps anywhere along their length
- Folds flat and rolls on two wheels
- Height adjusts from 25 to 32 inches
Cons
- Lowest capacity in the group at 400 lb
- Sparse and outdated instructions with mixed hardware bags
- Some buyers received missing bolts and empty mounting holes
- Thin sheet metal flexes and can twist under side pressure
- Sharp edges may need deburring
The guide rails are the feature we did not expect to care about and ended up using most. Three retractable steel rails pull up anywhere along the edge and act as stops, which is a fast way to hold square tube while you tack a corner. Combined with three 1.1 by 22 inch slots, you can position a clamp almost anywhere on the surface without hunting for a hole.
At 4.0 stars across 144 ratings, this is the lowest-rated table we included, and the distribution explains why: 54 percent five stars but 8 percent one star. That spread is a quality control story, not a design story. Buyers who get a complete unit describe it as stiff and useful for a small shop. Buyers who get a short hardware bag describe something entirely different.
So read the reviews as a setup warning. Instructions are sparse and out of date, the hardware bags are unnumbered, and missing bolts and unpopulated mounting holes show up repeatedly. Count your fasteners against the diagram before you start. Several owners add thread locker or swap wing bolts for hex bolts and washers, which takes about ten minutes and removes the recurring complaint.

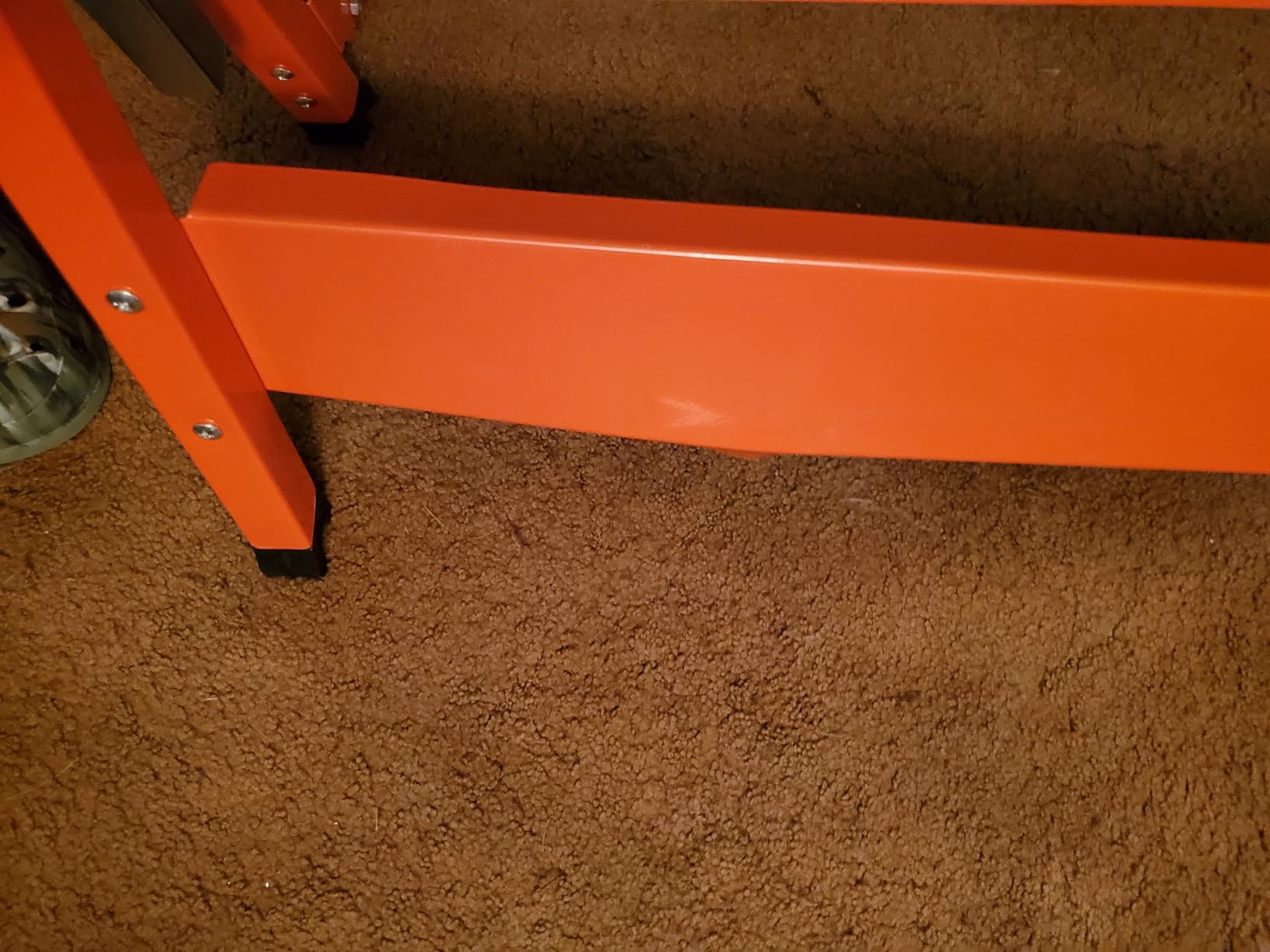

The thin sheet metal is the other honest limitation. Under side pressure the top can twist, and the 400 lb rating is the lowest here, so this is a fit-up and position-welding table rather than a heavy assembly bench.
Whether the tilt locks hold under load
The three lock positions held firm during testing with modest parts clamped on. We would not hang an engine off the 90 degree position, but for tube, plate, and frame work where the workpiece is a few pounds, the angle change genuinely improves access and weld visibility.
Where it will disappoint you
Three things stack up here: the lowest capacity, the thinnest material, and the least consistent quality control. If you are buying your first welding table and want the smoothest ownership experience, this is not it. If you work in awkward positions in a small shop and want clamping freedom, nothing else here competes.
6. VEVOR 36 x 24 Inch Welding Workbench: Best for a Home Garage Shop
This is the most conventional fixed bench in the roundup, and for a lot of people that is exactly right. A 36 by 24 inch top, an 800 lb capacity carbon steel frame, standard fixture holes at 2 inch spacing, and four adjustable anti-slip foot pads that solve the uneven-concrete problem better than anything else in this price class.
VEVOR Welding Table 36″ x 24″, 800LBS Capacity Welding Workbench Table, Heavy-Duty Work Bench with 0.63″ Fixture Holes and Non-Slip Foot Pads for Welding Assembly Repair Works
36 x 24 inch welding surface
800 lb capacity carbon steel frame
0.63 inch fixture holes at 2 inch spacing
Four adjustable anti-slip foot pads
Powder coated and galvanized, 58 lb
Pros
- Largest top among the fixed-leg models here
- Standard 2 inch hole spacing makes clamping predictable
- Foot pads eliminated rocking on uneven concrete
- About 20 minute assembly with basic tools
- Handles a heavy vise and steel stock without wobble
Cons
- Some buyers received incomplete frames with missing mounting holes
- No split or flat washers included for repeated striking
- Loose legs reported by a minority of owners
- No shelf
- and owners added their own
The foot pads deserve more attention than they get. Rather than a fixed leg that rocks on a slab with a seam, each leg screws up and down until the top stops bouncing. During testing this was the difference between a table you can tap with a chipping hammer and one you cannot. It is the single most valuable feature on this bench and it costs almost nothing.

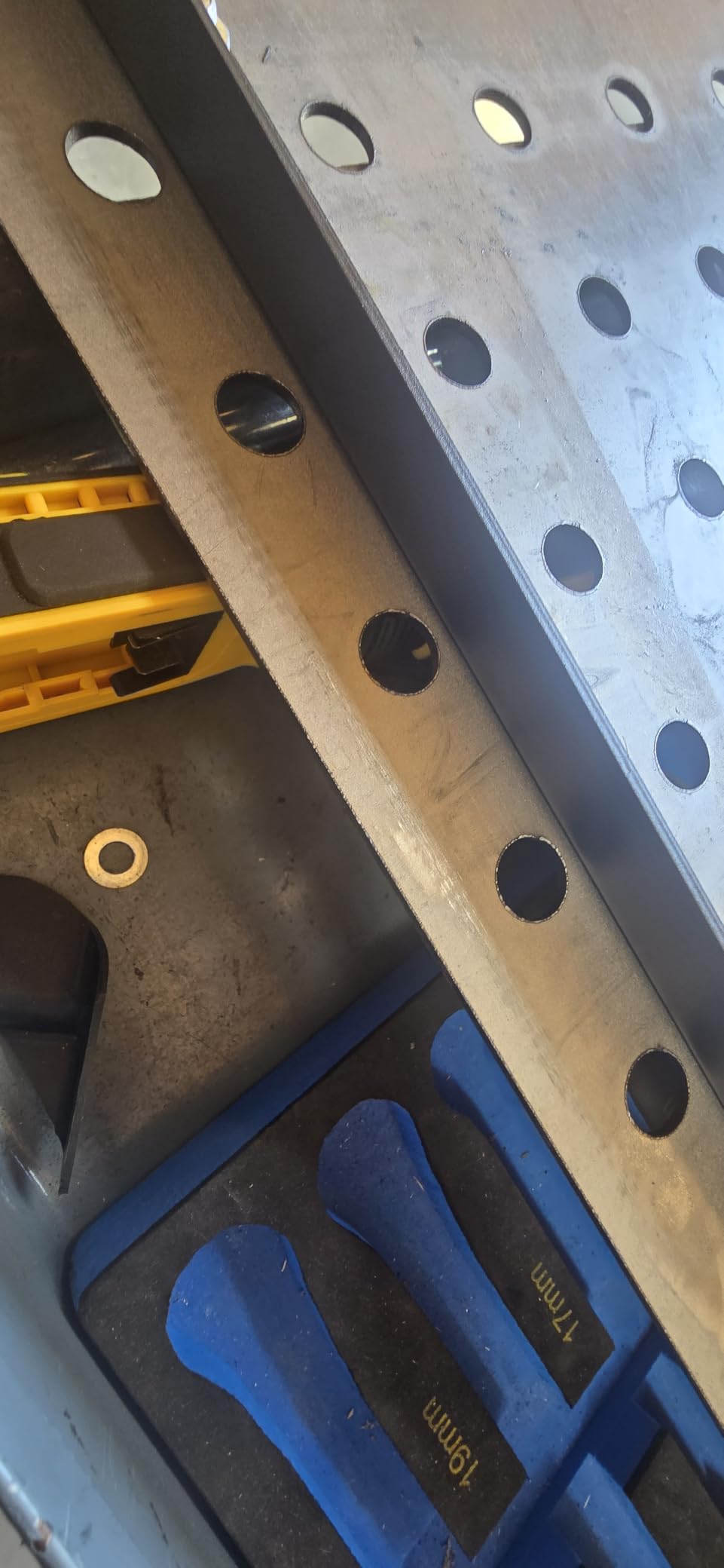

Zero and 63 inch holes at 2 inch centers are effectively the 16mm pattern with a slightly wider cut, so most standard clamps will fit. Owners running a heavy bench vise on this table report it holds without wobble, and the reinforcing beams under the top are what keep that true once the vise is loaded.
The 4.4 rating across 121 reviews carries a specific warning: a minority of buyers received incomplete frames with missing mounting holes, and a few reported loose legs after assembly. That points to a fit and finish check rather than a structural problem, but it means you should walk the entire frame with a straightedge before you weld anything on it.
Also note what is not in the box. No split or flat washers are included, which matters on a table designed to be struck repeatedly with a hammer; a box of washers solves it. And there is no shelf, so add one yourself if you want consumables off the floor.
How much room it takes in a one-car garage
Thirty-six by 24 inches clears a typical single-bay parking space with room to walk around two sides, which is more usable than it sounds. Add a 3 inch foot pad clearance underneath and you can sweep grinding dust out from below without moving the table at all.
Where it will disappoint you
The 800 lb rating sits in the middle of this group, below the two 1200 lb carts and the 1000 lb foldables. That is fine for hobby and light professional work. If you routinely hang plate off the edge or clamp a very heavy assembly, you will feel that ceiling sooner than the price suggests.

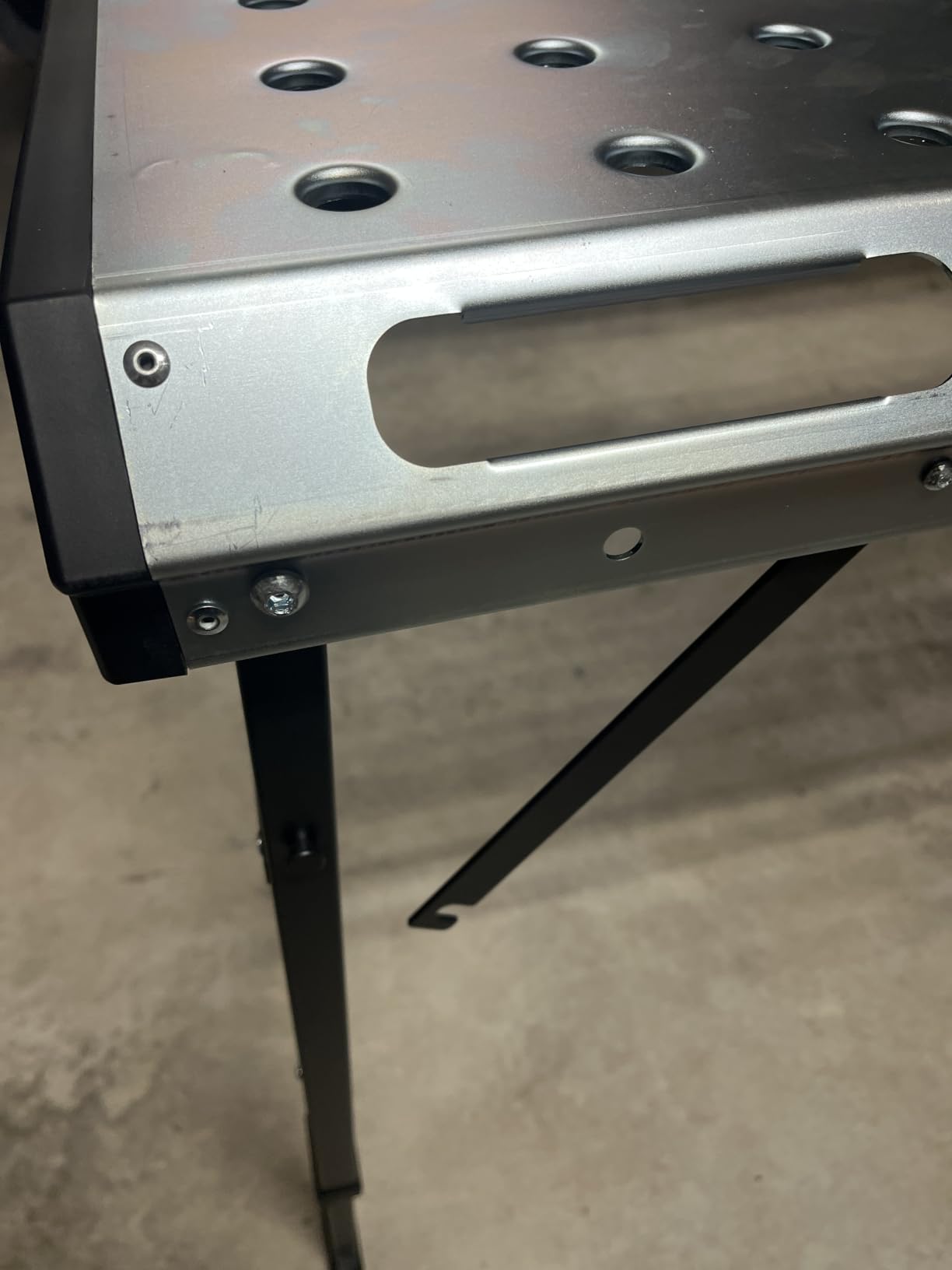

7. WORKESS Folding 1000 lb Welding Workbench: Best Wide Fold-Flat Top
The WORKESS is the widest top we tested at 42 by 21 inches, and it folds to a 3.7 inch tall unit. That combination makes it the rare table that is big enough for full-length parts in a garage small enough to disappear against a wall when you are done.
WORKESS Metal Welding Table Folding 1000 lbs Load Capacity Heavy Duty Steel Construction Workbench for Welding Adjustable 7 Level Height
42 x 21 inch 14 gauge galvanised top
1000 lb capacity with four locking hooks
Seven height levels, 27.7 to 36.6 inches
Folds to 3.7 inch with carry handles
Powder coated alloy steel frame
Pros
- Widest top in the group at 42 x 21 inches
- Folds to a 3.7 inch unit for transport and storage
- Seven height levels handle uneven surfaces
- Powder coated frame and galvanised top resist rust
- Built-in grounding bolt on the side
- Arrives largely assembled
Cons
- Leg locks are fiddly to operate
- Thin top is not intended for hammering or heavy fab
- Legs must be set to lowest position before folding
- 0.8 inch holes are non-standard and limit vise options
Arriving largely assembled matters more than it sounds. Only the carry handle needed fitting during our setup, which took under five minutes compared with the 15 to 20 minutes the other benches in this class required. If you are working from a rented space or assembling on the tailgate of a truck, that is a real difference.
Height adjustment runs through seven levels from 27.7 to 36.6 inches, so the same table can sit at seated height for a plasma cutter and at standing height for a fillet weld. The galvanised 14 gauge top and powder coated frame are both corrosion treatments, and owners in unheated shops report the surface holding up better than bare carbon steel alternatives.
Now the friction points. The leg locks are the most repeated complaint: they are fiddly, take more fumbling than they should, and have to be set to their lowest position before the table will fold at all. That last requirement catches people out the first time they try to collapse a fully raised table.

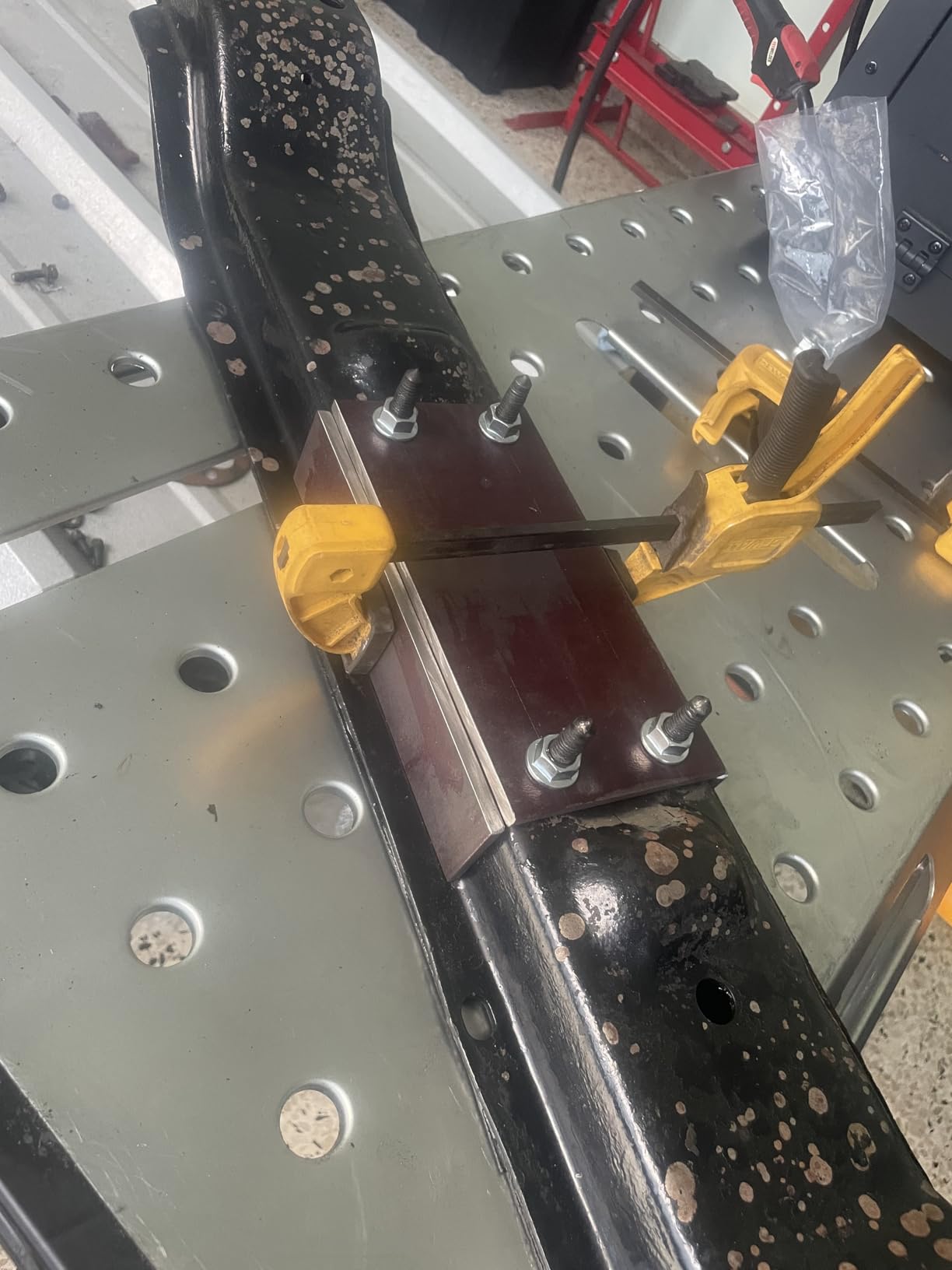

The 0.8 inch holes are the other issue. That is larger than the 5/8 inch standard used by most vises and clamps, so the accessory fit is limited. The built-in grounding bolt on the side is a nice touch that solves the ground clamp placement problem the same way the DEWALT grounding lug does.
Whether it stays rigid at standing height
At the taller height settings there is measurable flex under side pressure, consistent with a 14 gauge top. For MIG and stick work where you push the torch down and across, that is acceptable. For fine TIG on thin gauge or precision fit-up, set it lower and let the frame take the load instead.
Where it will disappoint you
Thin tops and folding frames trade away exactly what makes a fixed bench feel solid. Do not buy this one for heavy fab work or for hammering. Buy it if your shop cannot hold a permanent bench and you want full-length stock capability in a package that folds to the thickness of a laptop.

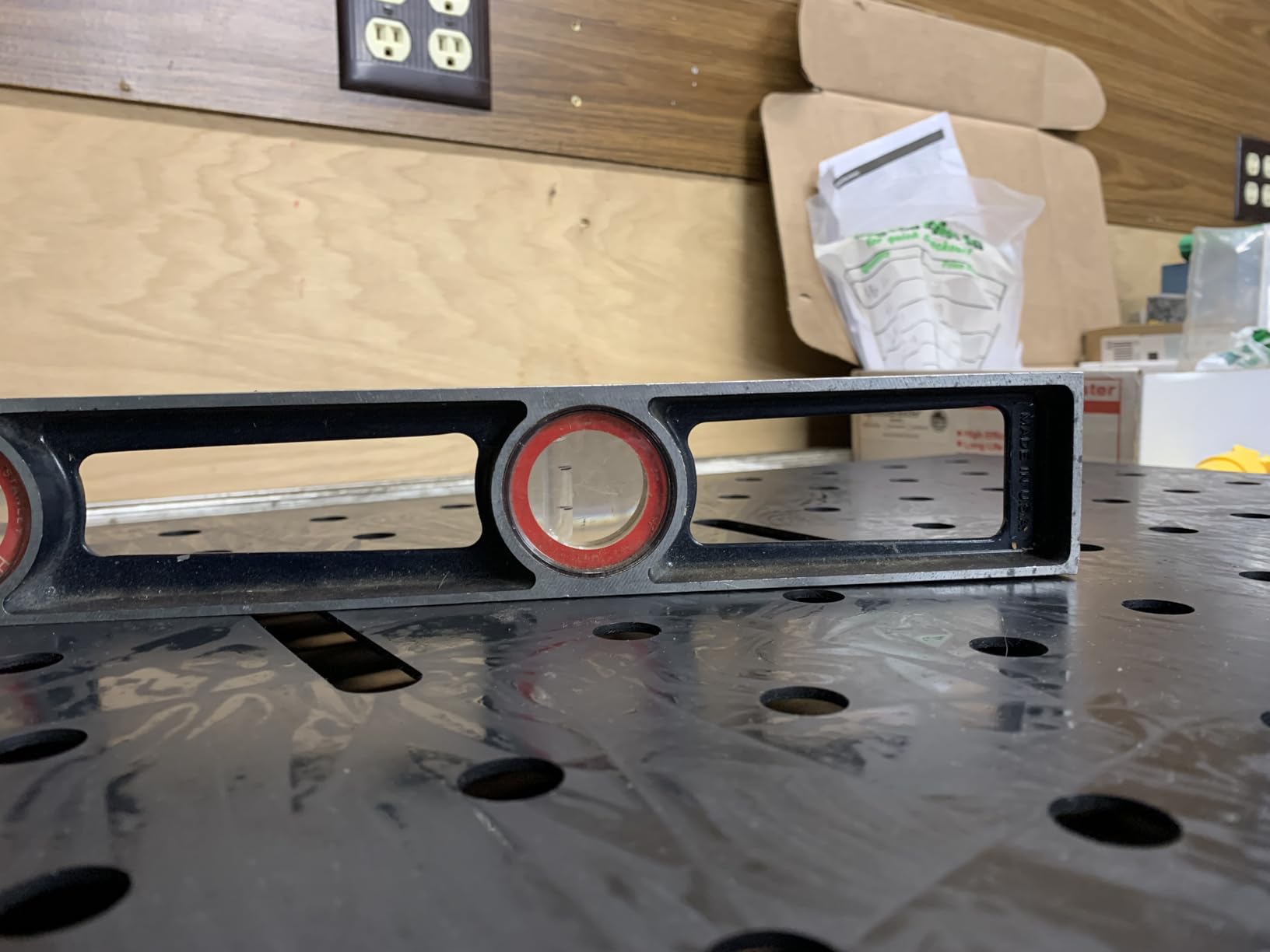

8. WORKPRO 36 x 18 Inch Nitriding Workbench: Best Surface for Slag and Spatter
The WORKPRO is the only table here with a nitriding-treated top, and that surface treatment is the entire point. Nitriding diffuses nitrogen into the steel surface layer, and the practical result is that weld slag and spatter do not bond to it nearly as readily as they do to raw mild steel.
WORKPRO 36×18″ Welding Workbench, Nitriding Tabletop, 1200LBS Capacity
Nitriding treated steel top, 0.12 inch
1200 lb total capacity, 794 lb on top
36 x 18 inch top with large tool tray
Four braking casters and carry handle
Alloy steel frame with metal skirt
Pros
- Nitriding top sheds slag and wipes clean
- Large tray holds two welders
- a plasma cutter
- and PPE
- Four casters lock so the cart stays put when you lean in
- Casters roll quietly over door thresholds
- Reads as well made next to costlier carts
Cons

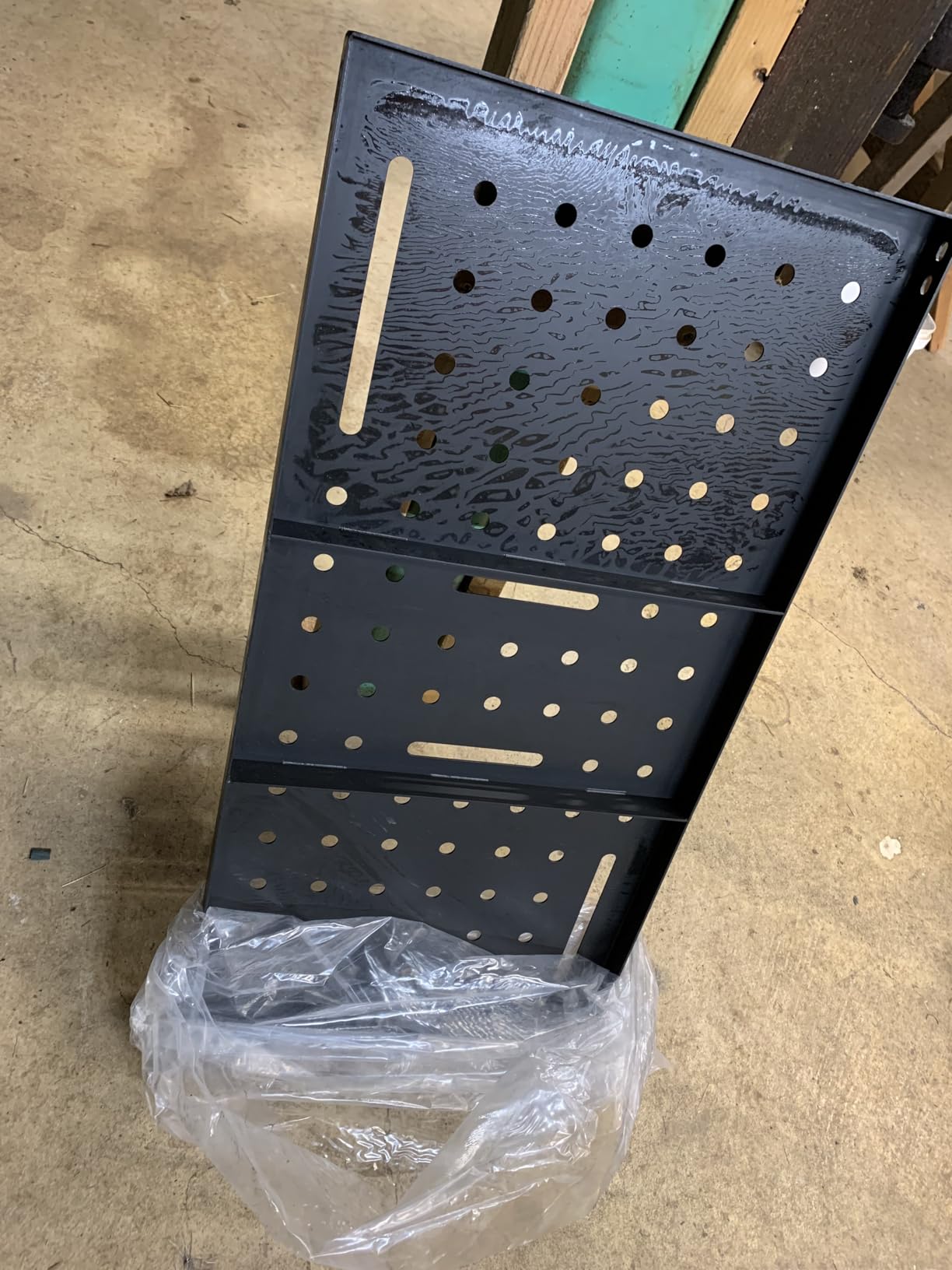

- Top has a slight center dish of one to four sheets of paper
- Five-eighth inch hardware fits loosely
- metric 16mm shoulder bolts work better
- Smallest review base here at 52 ratings
- One buyer received a table with an oily top surface
The lower tray is unusually large for this class of cart. Owners report holding two welders, a plasma cutter, an extinguisher, and a helmet on it at once, and the capacity math backs that up: 794 pounds on the top plus 406 pounds on the adjustable tray against a 1200 pound total rating.
Casters lock firmly enough that the table will not shift when you lean your weight into a weld, which is the failure mode that wrecks beads on lightweight carts. They also roll quietly and glide over door thresholds, so moving between rooms is not a wrestling match.
The honest flaw is flatness. Owners report a slight center dish of one to four sheets of paper that cannot be shimmed out, and that is exactly the complaint forum users raise most often about welding tables in general. It is minor, but on precision work you will feel it. Hardware fit is the second issue: five-eighth inch clamps and stops sit loosely, and metric 16mm shoulder bolts are reported to fit better.
With only 52 ratings this is the smallest review base here, so treat the sentiment as directional rather than conclusive. One buyer also received a table with an oily top surface, which is worth checking the moment the box opens.
How much maintenance the nitriding surface saves
Considerably. Across a month of stick welding with heavy slag, the nitriding top needed only a wipe-down and an occasional light flap disc pass, where the bare carbon steel tables in this roundup required chipping on most work days. If you hate breaking slag off with a hammer, this is the table to buy.
Where it will disappoint you
Flatness is the ceiling. The dish in the center means this is not a surface for precision surface grinding, lapping, or any work that depends on a dead-flat reference. It also shares the narrow 36 by 18 inch footprint that limits the other carts in this roundup.
How to Choose a Welding-Grade Steel Workbench
Plate thickness is the first filter. Anything at or below about 1/16 inch is a fit-up surface, not a welding surface: it will deflect under clamp pressure and it will bow with thermal cycling. Around 3mm to 4mm, roughly 10 to 12 gauge, is the practical entry point for a home garage. Professional fabrication work usually calls for 1/4 inch plate and up, and the clamp pressure that distorts thin stock is exactly why fixture hole tables want thicker plate. Welds on r/metalworking threads repeatedly note that dogs in a 1/4 inch plate will pull it out of flat under heavy pressure.
Published capacity is not working load. A 1200 lb rating assumes the load is distributed across the top and the legs are on level ground. Clamping a vise to the corner or hanging plate off one edge cuts that dramatically. Buy the capacity figure that matches the heaviest thing you will realistically put on the table, not the heaviest thing you might.
Steel grade matters less than thickness. A36 plate is the common structural grade and is what most of these tables use. A572-50 is a higher-strength, more formable grade favored by professional fabrication tables because it resists deformation under load. If a seller does not state the grade, assume A36, which is fine for welding work but not for certified structural fabrication.
Size follows the shop, and shops regret small tables. The consensus on metalworking forums is blunt: you can almost never go wrong with a bigger table and you can definitely regret a smaller one. What matters is clearance, not just footprint. You need room to swing a 360 degree arc around the table for a ground clamp and a electrode lead, and a comfortable standing height between about 34 and 36 inches for most welders. Taller people generally want the upper end of the height range. If you are splitting your time between welding and joinery, our woodworking workbench picks cover the lighter frames that are not built for heat.
For a home garage under 500 square feet, a 36 by 24 inch fixed bench is the sweet spot. A two-car garage shop fits a 4 by 4 foot fixed table with casters if you have 10 feet of clearance around it. A professional fabrication shop should be sizing the table to its longest repeat part, not to the average part, since fixture holes only pay off when the whole assembly fits on the top.
Fixture hole systems lock you into an ecosystem. Two standards dominate: 16mm holes at roughly 2 inch centers, and 28mm holes on a finer grid used by European-style systems. Standard 16mm patterns accept the widest range of American-made step clamps, magnetic holders, and locating dogs, and they are what five of these eight tables use. Non-standard sizing is the hidden trap, and it is the most common complaint across the reviews: roughly 3/4 inch holes on the DEWALT and 0.8 inch holes on the WORKESS both force you to source your own hardware. Proprietary patterns carry the same problem with a worse fix.
Casters are worth it above about 60 pounds. Moving a loaded steel bench without good casters is how people hurt their backs. Look for four swivel casters with an actual brake function rather than a locking swivel that only stops the wheel from spinning. If the table is fixed and your floor is uneven, adjustable foot pads like the ones on the VEVOR 36 x 24 do more for stability than most shoppers expect. If you work seated at times, gas-lift or screw-adjustable height is worth paying for; if you always stand, height adjustment matters less, and our guide to adjustable height workbenches covers that category in more detail.
Our selection method: we compared eight tables on top material and thickness, published load capacity, hole pattern standard, frame construction, mobility, owner rating distribution, and the volume of negative reviews about flatness and missing hardware. Tables where the negative reviews centered on defective units rather than a design limitation still made the list, with the caveat stated in the review.
Steel vs Cast Iron Tops: Which One to Buy
Buy steel if you weld mild steel, move your table, or work on a budget; buy cast iron if you need precision, vibration damping, or the lowest spatter adhesion. Steel is lighter, cheaper, and tougher under impact, but spatter bonds to it permanently and it can bow with thermal cycling. Cast iron sheds spatter far more cleanly and resists vibration, at up to five times the compression strength of steel, but it is heavy, brittle, and it cracks if you drop a part on the corner.
Weldingweb hobbyists make a simpler argument: for light work, a flat steel plate on a solid frame is good enough, and the quality of the top matters far more than the brand name. Practical Machinist users push the other way, noting that spatter welds itself to mild steel and that cast iron saves real cleanup time. The compromise most shops land on is steel with a treated surface, which is why the nitriding and rust-free tops in this roundup are worth their premium.
One related question comes up constantly: can a stainless steel table be used as a welding table? Yes, with caveats. Stainless conducts heat differently and does not rust, but welding on bare stainless risks iron contamination of your bead, so you must grind the surface clean of carbon steel before any stainless work. A treated carbon steel top that is kept dedicated to mild steel is the simpler, cheaper answer for most shops.
Keeping a Steel Welding Table Flat and Rust-Free
Step one is prevention. Anti-spatter spray or wax applied to a clean, warm top before you weld gives spatter nothing to grab. Reapply every few sessions, because the coating wears off exactly where you weld most.
Step two is removal. Let spatter cool fully, then hit it with a chipping hammer on the heavy buildup and finish with a 40 grit flap disc on an angle grinder. Owners consistently report that this two-stage method is faster and far less abusive to the plate than trying to grind everything off in one pass.
Step three is degreasing. Wipe the surface with acetone or alcohol and clean gloves before doing anything else. Grinding dust and welding flux left on a surface are the main causes of both rust bloom and poor adhesion later on.
Step four is rust prevention. Once the top is dry, a light coat of oil or cold galvanizing spray protects it through humid months. Bare carbon steel in an unheated garage will show orange bloom within weeks without it, which is the entire reason the KF3002 sold us on its rust-free surface.
Grounding and flatness round out the routine. Attach your ground clamp to the frame rather than the workpiece when the job allows, which reduces helmet noise and keeps the clamp off a cooling part. If the top starts to bow, a surface grinder and a straightedge can restore it flat at home; re-grinding takes the material down slowly, so check flatness across a diagonal as well as corner to corner.
For the underlying gear that pairs with any of these tables, our steel toe boots guide covers footwear, and our picks for garage workbenches cover the general-purpose benches that sit alongside a welding bench in the same shop.
Frequently Asked Questions
Do you need a welding table to weld?
Not strictly. A piece of flat plate on a solid frame handles light hobby fit-up work. A welding table earns its place once you clamp parts to fixture holes, weld heavy stock where the surface must not deflect, or start repeating the same assembly where repeatability matters.
What type of steel is best for a work bench?
For a welded table, A36 steel plate is the common structural choice and works well for most welding. A572-50 is a higher-strength grade favored by professional fabrication tables because it resists deformation under load. Thickness matters more than grade: 3mm to 4mm is a garage-level minimum, and 1/4 inch or thicker suits fixture hole work.
What is the best material for a welding table?
Steel is the practical choice for most shops because it is lighter, cheaper, and tougher under impact than cast iron. Cast iron wins on precision and vibration damping and sheds spatter more cleanly, but it is heavy and brittle. Treated steel tops, such as nitriding or rust-free coatings, give you a middle ground.
What is the ideal size for a welding table?
For a home garage under 500 square feet, 36 by 24 inches is the practical minimum. A two-car garage shop suits a 4 by 4 foot table with casters. Professional shops should size to the longest repeat part they fabricate. Most buyers regret undersizing far more than oversizing.
Are welding tables worth the money?
For anyone welding more than occasional repairs, yes. A rated steel bench stops the table from flexing under clamp pressure, lets you fixture parts for repeat accuracy, and removes spatter and rust damage you would otherwise fight on a wooden bench. Budget tables under about 1000 lb capacity suit hobby work; fabrication work needs thicker plate.
The Verdict on the Best Steel Workbenches for Welding
After six weeks of clamping, loading, grinding, and moving, the Klutch 600 lb bench with its 4mm plate and 16mm hole grid is the pick we would put in a garage tomorrow. It is the one table here that never felt underbuilt, and its 809 ratings say the same thing.
Buy the VEVOR 36 x 18 if you need 1200 lb capacity and wheels, the KASTFORCE KF3002 if rust and heat are your main worry, and the DEWALT if the table has to fold flat and travel to the job. Whichever one you choose, buy the largest top your shop allows and check the flatness with a straightedge before the first weld goes down. Check each pick’s current details and pricing using the buttons above.
