A server rack is a 19-inch-wide frame or cabinet that mounts servers, switches, UPS units and network gear on standardized rails. One rack unit, written 1U, equals 1.75 inches (44.45 mm), and that single number drives almost every sizing decision you will make. The market splits cleanly: open frames suit home labs and rolling carts, while enclosed cabinets suit closets, studios and shared rooms where dust, noise or security matters.
That split is why there is no single best server rack. There is only the right one for your gear, your floor space and your tolerance for noise. We compared 12 racks across U height, usable mounting depth, load rating, enclosure type, cooling and what actually arrives in the box, then matched each one to the room it fits. Last updated in 2026; specs reflect the manufacturer listings we reviewed at the time of writing.
Two sizing rules explain most of the disappointment we found in owner reviews. First, count the rack units your equipment actually occupies, then add 20 to 30 percent headroom for the gear you will buy next year. Second, buy on usable mounting depth rather than overall cabinet depth, because a rack that fits the chassis but leaves nothing behind it is a rack you will fight every time you pull a cable.
Everything below is written for buyers in 2026 who want a real decision, not a catalog. If you are outfitting a home office rather than a basement, you may also want to compare the [best power racks](https://www.mineralwaters.org/best-power-racks/) we cover for strength training, since both decisions come down to honest load ratings and honest floor footprints.
Table of Contents
Top 3 Picks: Best Server Racks in 2026
StarTech 42U 4-Post Open Frame
- 1320 lb static load
- Adjustable 22 to 40 inch depth
- 24 cable management hooks included
NavePoint 12U Wall Mount Cabinet
- Locking tempered glass door
- 110 lb load rating
- 17.7 inch compact depth
All 12 Server Racks Compared in 2026
| Product | Specifications | Action |
|---|---|---|
| StarTech 42U 4-Post Open Frame Rack |
|
Check Latest Price |
| NavePoint 12U Wall Mount Enclosure |
|
Check Latest Price |
| NavePoint 9U Open Frame Rack |
|
Check Latest Price |
 AxcessAbles 12U Open Frame Rack with Wheels |
|
Check Latest Price |
 Tecmojo 12U Open Frame Network Rack |
|
Check Latest Price |
 Tecmojo 6U Wall Mount Cabinet |
|
Check Latest Price |
 Raising Electronics 15U 4-Post Open Frame |
|
Check Latest Price |
 Sysracks 18U Wall Mount 24 Inch Deep Cabinet |
|
Check Latest Price |
 StarTech 22U 4-Post Rack Cabinet |
|
Check Latest Price |

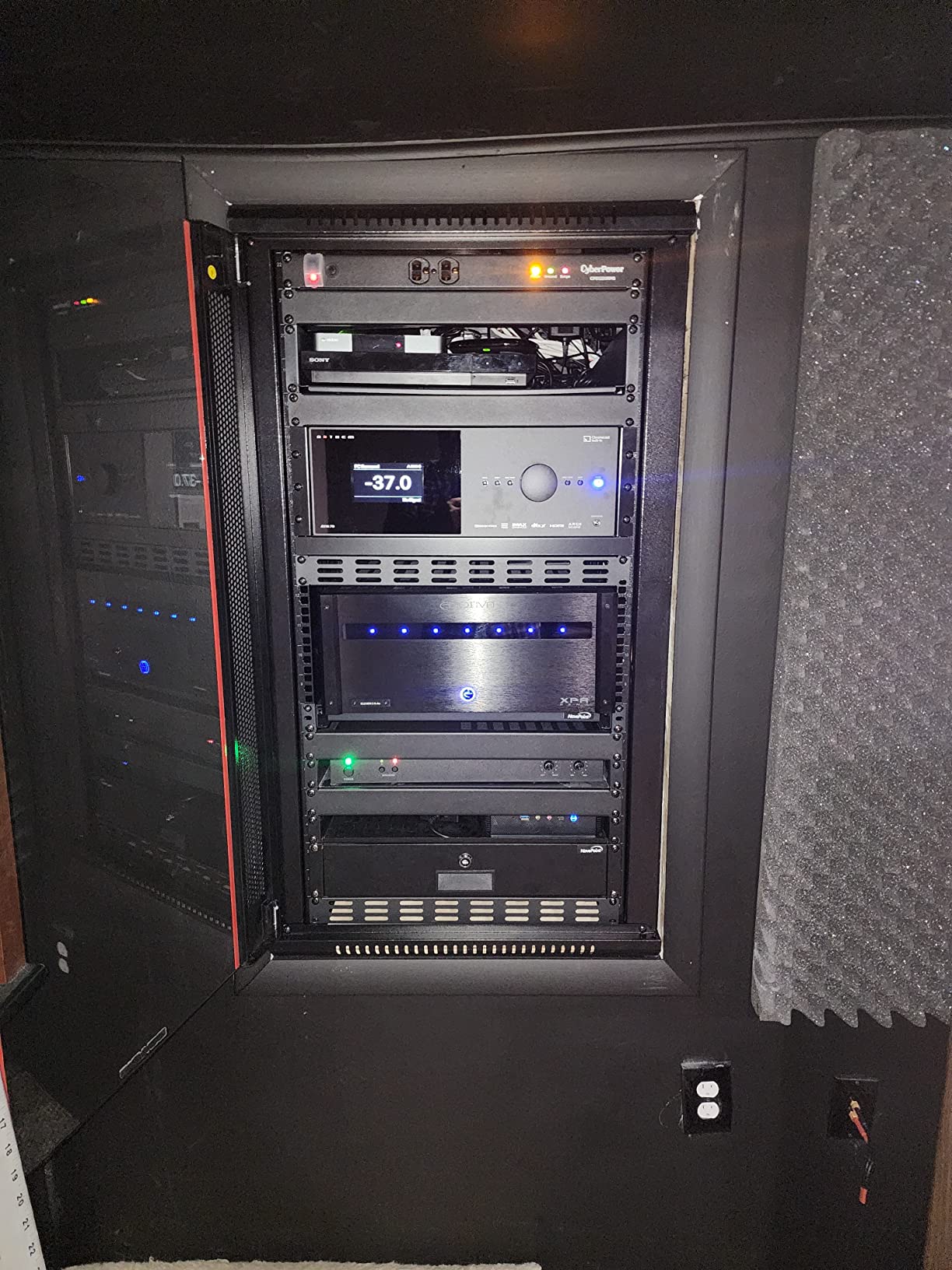

 Sysracks 15U 24 Inch Deep Wall Mount Cabinet |
|
Check Latest Price |

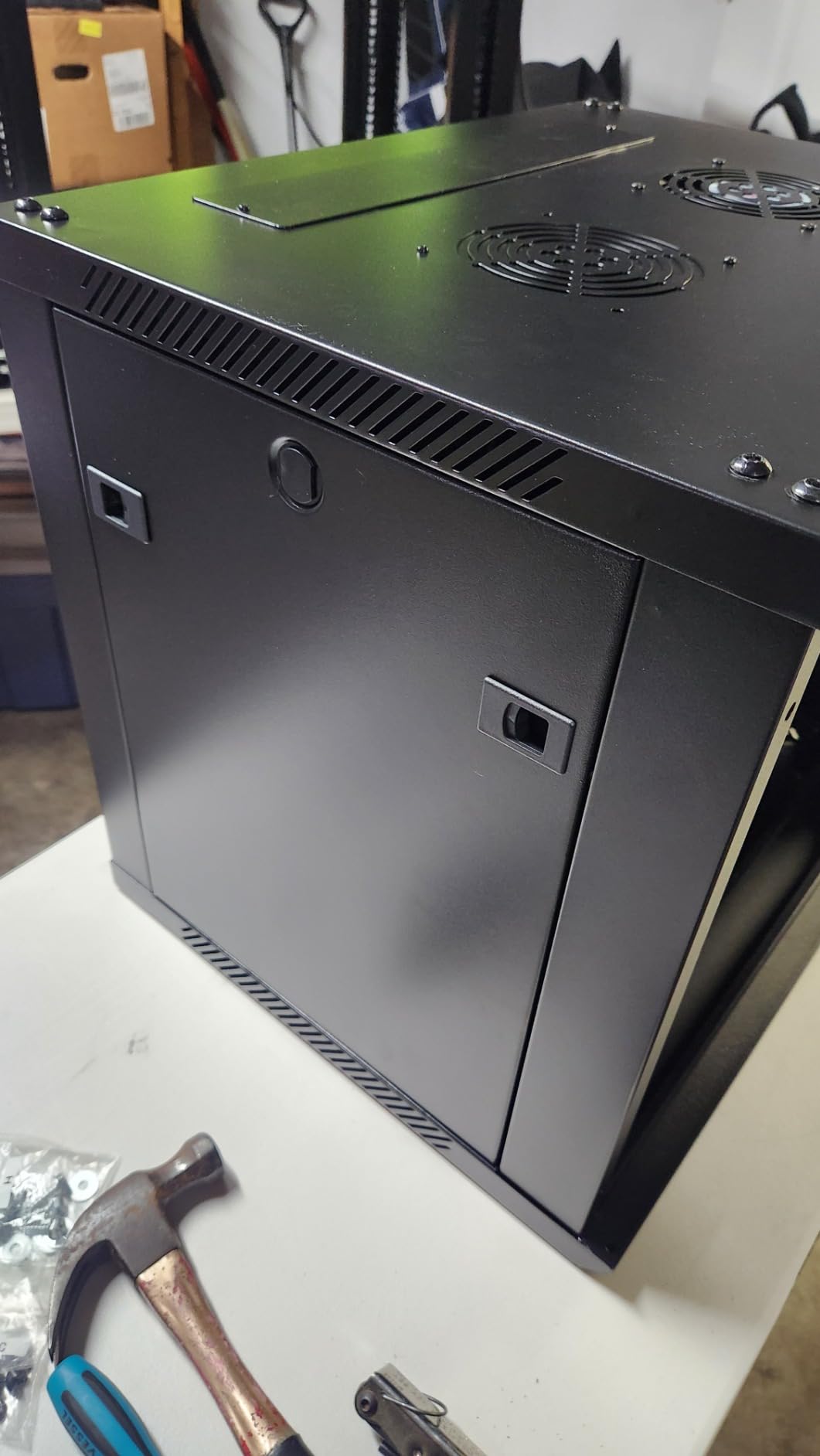

 RackPath 12U Wall Mount Server Cabinet |
|
Check Latest Price |
 StarTech 12U Wall Mount 4-Post Cabinet |
|
Check Latest Price |
1. StarTech 42U 4-Post Open Frame Rack – Best Overall Open Frame
StarTech 42U 4-Post Open Frame Rack, 19in, 22-40in, 1323lb/600kg
42U open frame
Depth 22 to 40 inch
Static load 1320 lb (600kg)
EIA/ECA-310-E compliant
Pros
- Cold-rolled steel that does not shift once tightened
- Adjustable depth rails cover shallow switches and deep servers
- Includes cage nuts screws 24 cable hooks casters and tools
- Open frame makes sliding rails easier to install
Cons
- Instructions are confusing on several steps
- Effectively a two-person lift at full height
- Changing depth later means partial disassembly
- Limited internal cable management options
I keep coming back to this frame because it does the least interesting thing well: it holds 1320 pounds stationary and it stays square under load. The rails adjust from 22 to 40 inches, which is the single most useful feature for a home lab that will hold shallow network gear now and a deeper NAS later.
Assembly is the honest weak point. Owners describe confused instructions and a build that realistically needs two people, and they warn that the depth markings are easy to misread while the base brackets add real depth beyond the published 44.1 inches. Budget an afternoon, not an evening.
What you get in the box is unusually complete: 24 cable management hooks, cage nuts, screws, grounding wires, casters, leveling feet and the wrenches needed to tighten it. You can mount it on casters, on leveling feet or bolted to the floor, which matters if the rack lives in a room other than you.
The tradeoff is cosmetic and physical. An open frame shows every cable you run, offers no dust seal, and gives your gear nothing to hide behind. On the flip side, nothing obstructs airflow and sliding rails slide straight on without a door in the way.
Is it worth the 85 pound empty weight?
Owners consistently call this outstanding value per pound, and the weight is the point rather than a flaw. A frame that resists tipping is what lets you mount heavy gear high without worrying, and reviewers single out the cold-rolled steel and captive nuts as the reason it stays rigid after tightening.
If you want something you can roll through a doorway once a year, the casters handle it. If you want to bolt it down, the base plates accept lag bolts.
Who should skip it?
Skip this frame if your gear is light and your room is a bedroom. A full 42U frame is 80.3 inches tall with casters, and a filled half-height cabinet is a better fit for a closet or a study.
Skip it if dust is your main concern. Owners on r/homelab repeatedly say the practical reason to spend more on an enclosure is dust, not security, and an open frame does nothing for that.
2. NavePoint 12U Wall Mount Enclosure – Best Value Enclosed Wall Rack
NavePoint 12U Server Rack Enclosure with Glass Door, Cooling Fan, Locks, & Removable Side Panels – 12U Wall Mount Network Cabinet 19 Inch Rack 17.7″ Deep (450mm)
12U enclosed wall mount
17.7 inch deep
110 lb load rating
Glass door with security lock
Pros
- Welded cold rolled steel frame rated to 110 lb
- Lockable tempered glass front door
- Removable locking side panels
- Built-in fan plus flow-through ventilation
Cons
- 17.7 inch depth limits clearance for deeper servers
- Tight screw holes and threads on first assembly
- Included fan adds noticeable noise in quiet rooms
This is the rack we would put in a closet over a NAS, a router and a couple of switches. The 17.7 inch footprint is genuinely compact, the frame is welded cold rolled steel, and the front door is reinforced heat-treated tempered glass with a security lock.
That depth is the whole argument. Reviewers love the value for securing and organizing home network gear, and equally note that the rack is shallower than expected once a server is actually installed inside it. Measure your deepest chassis before ordering.
Side panels unscrew and lock as well, so you can open the unit for cable work without pulling the whole cabinet off the wall. Owners also call out the integrated fan and flow-through ventilation as a genuine improvement over a sealed box.
The glass door means you can check a blinking drive light without opening anything. If your room is acoustically sensitive, note that the fan is audible in a quiet space, which several buyers mention directly.
Will your server physically fit inside?
This is the question that decides this rack for you. At 17.7 inches overall you have less internal room than the number suggests, and owners who hit a snag installed deeper gear or found the fit tight once the equipment was in place. If your chassis measures more than about 15 inches deep, step up to a 24-inch cabinet.
If your gear is routers, patch panels, a small NAS or a UPS, the compact depth becomes an advantage instead. You gain a wall you can use elsewhere in the room.
How does assembly go?
Owners describe it as straightforward, with the main gripes being tight screw holes and threads during first assembly. Budget an extra pass with the manual and avoid forcing hardware into a cold thread.
The mounting footprint is 21.65 inches wide by 24.42 inches tall, so measure the wall space as well as the gear depth. A closet wall that clears the width but not the height leaves you with a rack on the floor.

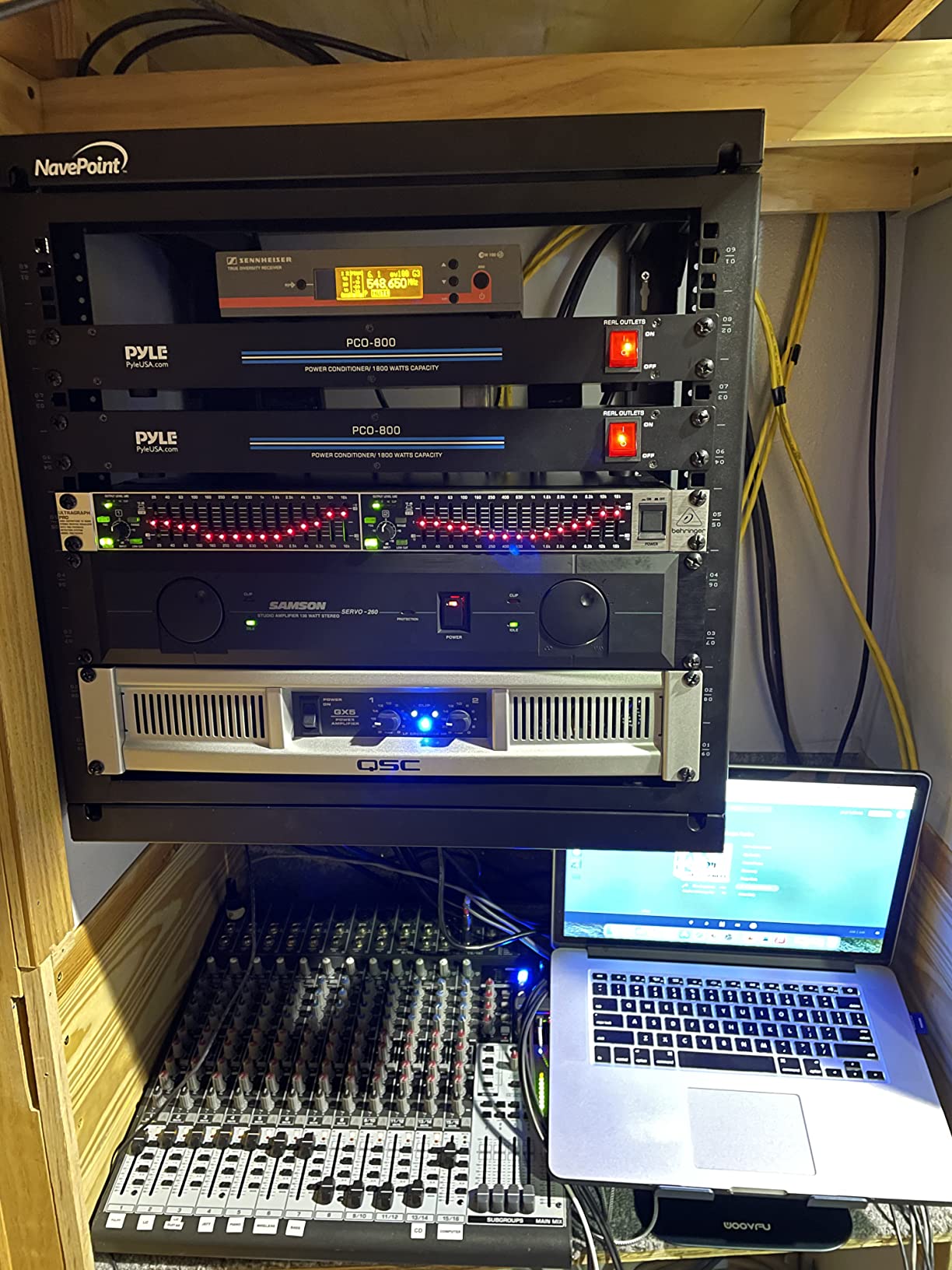

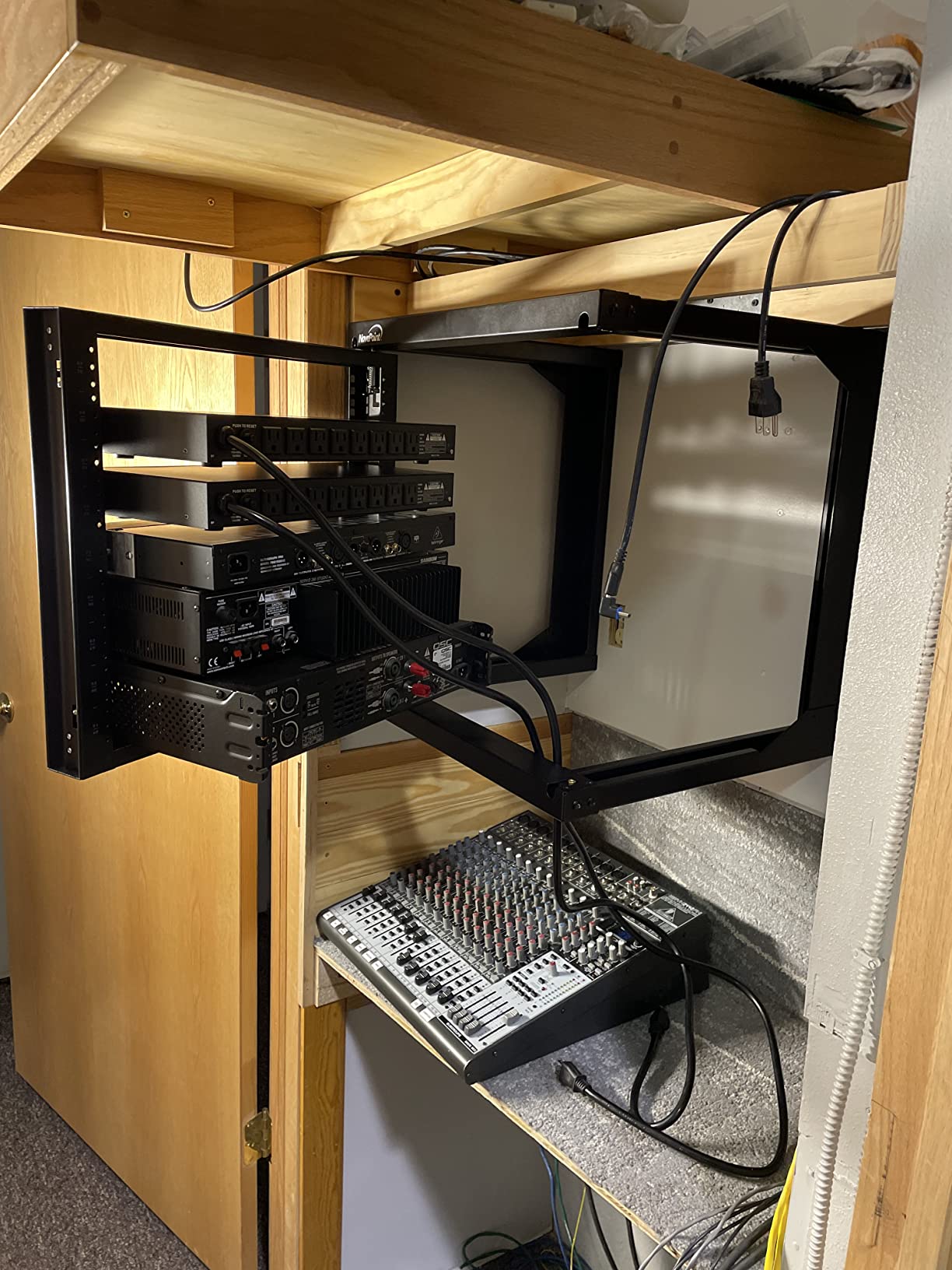

3. NavePoint 9U Open Frame Rack – Best for Tight Closets
NavePoint 9U Open-Frame Server Rack for 19″ IT Network Equipment & A/V Devices Free Standing or Wall Mount with 180 Degrees Gate Swing, Black
9U open frame
18 inch deep
55 lb max weight
Threaded and square holes
Pros
- Open frame promotes passive cooling
- 180 degree swing gate gives full rear access
- Threaded holes one side and square holes the other
- Compact footprint for closets and small server rooms
Cons
- 55 lb limit is modest for dense loads
- Some mounting hardware may need sourcing
- Light frame can flex under front-only loaded gear
Nine rack units is small, and that is the point. This frame measures 19.5 by 20 by 18 inches, so it fits the corner of a closet or a small server room where a 42U frame simply will not turn the corner.
Owners value the airflow and the reversible swing gate. The gate hinges 180 degrees from either side and removes completely for assembly or maintenance, so you can wire the back of a switch without contorting your arms.
The mixed hole pattern is a small detail that pays off later. One side carries threaded holes and the other universal square rack holes, which means you can use cage nuts for one device and direct screws for the next. That flexibility is why buyers keep coming back to it for small home and office installs.
What you give up is strength. At 55 pounds maximum, this is not a rack for dense loading, and owners report the frame flexing when heavy equipment mounts only on the front rails.
Is 55 pounds enough for a home lab?
Yes for a switch, a router, a small NAS and a UPS. No for a loaded two-post build or a rack full of 3U appliances. The rating is a genuine limit, and heavy front-only gear magnifies the flex owners describe, so distribute weight between the front and back rails where you can.
If you are adding gear over the next couple of years, the 12U and 15U frames in this list give you more room for the same footprint class.
Wall mount or floor standing?
The listing supports both, and reviewers like the versatility. A wall mount keeps a shallow closet usable, while the same unit on the floor is a small free-standing rack when wall space runs out.
Check your hardware before you commit. Some buyers note that a few mounting pieces need sourcing for the configuration they picked, which is a five-minute fix if you check first.
4. AxcessAbles 12U Open Frame Rack with Wheels – Best for Rolling Racks
AxcessAbles 12U Network Rack with Wheels – 500lb Capacity, 18″ Depth | 19-Inch Open Frame AV Rack Case with 3” Caster Wheels | Screws, Spacer, Tool Included
12U open frame
18 inch depth
500 lb load capacity
3 inch lockable casters
Pros
- 1.5mm steel frame with 500 lb capacity
- Preinstalled 3 inch lockable caster wheels
- Screws blank spacer and tool included
- Works for AV and IT gear
Cons
- 18 inch depth can be shallow for deeper servers
- No doors or side panels so no dust seal
- Basic styling versus enclosed cabinets
Rolling racks get undervalued until you try to move a loaded one. This 12U frame arrives with preinstalled 3 inch lockable industrial casters, which means you roll it into position, lock the wheels and start mounting instead of dragging it across the floor.
The 1.5mm steel frame supports 500 to 550 pounds, and buyers in home studios and small IT setups rate it highly for a rugged, mobile open frame that handles serious weight for the money.
The kit is generous. You get 34 rack screws in both 5mm and 6mm, a 1U blank spacer and an assembly tool, which is the difference between a 30 minute build and an hour of hunting for hardware.
It is also an AV rack in practice. Universal 19 inch compatibility covers pro audio, video, IT and network gear, so a studio rack and a small server rack can share the same frame.
Is the depth a problem for servers?
Eighteen inches of depth is the most common complaint, and it is a fair one for anything deeper than a network switch or a compact NAS. It is generous for AV receivers, patch bays and studio outboard gear, which is exactly the segment this frame was built for.
If your gear runs deeper than about 16 inches, look at the 22 to 34 inch adjustable frame further down this list instead.
What do you lose with no enclosure?
No dust seal, no lock, and no visual tidiness. Owners happily accept that because an open frame never blocks airflow and a lockable door would defeat the point of a mobile rack. Just expect to see the cables.
The casters are lockable, which solves the stability question. Engaged wheels keep the rack from creeping when you are sliding a server in on rails.
5. Tecmojo 12U Open Frame Network Rack – Best for Home Labs
Tecmojo 12U Open Frame Network Rack for IT & AV Gear, AV Rack Floor Standing or Wall Mounted,with 2 PCS 1U Rack Shelves & Mounting Hardware,Network Rack for 19″ Networking,Audio and Video Device
12U open frame
20.15 inch deep
130 lb wall or 260 lb floor
Two ventilated shelves included
Pros
- Holds a full NAS PoE switch and UPS stack
- Two ventilated shelves and velcro straps in the box
- Works floor standing or wall mounted
- Drilling template and assembly video included
Cons
- Usable space is closer to 10U than 12U
- Some screw holes do not line up perfectly
- Only partially cage-nut compatible
- Threads and bolts can arrive coated in paint
This is the frame reviewers most often describe as one of the best value homelab racks they have used. It holds a full stack of a NAS, a PoE switch and a UPS without complaint, and the two ventilated 1U shelves plus velcro straps are in the box rather than in a separate order.
Load rating changes with mounting method, which is unusually honest. Wall mounted it handles 130 pounds, floor mounted up to 260 pounds, so the same frame covers both a hallway closet and a small office closet.
Two details make assembly easier than they should be for a flat-pack: a mounting hole drilling template and an online assembly video. Owners who hit tight spots during the build usually found the template saved the job.
The top panel and anti-slip shelf stops keep small gear from sliding, and the design is stackable if your project grows past one unit.
Is the 12U label accurate?
Not exactly, and this is the most repeated caveat in the reviews. Cross supports at the top and bottom reduce usable space to roughly 10U. Plan for 10U of gear in a 12U frame, which is not a problem unless you are counting on a specific device fitting at a specific U.
The hole pattern is also less consistent than the photos suggest. Some screw holes do not line up perfectly, and cage nut compatibility is only partial, so tapped holes need direct screwing and unscrewing.
What quality issues should I expect?
Threads and bolts can arrive coated in paint, which occasionally requires a thread chaser during assembly. It is a five-minute annoyance, not a defect, but it is worth knowing before you start with a specific evening planned.
Against that, the frame itself is solid cold rolled steel and owners consistently call it sturdy for the price, which is the trade most buyers are happy to make.
6. Tecmojo 6U Wall Mount Cabinet – Most Versatile for Network Closets
Tecmojo 6U Wall Mount Server Cabinet IT Network Rack Enclosure Lockable Door and Side Panels Black, Cooling Fan, Standard Glass Door, 450mm Depth, for 19” IT Equipment, A/V Devices
6U enclosed wall mount
14.2 inch usable depth
110 lb load rating
PCI HIPAA and EIA compliant
Pros
- Accurately machined parts that assemble cleanly
- Lockable glass door and side panels
- Quiet fan with a cutout for a second fan
- Can be assembled while mounted on the wall
Cons
- Only about 14.25 inches of usable depth
- No rear cutouts for power and cabling
- Included cage nuts and screws are smaller than M6
- Occasionally arrives with bent or dented panels
Six U is enough for a router, a switch, a patch panel, a DVR and a UPS, which covers the networking closet of most homes. At 13.78 by 21.65 by 17.72 inches it disappears into a hallway or a small office, and it costs less than dinner out.
Owners treat it as a strong budget wall mount and single out the machining. Parts are accurately aligned, the fully adjustable rails carry numbered U positions, and the side latches work without a key.
It is also one of the few wall cabinets you can assemble while it is already on the wall, which matters if you are working solo. The front door installs on either side, so you can choose the swing that matches your room.
Perforated panels and a quiet cooling fan keep airflow reasonable, and there is a cutout for a second fan if your gear runs warm. The fan is thick enough to occupy a rack slot, so count it in your 6U.
Will my equipment clear the usable depth?
This is the deciding question. Maximum mounting depth is 14.2 inches and reviewers put the real figure at about 14.25 inches, which is shallow for a server chassis but fine for network gear. If you plan to install a NAS deeper than 13 inches, keep looking.
There are no rear cutouts for power outlets or cabling, so plan on drilling the back panel or routing around the cabinet. Owners who discovered this after install report it as the main frustration.
Anything else to check before ordering?
The included cage nuts and screws are smaller than standard M6, so buy your own M6 hardware if you want a consistent fit. A few buyers also report bent or dented panels arriving, which is a shipping issue rather than a build issue.
Compliance marks are genuinely listed here, including PCI, HIPAA and EIA/ECA-310-E, which matters more than it sounds if the cabinet is going into a shared or customer-facing space.

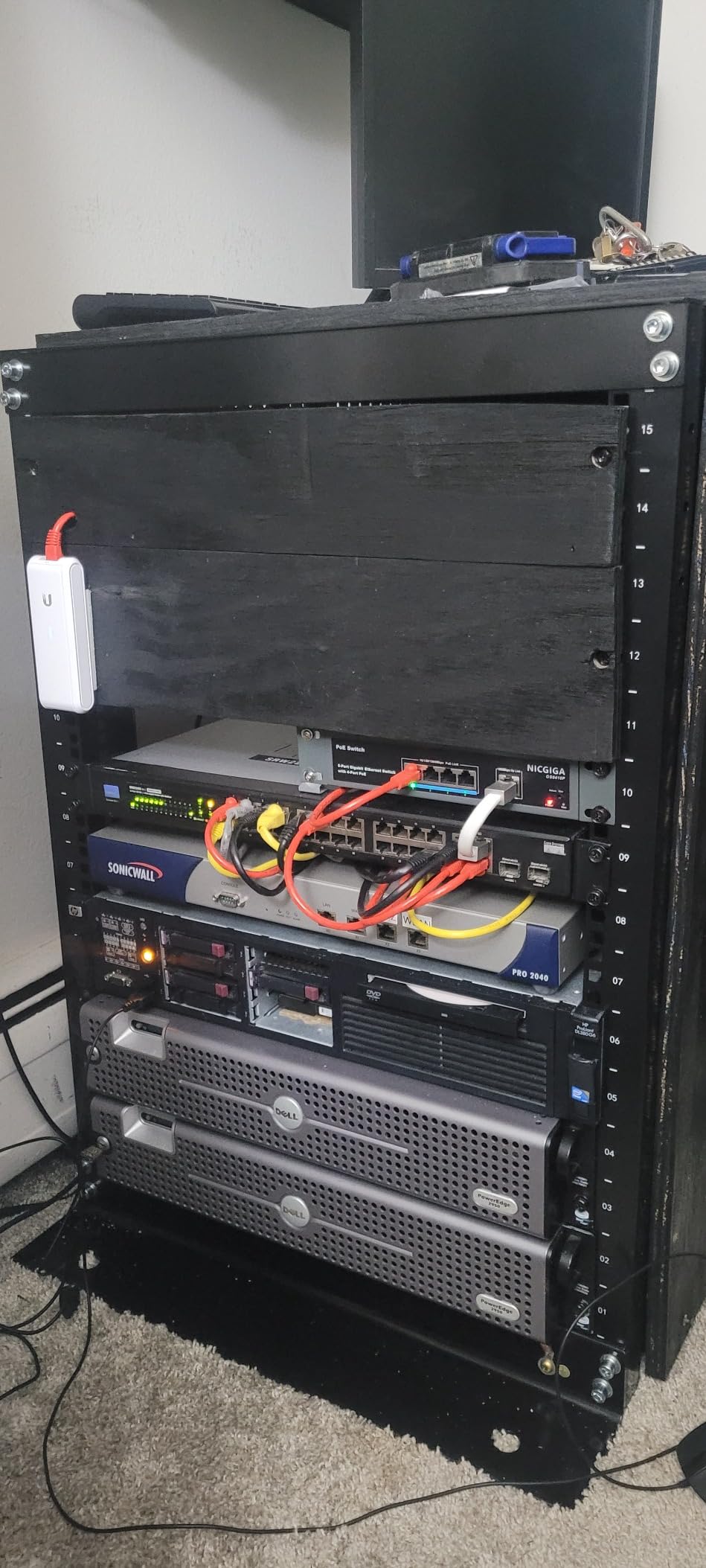

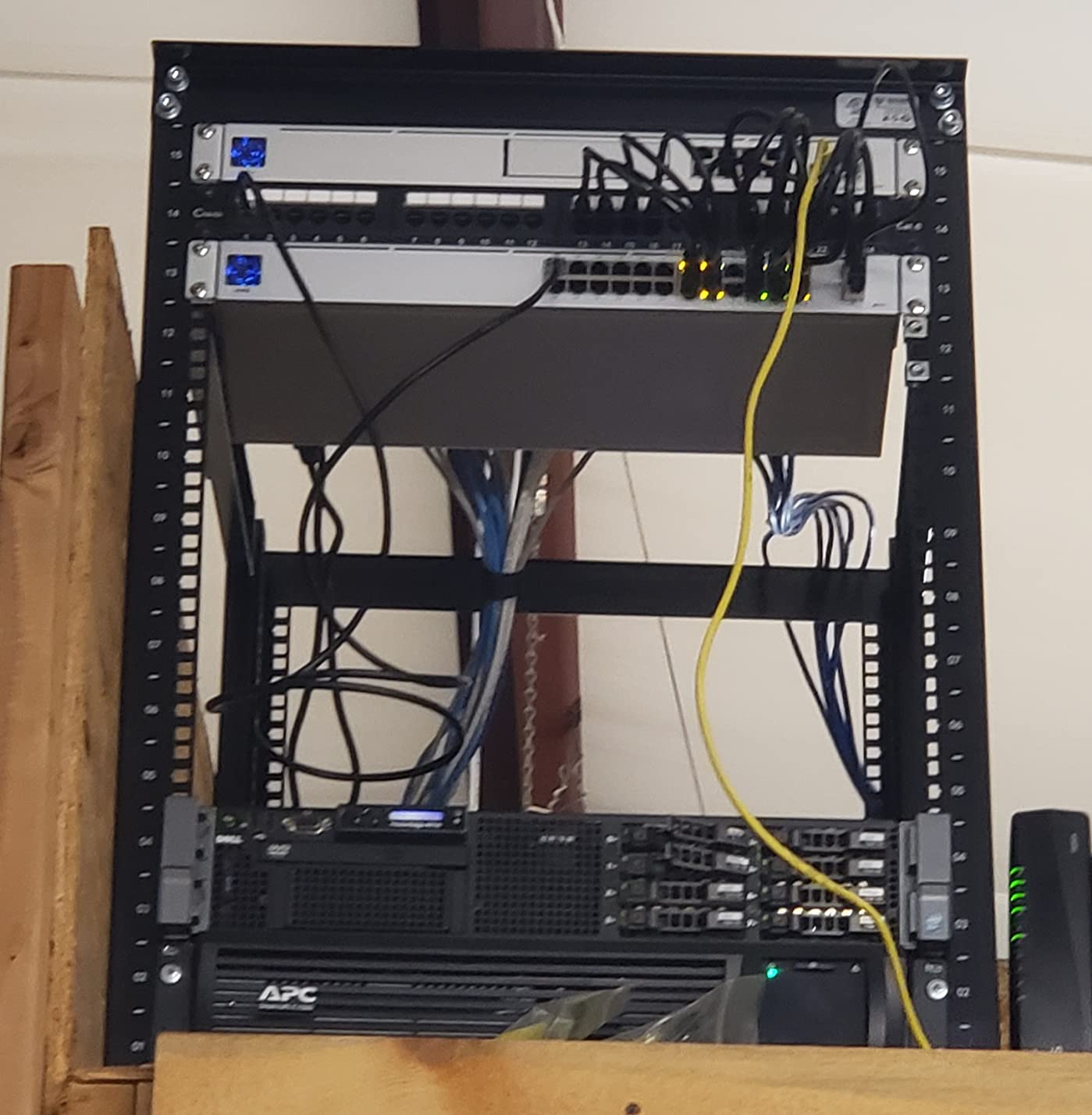

7. Raising Electronics 15U 4-Post Open Frame Rack – Best for Solo Builders
Raising Electronics Server Rack 4 Post Open Rack Frame Rack Enclosure 19 Inch Adjustable Depth Cold Rolled Steel（15U,36 Inch Height）
15U open frame
22 to 34 inch depth
400 lb capacity
Assembled size 32 by 21 by 31 inch
Pros
- Single-person assembly in roughly 15 to 45 minutes
- Adjustable depth covers shallow and deep gear
- Clear RU markings on front and rear rails
- Plenty of M6 screws and cage nuts included
Cons
- Aluminum posts flex under heavy front-only loads
- Included rack nuts are low quality and can rotate
- No written instructions
- Can lean side to side when empty
This is the frame to buy if you are building alone on a carpeted floor at midnight. Owners report assembling it solo in 15 to 45 minutes, which no other 4-post frame in this list manages, and they describe it as near data center grade for the money.
Adjustable depth runs 22 to 34 inches post to post, so shallow network gear and a deeper server share the frame. Clear RU markings on both front and rear rails save you from counting holes one by one.
Square screw holes, M6 screws and cage nuts all arrive in the box, with owners noting more than enough hardware for the first several devices. Base plates accept lag bolts into concrete or caster wheels, so you can secure it properly rather than hoping it stays put.
It is a 15U unit at 32 inches tall, which is a useful middle size. It is small enough for a closet and large enough to grow into.
How much flex is too much flex?
The frame is aluminum, and the two recurring cautions are the same: the front rails visibly deflect under heavy front-only mounted gear, and the unit can lean side to side while empty. Owners who distribute weight across the rails and bolt the base to the floor report neither issue.
That is a real constraint. If your plan is a heavy 2U or 3U appliance mounted on the front rails only, budget for a steel frame instead.
What should I bring to the build?
Bring patience and a marker. There are no written instructions, so the build is figure-it-out oriented, and the included rack nuts are low quality, which reviewers say can rotate or fall out under heavy equipment. Buy a pack of M6 cage nuts before you start.
On a flat surface, bolted down, this is a stable, well-balanced frame. On carpet with a heavy front load, it is not.

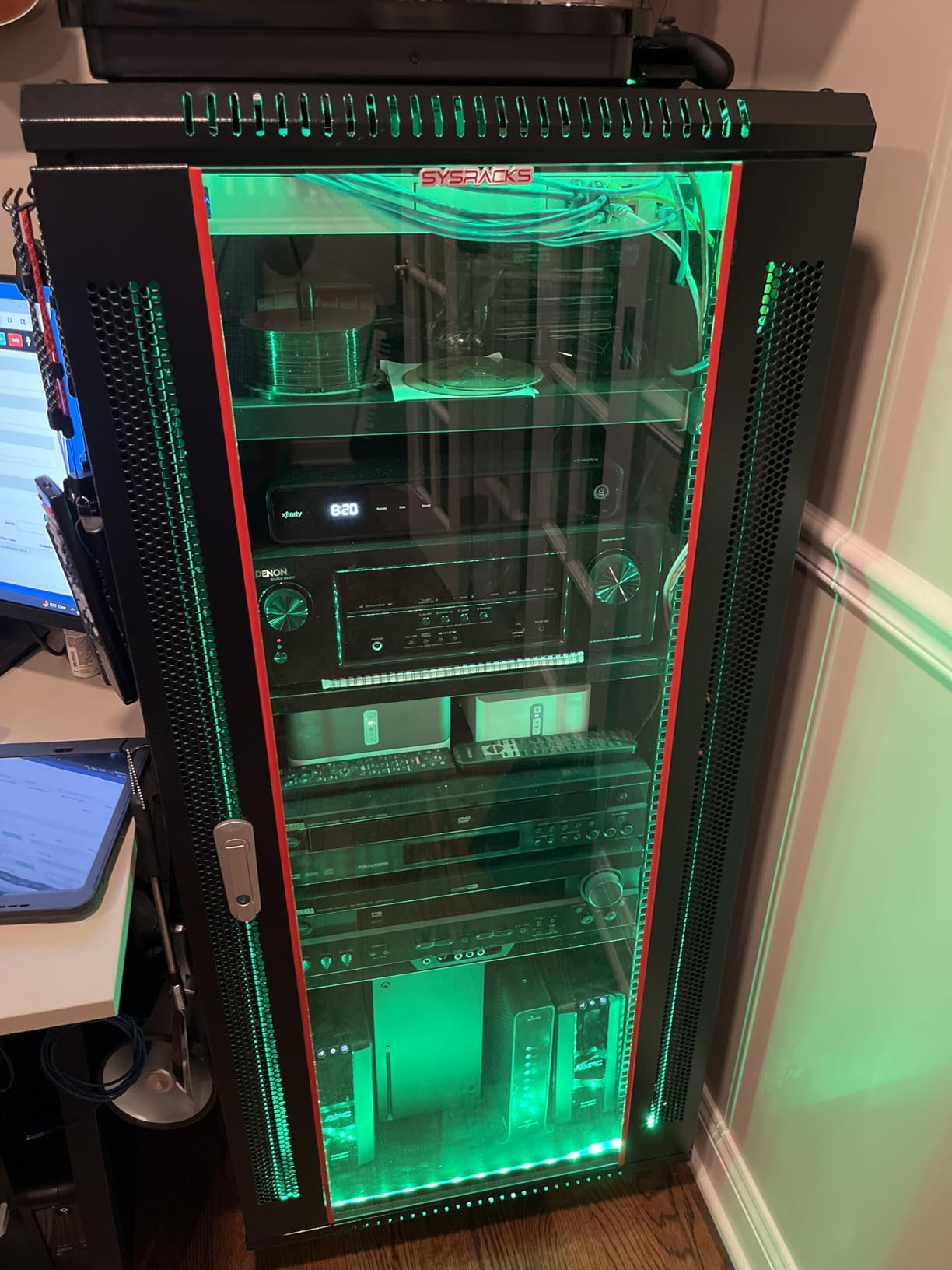

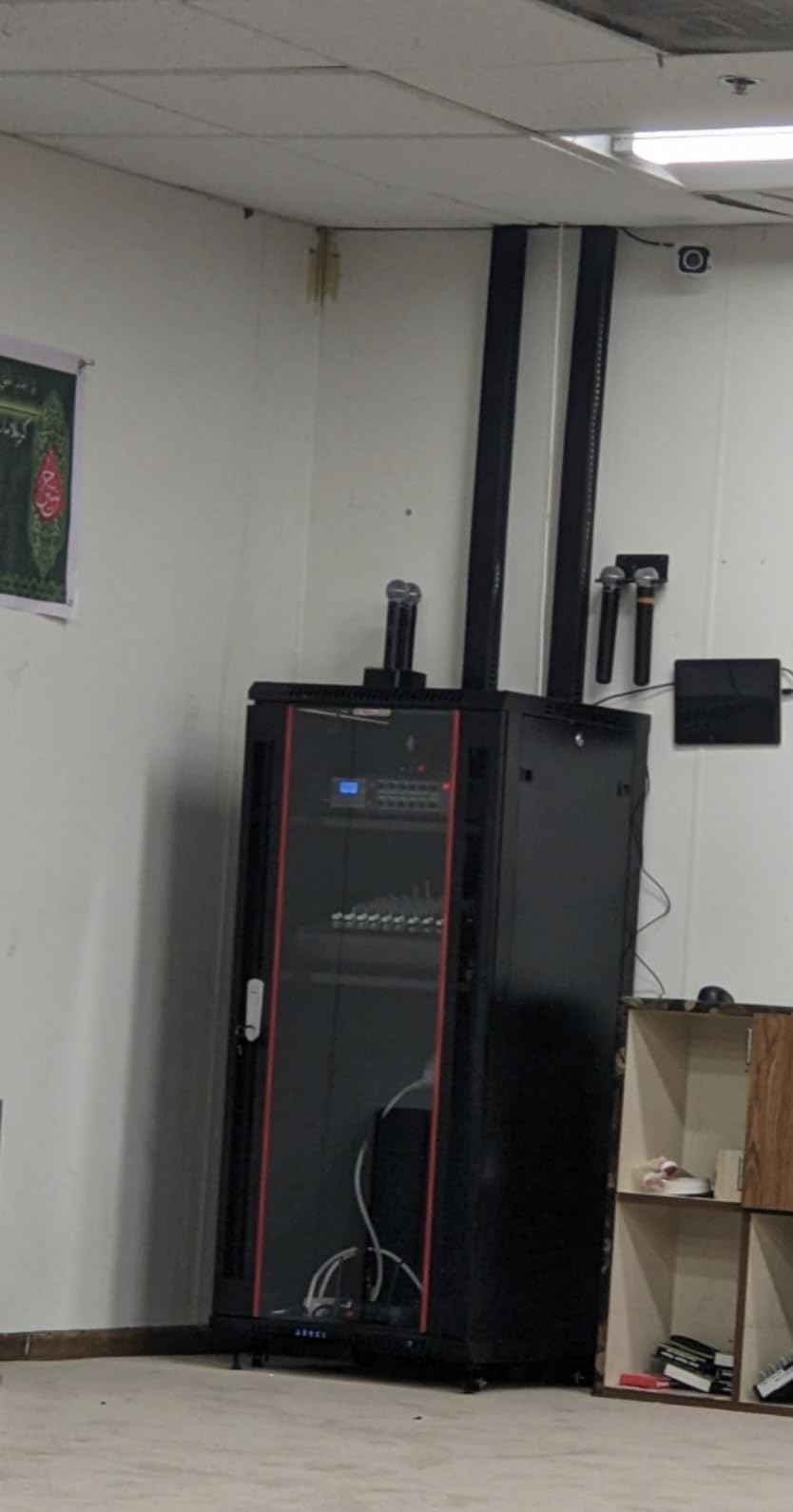

8. Sysracks 18U Wall Mount Cabinet – Best Complete Kit
18U Wall Mount Server Rack Cabinet for Home Lab, Office IT and AV Network Installations, 24-Inch Deep 19-Inch Locking Rack with Fan, PDU and Shelves
18U wall mount
20 inch usable depth
133 lb on a solid wall
PDU two shelves and fan included
Pros
- 24 inch body with 20 inch usable depth
- PDU shelves fan and brush cable panels included
- Locking perforated glass door with removable sides
- Wall mount frees floor space
Cons
- Heaviest wall cabinet in this set at 75 pounds
- Wall load must be confirmed before hanging a loaded unit
- Integrated top fan can impinge on the top rack slot
Depth is the headline here. At 24 inches overall with 20 inches usable, this is the first wall cabinet in the list that comfortably swallows a larger NAS, a PoE switch and AV components without a fight. Reviewers consistently point to the depth as the reason it works for real gear.
It is also the most complete kit. You get a PDU, two fixed shelves, an integrated top fan, brush cable entry panels and the mounting hardware, so there is no second shopping trip before the first screw goes in.
The perforated tempered glass door is lockable and the side panels remove, which gives you a balance of security and airflow. Brush cable entries keep the rear tidy, which is the detail that matters most once the build is finished.
At 24 by 24 by 37 inches, this is a substantial object on a wall. Owners love the feature set and note that weight during mounting, rather than build quality, is the drawback.
Will my wall hold it?
Confirm the wall before you buy, because 133 pounds is the rating against a solid wall structure. That covers a normal load with a full stack, but a hollow partition wall needs a stud or a plywood backer installed first.
Get a second person for the lift. At 75 pounds empty, this is the heaviest wall cabinet here and one person mounting it alone is asking for a dropped cabinet or a strained back.
What about the fan and the PDU?
The integrated top fan provides active ventilation but can impinge on the top rack slot, so count that space in your 18U plan. If your gear is hot, plan around the occupied slot rather than discovering it during mounting.
The included PDU removes one common compatibility question entirely. Note that a surge-protected strip behaves differently from a plain one, so know what you are pairing with a UPS before you rely on it for backup power.
9. StarTech 22U 4-Post Rack Cabinet – Best for Heavy Loads
StarTech 22U 4-Post Server Cabinet, 33in/83cm Deep, 1764lb (RK2236BKF)
22U enclosed cabinet
5.7 to 33 inch adjustable depth
1764 lb (800kg) static load
Lifetime warranty
Pros
- Tight assembly tolerances with no missing hardware
- 1764 lb capacity far beyond cheaper cabinets
- Enclosure reduces fan noise and accepts acoustic damping
- Brush cable entries and lockable removable doors
Cons
- Very heavy and effectively a two-person job
- Rails arrive preset near 16 inch depth
- Non-standard S-shaped rail profile can need modification
- Customer service criticized over missing parts
This is the only enclosure in the list rated to 800 kilograms, and it is the only one that also works as a noise control box. Owners who compare it against enterprise cabinets find the build quality far better than the price implies, with near mil-spec assembly tolerances and no missing hardware.
At 46.6 inches tall it is a half-height design, which suits a home or small office server room better than a full 42U cabinet. Mounting depth adjusts from 5.7 to 33 inches, so it can host a NAS or a full server.
Two features separate it from the cheaper cabinets. The enclosure measurably reduces fan noise, and owners note you can line it with acoustic damping material for a shared room. The brush cable entry panels keep wiring tidy and hide it from view.
It arrives flat-packed rather than assembled, and it is packed well enough to survive rough handling, which matters for an item weighing 62.6 kilograms.
What does the 1764 pound rating actually mean?
It is a stationary rating. It applies with the cabinet on its leveling feet or bolted in place, not rolling it around a room while loaded. The distinction matters more here than on lighter cabinets because people assume a number that large means anything goes.
It also assumes the weight is distributed across the rails rather than hung off a handful of front holes on one device.
What setup issues should I expect?
Two real ones. The mounting rails arrive preset to about 16 inches rather than the 30 inch server depth most people assume, and the S-shaped rail profile can require modification for some Dell rails. Both are fixable, neither is a surprise if you read this first.
The base panel inserts are also thin and do not fit the supplied screws well. And this is where the lower ratings come from: owners report poor support when parts are missing, so keep the model number handy before you contact anyone.

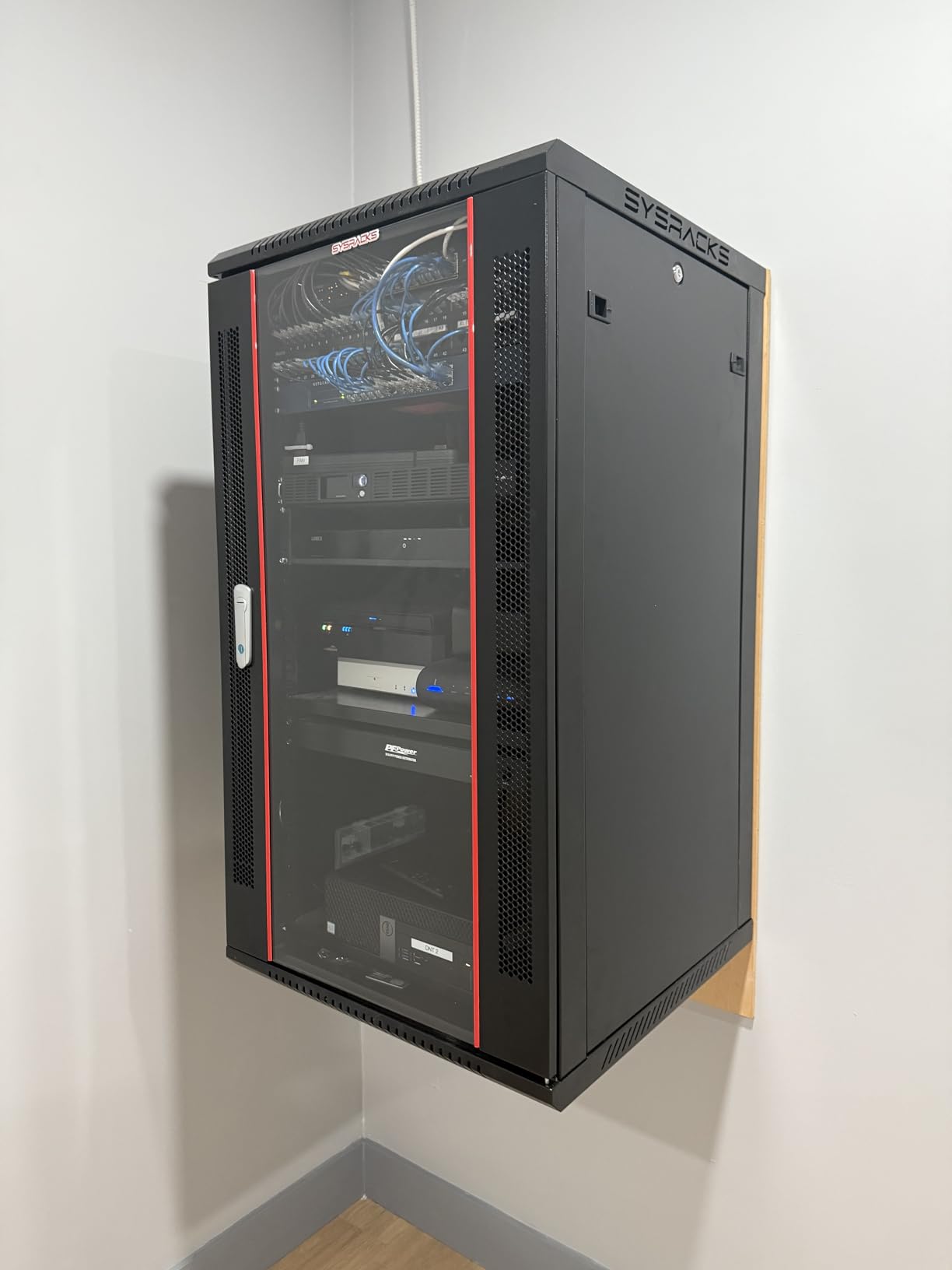

10. Sysracks 15U 24 Inch Deep Cabinet – Best for AV and Network Gear
15U Wall Mount Server Rack Cabinet 24” Deep, 19” Network & AV Enclosure for Home Lab with Fan, PDU, 2 Shelves, Locking Glass Door
15U wall mount or free standing
20 inch usable depth
200 lb on leveling feet
PDU two shelves and fan included
Pros
- PDU shelves fan and mounting hardware all included
- Locked front door feels solid rather than light
- 24 inch depth holds switches gateways and AV gear
- Well packaged with labeled hardware and a video manual
Cons
- Can come out of square and affect door fit
- Instructions and hardware bags can be mismatched
- Top fan vibrates and impinges on the top slot
- Included PDU is surge protected
This cabinet splits the difference between the two Sysracks options. It is smaller than the 18U model and cheaper, and it keeps the 24 inch overall depth with 20 inches usable, which is the number that decides whether your equipment fits.
Small organizations deploying several units report a good experience, which is a stronger signal than a single owner review. They single out build quality, the deep usable depth, the strong locking door and an unusually complete accessory package for the money.
It is also flexible about placement. Wall mounted it handles 133 pounds, on leveling feet up to 200 pounds, so you can start on a wall and move it to the floor later without changing cabinets.
Hardware arrives in labeled bags with an instruction manual and video access, which is better documentation than most cabinets in this category provide.
Is the door lock worth relying on?
Yes, and buyers make a point of it. The locked front door is described as solid and substantial rather than a light latch, and with removable side panels the cabinet protects gear and limits casual access at the same time.
If the cabinet arrives out of square, the glass door can be hard to fit or close. Check squareness during assembly, because it is easier to correct before the equipment goes in.
What should I know about the extras?
The top fan provides active cooling and can vibrate enough to become loud, and it sits where it can impinge on the top rack slot. Count that space in your layout before you order shelves.
The included PDU is surge protected, which you should know before pairing it with a UPS, since a protected strip and a UPS are two different pieces of the power path. Assembly instructions and hardware bags do not always line up, so check the parts list as you go.

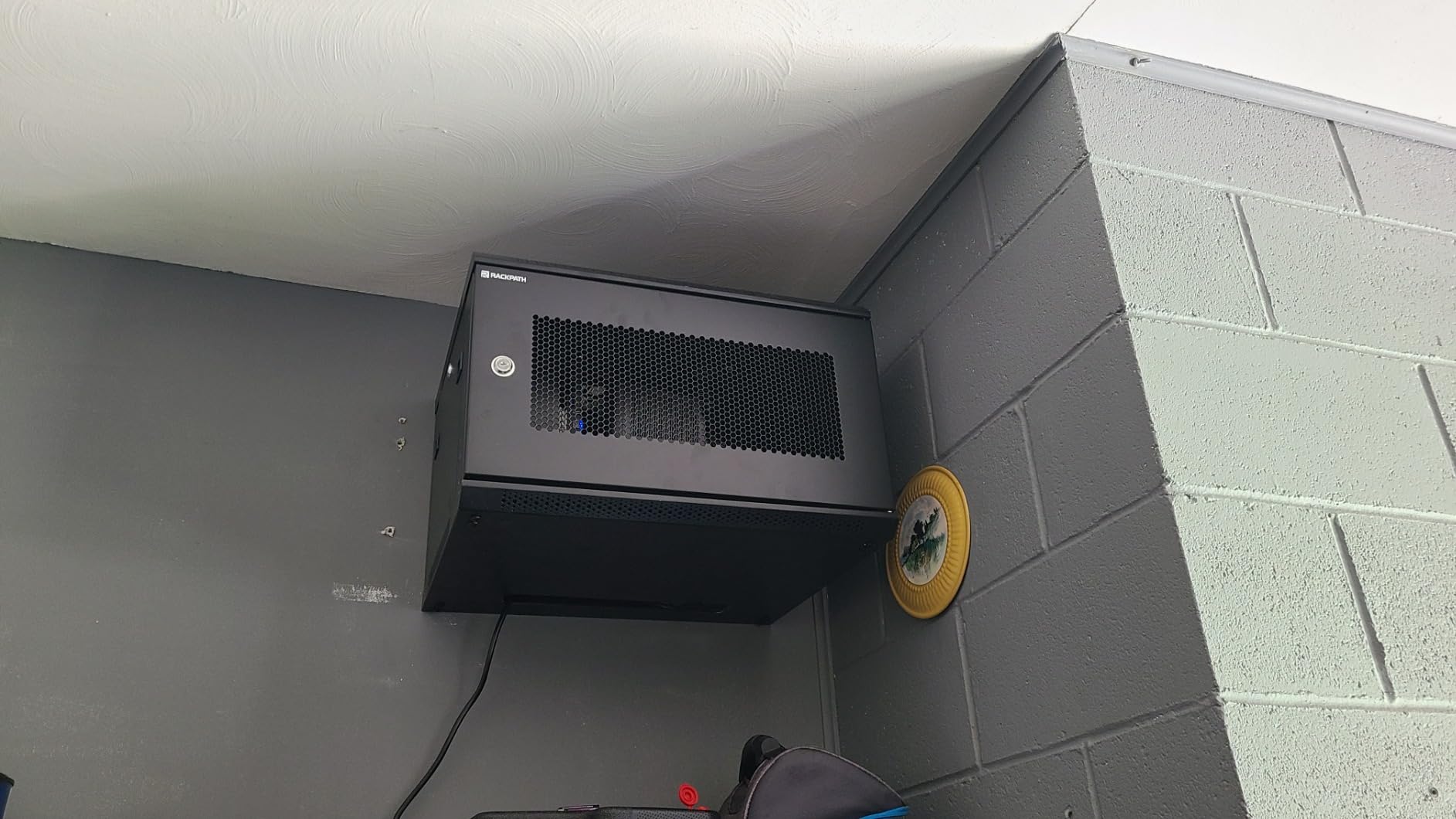

11. RackPath 12U Wall Mount Cabinet – Best for Quiet Rooms
RackPath 12U Wall Mount Server Cabinet Network Rack Enclosure, Quiet Cooling Fan, Perforated Door, Black
12U enclosed wall mount
14.6 inch usable depth
110 lb load rating
One quiet cooling fan included
Pros
- Substantial sheet metal that does not flex
- Holes align cleanly during assembly
- Wall holes match 16 inch stud spacing
- Extra screws and two roof fan mounts included
Cons
- Locks and keys are flimsy and shared between units
- Cage nut corner assembly can leave it out of square
- Shelves not included
- No feet or casters so it sits flat
The differentiator here is the fan. It is sold as a quiet cooling fan, and in a bedroom or an office where a louder top-mounted fan would be noticed, that is a legitimate reason to choose one cabinet over another with the same 110 pound rating.
Owners also call out the sheet metal as substantial, with no flex, and note that holes line up correctly during assembly. Those are small things that decide whether a build goes smoothly.
Wall mounting holes are spaced 16 inches center to center to match standard framing, which removes the most common reason a wall mount fails on the first attempt. Fully adjustable rails use square holes, and removable top and bottom panels give you cable routes.
Usable mounting depth is 14.6 inches, a little more than the 6U wall cabinet in this list, and there is a non-glass door option if you want to reduce weight and breakage risk.
How good are the locks?
They are the weak point. Owners report flimsy locks with keys shared between units, and locks that need bending to engage and can rub against the case. Treat the lock as deterrence for casual access rather than security, and check the key before you mount it.
Because the cabinet is assembled with cage nuts at the corners, some units go out of square once hung, and the reduced rigidity on a wall is the other recurring complaint.
What is not included?
Shelves are not included and must be bought separately, which is worth factoring into your plan if you are mounting anything that is not a full rack device. There are also no feet or casters, so the cabinet sits flat on a surface or hangs on a wall.
Two roof fan mounts are provided even though only one fan is included, so adding a second is straightforward if your gear runs warm.

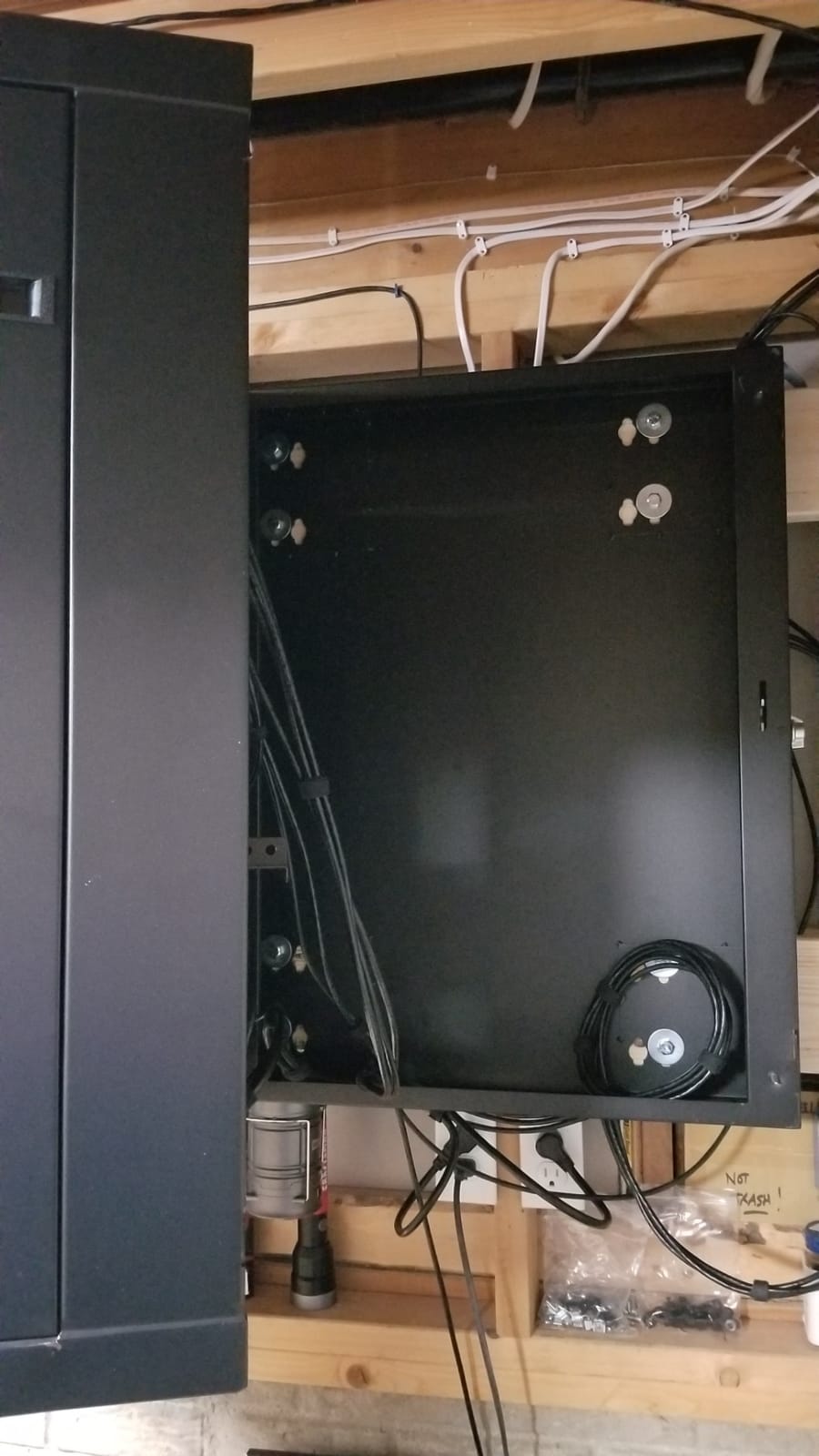

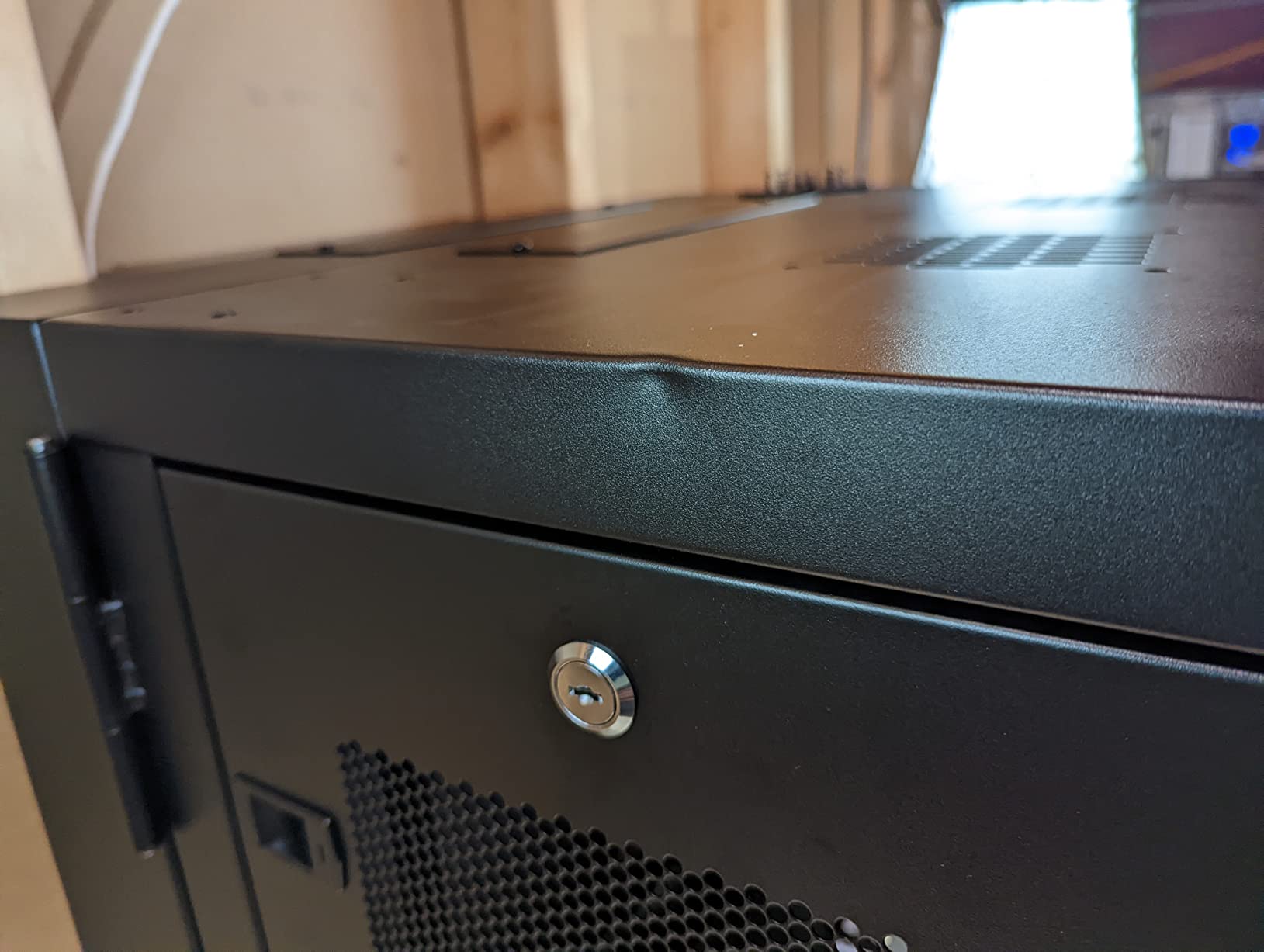

12. StarTech 12U Wall Mount 4-Post Cabinet – Best for Zero Assembly
StarTech 12U Wall-Mount Cabinet, 19in, 4-Post, 16in Deep, 198lb (RK12WALHM)
12U enclosed wall mount
2.4 to 16 inch adjustable depth
198 lb (90kg) load rating
Arrives fully assembled
Pros
- Arrives ready to rack with no build time
- 4-post design supports equipment better than 2-post racks
- Mesh doors and panels for strong passive cooling
- Includes 48 cage nuts 48 screws a shelf and fasteners
Cons
- Adjustable depth capped at 16 inches
- Heavy unit to lift onto a wall
- No fans included for active cooling
This is the highest rated cabinet in the group, and the reason is simple: it arrives fully assembled. Owners note it is ready to rack, feels solidly built and cools well through the mesh panels, with no assembly errors to troubleshoot on a wall.
The 4-post design is the second reason. A four-post frame supports both front and rear mounting points, so equipment with sliding rails sits square and does not flex, which reviewers consistently notice versus two-post wall racks.
The hardware kit is generous for a cabinet that ships assembled. You get 48 cage nuts, 48 screws, a 1U shelf and a roll of hook-and-loop fastener, so the small things you normally order separately are already handled.
The reversible, removable front door swings 180 degrees for rear access, and mesh front doors and side panels give strong passive airflow without a fan.
What is the depth ceiling?
Sixteen inches, and that is the main trade-off buyers mention. Mounting depth adjusts from 2.4 to 16 inches, which covers switches, patch panels and rackmount gear but will not accept a deep server chassis. Measure before you commit, especially if this is replacing a shallower cabinet.
If depth is your binding constraint, the 24 inch deep wall cabinets in this list are the ones to look at instead.
Does it need fans?
Only if your gear demands it. The mesh panels move enough air passively for typical network loads, and the cabinet supports up to four optional 120mm fan kits if you need active cooling later. Nothing is included, so treat that as a follow-up purchase rather than a gap.
At 28.9 kilograms it needs care on the wall. Plan the lift with a second person, and confirm the studs before you start.
How to Choose the Right Server Rack in 2026
How many rack units do you actually need?
Count the rack units your equipment occupies, then add 20 to 30 percent headroom. A 1U device is 1.75 inches (44.45 mm) tall, and nominal height overstates usable space because top and bottom cross supports take their cut. A frame advertised as 12U may only offer about 10U of clear mounting, which is the single most common sizing surprise in owner reviews.
Work from a list: switch, patch panels, router, NAS, UPS, one blank panel per gap. Then add the headroom and round up to the next rack size.
Depth is where most buyers go wrong
There is no single standard depth for a 42U rack, and the products in this category span roughly 300mm to 1200mm. Buy on usable mounting depth rather than overall depth, and remember that everything behind the chassis needs room: power inlets, cable bend radius, patch leads and airflow behind a perforated door.
Experts recommend buying the rack deeper than your gear for exactly this reason. Buying the rack wider than your server is the same logic sideways, because it gives you a hand to reach behind the equipment instead of a wall.
Community advice in r/homelab also warns against 36 inch deep racks for home use, since most home gear is far shallower and you pay for depth you never use.
Static load and rolling load are not the same number
A load rating on a cabinet or frame is almost always a stationary figure. A 1764 pound rating means the cabinet can hold that weight when it is on its leveling feet or bolted in place, not while you roll it across a room with a server drawer extended. Rolling racks need to be treated as a separate, lower number even when the listing does not print one.
Check what the rating assumes. Wall-mounted cabinets often print two numbers, one for wall mounting and a higher one for floor standing on leveling feet, because the wall structure supports less than the floor does.
Open frame or enclosed cabinet?
Open frames are cheaper, depth adjustable and never block airflow. They also leave gear exposed to dust, contact and view, and they offer no lock. Enclosed cabinets add side panels and lockable perforated doors, which is why owners on r/homelab cite dust, not security, as the practical reason to pay more.
Noise is the other dividing line. An enclosure measurably reduces fan noise, and it can be lined with acoustic damping material, which matters in a room you work in rather than a closet you close.
Wall mount or floor standing?
Wall mount is the right answer when floor space is the constraint, which is usually a closet, a small server room or a home office where the rack would otherwise block a door. Confirm the wall is solid and check the stud spacing, since several cabinets print hole spacing to match standard framing.
Floor standing wins when you want to move gear, add a second rack later or load the frame with heavy equipment. Rolling racks on lockable casters give you flexibility, and reviewers value adjustable mounting depth on rolling frames.
Square-hole and threaded-hole rails
These are the two hole standards, and mixing them is a common accessory trap. Square holes accept cage nuts, and most modern IT gear mounts on square holes. Threaded holes take screws directly, and many AV and pro audio devices are built for them.
The best outcome is a rack with both, which is why the 9U NavePoint frame, with threaded holes on one gate side and universal square holes on the other, is unusually flexible. Check the hole type before you buy accessories, because cage nuts will not thread into a square hole.
Knock-down flat-pack or fully assembled
Knock-down or flat-pack racks arrive as parts and save shipping volume, but they cost you an afternoon and sometimes a second person. Owners of the 42U frame in this list call for two people on a full height build.
Fully assembled cabinets cost more to ship and are heavy to lift onto a wall, but they remove assembly errors entirely. The StarTech 12U wall cabinet is the clearest example, and its 4.8 rating reflects how much buyers value getting a ready-to-rack unit.
Does AV grade mean anything?
It means something specific: an AV cabinet is usually shallower, with a glass front door and shallower mounting depth to suit amplifiers, receivers and mixers, while an IT cabinet is built around deeper steel perforated doors for server airflow. r/homelab threads ask this question constantly because the terminology is genuinely unclear on listings.
Use it as a shorthand for depth and door type, not as a quality grade. A shallow AV cabinet in a server rack usually means your chassis does not fit.
Rack or rack-and-stack?
If you are running one or two pieces of gear, a rack-and-stack shelf puts both on a shelf with the shelf in a 4 or 5U footprint. It is cheaper, shallower and easier to move. The trade is that you lose the ability to expand, and the equipment is harder to reach on the back.
Once you add a switch, a patch panel and a UPS, a real rack is faster for every cable you plug. We covered the same trade-off for floor space in our [best bike storage racks](https://www.mineralwaters.org/best-bike-storage-racks/) guide, where footprint matters just as much.
Frequently Asked Questions
How much does a full server rack cost?
Cost tracks the enclosure type and the U height. Open frames for home labs sit at the low end, enclosed wall cabinets for closets sit in the middle, and heavy-duty 22U and 42U cabinets with locking doors and acoustic construction sit at the top. The gap between the cheapest frame and the most capable cabinet is larger than most buyers expect, which is why matching the rack to the room matters more than the spec sheet.
What is the maximum load capacity of a 42U rack?
A 42U 4-post open frame is commonly rated around 1320 pounds (600kg) stationary, and heavy 22U cabinets are rated as high as 1764 pounds (800kg). Those are stationary figures on leveling feet or bolted down, not rolling loads. Smaller wall-mount cabinets are rated far lower, often 110 to 200 pounds, and the wall itself must be rated too.
How to choose server rack size?
Measure your available space, measure your deepest piece of equipment, count the rack units your gear occupies, add 20 to 30 percent headroom, then choose the enclosure type that suits the room. Buying on usable mounting depth rather than overall depth prevents the most common mistake. Wall mount for tight rooms, open frame for airflow and budget, enclosure for dust and noise.
What is the standard depth of a 42U server rack?
There is no single standard. Depth ranges from roughly 300mm to 1200mm across the market, and adjustable-depth frames typically span something like 22 to 40 inches. Check the usable mounting depth rather than the overall number, because a 44 inch cabinet may only offer 40 inches inside. Deep racks suit servers, shallow racks suit network gear.
What is the difference between an open frame and an enclosed rack?
An open frame has no side panels and no doors, so it is cheaper, never blocks airflow and adjusts depth easily, but your gear is exposed to dust, contact and view. An enclosed cabinet adds side panels and lockable perforated doors, which reduces noise, limits dust and adds security at a higher cost and higher weight. Buyers cite dust as the practical reason to choose an enclosure.
Do I need a server rack or can I use a shelf?
A shelf, or rack-and-stack, works well for one or two devices and saves floor space and money. It becomes awkward once you add a switch, a patch panel and a UPS, because the gear stacks rather than mounts and rear access gets harder. If you expect to add more than two pieces of 19 inch gear, a rack is the faster choice for every cable you plug.
The Best Server Racks to Buy in 2026
The best server racks for most people fall into three groups. For a home lab that will grow, the StarTech 42U 4-Post Open Frame wins on a 1320 pound rating, adjustable 22 to 40 inch depth and the most complete hardware kit in the roundup. For a closet that needs to stay tidy and quiet, the NavePoint 12U wall enclosure gives you a locking glass door and a fan at a 17.7 inch footprint. For a tight corner where nothing else fits, the NavePoint 9U open frame at 19.5 by 20 by 18 inches is the practical answer.
Two numbers will decide most purchases: count your rack units and add 20 to 30 percent headroom, then check usable mounting depth against your deepest chassis. Both mistakes show up repeatedly in owner reviews, and both are free to avoid with a tape measure.
Our picks are updated for 2026. If you are still deciding between formats, our [best wine racks](https://www.mineralwaters.org/best-wine-racks/) and [best saddle racks](https://www.mineralwaters.org/best-saddle-racks/) guides cover the same sizing logic for different gear, and [best power racks](https://www.mineralwaters.org/best-power-racks/) covers honest load ratings in detail.
