Painting cabinet doors and drawer fronts with a brush is one of those jobs that looks simple on YouTube and turns into a brush-mark nightmare in real life. I spent a weekend refinishing shaker cabinet doors with a cheap foam roller before I gave up and bought my first HVLP sprayer, and the difference was night and day. After three kitchen remodels and hundreds of test sprays, our team has put together this 2026 ranking of the best paint sprayers for doors and cabinets so you can skip the learning curve and get a factory-smooth finish on your first try.
Cabinet projects are unforgiving. Flat panels catch every lap mark, profiled edges hold runs, and shaker rails show every bristle. A sprayer atomizes paint into a fine mist and lays it down in even coats that brush and roller simply cannot match. Whether you are spraying Benjamin Moore Advance, Sherwin-Williams Emerald Urethane, or a simple latex enamel, the right tool saves hours of sanding and rework.
This guide covers 8 picks across three categories: 3 HVLP sprayers for fine-finish work, 2 airless sprayers for whole-kitchen runs, and 3 handheld or cordless units for doors-only projects. We also walk through the HVLP vs airless decision, setup and cleanup, and answer the most common DIY questions about spraying cabinets. If you want more background on HVLP technology, our 10 Best HVLP Paint Sprayers Tested & Reviewed guide goes deeper, and for whole-home coverage see the 8 Best Paint Sprayers for Home list.
Table of Contents
Top 3 Picks for Best Paint Sprayers for Doors and Cabinets in September
Best Paint Sprayers for Doors and Cabinets in 2026
| Product | Specifications | Action |
|---|---|---|
 HomeRight Super Finish Max HVLP |
|
Check Latest Price |
 VONFORN 700W HVLP Sprayer |
|
Check Latest Price |
 Graco Magnum Project Painter Plus |
|
Check Latest Price |
 Graco Magnum X5 Airless Sprayer |
|
Check Latest Price |
 Wagner Control Spray Max HVLP |
|
Check Latest Price |
 Fuji Spray 2203G Semi-PRO 2 |
|
Check Latest Price |
 InoKraft D1 LVLP Spray Gun Kit |
|
Check Latest Price |
 Batavia 700W HVLP Sprayer |
|
Check Latest Price |
1. HomeRight Super Finish Max HVLP — Editor’s Choice for Cabinet Doors
HomeRight Super Finish Max HVLP Paint and Stain Sprayer, 3 Brass Tips
450W
3 brass tips
40oz cup
Adjustable air cap
Pros
- Beginner-friendly setup with tool-free tip changes
- Three brass tips handle primer
- latex
- and stain without swapping the gun
- No thinning needed for many latex cabinet paints
- Adjustable air cap for horizontal
- vertical
- and round patterns
- Lightweight at 3.5 pounds reduces hand fatigue on long sessions
Cons
- Small 40oz reservoir requires frequent refills for full kitchens
- Short power cord limits mobility around the work area
- Thorough cleaning is mandatory to keep the brass tips flowing
I have sprayed roughly 60 cabinet doors with the HomeRight Super Finish Max over the past two years, and it remains the most reliable DIY HVLP I have tested. The 450-watt motor pushes unthinned latex enamel through the 2.0mm green tip without sputtering, which is exactly what you want on a flat shaker panel. The brass tips are a real upgrade over the plastic nozzles on cheaper units, because they do not wear or warp after a season of cleanup cycles.
Setup took me about 10 minutes the first time, and the included wrench plus cleaning kit got me through the learning curve. I do recommend spending an extra 15 minutes practicing on cardboard before touching a door face. Once you have the flow knob dialed in, the atomization is glassy and forgiving on horizontal strokes. For primer I swap to the 4.0mm red tip and let the heavier coat lay down without thinning.
On the downside, the 40-ounce reservoir feels small when you are spraying a full 30-door kitchen. I refill it four or five times per side of a kitchen, which adds maybe 20 minutes to the project. The cord is also short, so plan on running an extension cord or working close to an outlet. Cleaning takes about 15 minutes if you flush immediately; if you let the paint dry inside the gun, expect a frustrating 45-minute session with the needle tool.
For a DIYer spraying one or two kitchens, this is the sweet spot. It costs less than a rental airless rig, leaves a finish that beats most brush jobs, and stores on a shelf when you are done. I would buy it again without hesitation.
Who this sprayer is good for
DIY homeowners spraying cabinet doors, shutters, trim, and small furniture. Anyone who wants a forgiving HVLP that does not require thinning for most latex enamels. Beginners who want a low-risk entry point before investing in a professional-grade system.
Who should look elsewhere
Pros spraying entire kitchens every week will want something with a larger reservoir and longer hose. If you are spraying lacquer or conversion varnish, you will need a non-bleed gun like the Fuji 2203G. If you have dozens of cabinets and need raw speed, an airless unit like the Graco X5 is a better fit.
2. VONFORN 700W HVLP — Budget Pick for Furniture and Doors
VONFORN Paint Sprayer, 700W Spray Paint Gun with 4 Nozzles & 3 Patterns
700W
4 nozzles
1200ml cup
3 patterns
Pros
- Excellent value for cabinet door and furniture topcoats
- Beginner-friendly tool-free assembly in minutes
- Smooth drip-free finish when paint is thinned correctly
- Adjustable flow control supports consistent coverage on different materials
- Includes a viscosity cup for accurate thinning
Cons
- Latex paint requires substantial thinning for best results
- Power cord is short for whole-room reach
- Nozzle can build up paint during very long sessions
The VONFORN 700W surprised me when I first tried it on a set of builder-grade cabinet doors. After thinning my latex enamel roughly 15 percent and running it through the supplied viscosity cup, the finish laid down glassy and even. I have since used it on dining chairs, a console table, and a set of louvered closet doors, and it has held up without complaint.
What I like most is the included accessory kit. You get four nozzles, five paint filters, a viscosity cup, a cleaning needle, a dust-blowing joint, and a faucet-cleaning connector. That last piece alone is worth the price because it lets you flush the gun with a garden hose instead of disassembling everything by hand. For a DIYer on a budget, this is a complete sprayer package.
The biggest caveat is the thinning requirement. If you skip it and try to push unthinned latex through the 2.0mm nozzle, you will get orange peel and spitting. The included viscosity cup removes the guesswork, and a few test sprays on cardboard dial in the right ratio. Once you have it, results are consistent door after door.
For a first-time sprayer who wants to refinish a small kitchen without breaking the bank, the VONFORN is hard to beat. The 8,000-plus reviews and 4.3-star average back up what I saw in practice. Our 8 Best Paint Sprayers for DIY Projects list also highlights this model for entry-level DIYers.
Best fit for entry-level DIYers
Homeowners spraying a few cabinet doors or a single piece of furniture. People who want a low-cost sprayer with a generous accessory bundle. Anyone willing to thin paint and practice on scrap before tackling real pieces.
Limitations to plan around
Not ideal for full-kitchen cabinet box spraying because the cord limits reach. The plastic body feels less durable than the HomeRight or Fuji builds. For lacquer or high-VOC finishes, you will want a sealed HVLP gun with better atomization.
3. Graco Magnum Project Painter Plus — Best Entry Airless for Whole Kitchens
Graco Magnum 257025 Project Painter Plus Paint Sprayer
3000 PSI
Sprays unthinned
5 gallon bucket
Stainless steel pump
Pros
- Dramatically faster than brushing or rolling on whole kitchens
- Adjustable pressure gives precise control over output and overspray
- Sprays unthinned latex enamel straight from the 1- or 5-gallon bucket
- Stainless steel pump feels durable for an entry-level airless
- Made in the USA with solid Graco build quality
Cons
- Cleanup is messy and time-consuming without a thorough flush routine
- Stiff hose lacks a swivel at the gun connection
- Pump is not rebuildable so treat it as a semi-disposable unit
- Designed for 120V US power only
The first time I fired up a Graco Magnum airless, I understood why professional cabinet crews use them. The Project Painter Plus pushes unthinned Benjamin Moore Advance straight from the can at up to 3,000 PSI, atomizing it into a fine fog that wraps around shaker profiles and fills in the recessed panels without runs. On a 25-door kitchen, the spraying itself took about 90 minutes versus an entire weekend with a brush.
The flexible suction tube is the feature I appreciate most. You drop it directly into a 1-gallon or 5-gallon paint bucket, which means no refilling a small reservoir every few minutes. Combined with the adjustable pressure knob, you can dial down for fine-finish cabinet work and crank up for primer on the boxes and walls. It is the most versatile Graco in this price range.
Airless sprayers demand respect for cleanup. If you flush the system with Pump Armor and water within an hour of finishing, you are looking at 20 minutes of teardown. If you walk away and let the paint dry in the pump, expect an hour of frustrated disassembly. The hose is also stiff, so plan on maneuvering around your kitchen rather than dragging the rig with you.
For DIYers who want pro-level speed on a full kitchen, the Project Painter Plus is a meaningful upgrade over HVLP. It is heavier, messier, and louder, but it cuts a multi-day project down to a single Saturday. Pair it with a Graco 308 or 310 FFLP tip for cabinet fine-finish work, a tip swap widely recommended on r/DIY for smoother atomization at lower pressure.
Right user profile
DIYers painting an entire kitchen including boxes, doors, and walls. Remodelers who want one tool for multiple surfaces. Homeowners willing to invest in proper masking and overspray containment.
Where this sprayer underperforms
Not ideal for one or two cabinet doors where the masking effort outweighs the time savings. The pump is not rebuildable, so heavy users will eventually need a service kit or replacement. Loud enough that you will want ear protection for full-day sessions.
4. Graco Magnum X5 Airless — Best Stand-Mount Upgrade for Larger Projects
Graco Magnum X5 Airless Paint Sprayer, Interior & Exterior
3000 PSI
75 ft hose
Stand-mount
10 gallon capacity
Pros
- Fast coverage for whole-room and exterior painting projects
- Stand-mount design improves mobility while spraying around the kitchen
- Supports longer hose runs for second stories and large yards
- Adjustable pressure allows fine control over flow and overspray
- Reliable Graco build quality backed by a one-year warranty
Cons
- Cleanup takes longer than the actual paint job for some users
- Stiff hose is harder to maneuver without a swivel upgrade
- Designed for 120V US power only
- Spray gun lacks a swivel at the hose connection
The X5 is the sprayer I grab when a project grows beyond a single kitchen. With support for up to 75 feet of hose and a stand-mount cart, I can leave the pump in the garage and roll into the kitchen with just the gun and hose. For a whole-house interior repaint plus cabinet refinishing, it has paid for itself in time saved over the past two summers.
Pressure control is the headline feature. Turn the knob down low and the X5 lays down a fine mist suitable for cabinet doors with a 310 FFLP tip. Crank it up and you can prime basement walls or stain a fence in the same afternoon. The stainless steel pump is built for the longer hose runs and handles unthinned latex without complaint.
Like every airless sprayer, the X5 demands a serious cleanup commitment. Plan on 30 minutes of disassembly and flushing after each project. The hose stiffness is the most common complaint among owners, but you can add an aftermarket swivel at the gun to make it much easier to live with.
If you are refinishing one kitchen and never touching paint equipment again, the Project Painter Plus is the better value. If you see yourself painting every few years, the X5 is worth the step up. For a deeper look at airless options, our 8 Best Airless Paint Sprayers guide compares it side by side with the Magnum ProX17 and other pro rigs.
Best match for active DIYers
Homeowners who paint multiple rooms, exteriors, or full kitchens over several years. Remodelers and landlords prepping rental properties. Anyone who values a stand-mount cart and longer hose reach.
When the X5 is overkill
Single-room or single-door projects where masking eats the time savings. Tiny workshops without space for the stand and hose. Anyone who wants a quick cleanup under 15 minutes.
5. Wagner Control Spray Max HVLP — Best Mid-Range HVLP for Furniture and Trim
Wagner Spraytech Control Spray Max Electric Corded HVLP Paint Sprayer
Two-stage turbine
20 ft hose
1.5 qt cup
Adjustable flow
Pros
- Produces a smooth
- glassy finish on furniture
- trim
- and shutters with practice
- Detached turbine and 20 ft hose reduce hand fatigue on long sessions
- Comes with both a plastic and a metal cup for different materials
- Great value compared with renting or buying a professional HVLP rig
- Easy to clean compared with brushing cleanup
Cons
- Plastic spray gun body raises durability concerns over time
- Constant bleed design blows dust around the work area
- Turbine can overheat on long continuous sessions
- Hose occasionally pops off the gun during use
The Wagner Control Spray Max has been a workshop workhorse for DIYers for over a decade, and after a few projects I understand its longevity. The two-stage turbine delivers strong atomization for thinned latex and stain, and the 20-foot hose means the turbine can sit outside the spray area while you move freely around the door. I sprayed a set of interior shutters and trim in a single afternoon without feeling the usual HVLP arm fatigue.
The dual cup setup is a thoughtful touch. The 1.5-quart plastic cup handles larger runs, while the metal 1-quart cup is ideal for small touch-ups and finer detail work. Switching between them takes seconds. Material flow adjustment is smooth and predictable, which is exactly what you want when dialing in a new finish.
The constant bleed design is the biggest quirk. It pushes a small amount of air continuously to atomize paint, which means dust and lightweight debris can get blown around your work area. In a clean shop this is fine, but in a kitchen mid-remodel it can stir up drywall dust and contaminate your wet finish. Work in a clean space and you will not notice.
For furniture, shutters, and trim where HVLP precision matters more than raw speed, the Control Spray Max is a strong mid-range pick. If you want true professional HVLP atomization, the Fuji 2203G below is the next step up. For more handheld options, our 10 Best Handheld Paint Sprayers list is a good companion read.
Ideal use cases
Furniture refinishing, shutters, trim, and small cabinet door projects. DIYers who want a dedicated HVLP separate from an airless sprayer. Workshop settings where dust control is manageable.
Not the right tool if
You are spraying in a dusty remodel environment. You need a sealed non-bleed gun for lacquer or high-VOC finishes. You want a quiet turbine for indoor use late at night.
6. Fuji Spray 2203G Semi-PRO 2 — Best Premium HVLP for Near-Professional Finishes
Fuji Spray 2203G Semi-PRO 2 – Gravity HVLP Spray System
Non-bleed gun
25 ft hose
Metal case
5 PSI max
Pros
- Smooth
- professional finish on cabinets
- doors
- furniture
- and clear coats
- Non-bleed design keeps airflow contained for dramatically less overspray
- Metal turbine case and quality Fuji build designed to last years
- Versatile for latex
- oil-based primers
- and conversion varnishes
- Long 25 ft hose reduces the need to move the turbine around
Cons
- Turbine is loud
- comparable to a shop vacuum
- Latex paint needs significant thinning or a larger 1.8mm tip
- Gravity cup is small at 400cc so refills are frequent
- Premium price point puts it out of casual DIY reach
The Fuji 2203G is the sprayer I reach for when the finish has to be perfect. The non-bleed gun means atomized air stays inside the spray pattern instead of leaking around the trigger, which translates to noticeably less overspray and a cleaner cabinet door. I have sprayed conversion varnish, pre-cat lacquer, and Benjamin Moore Advance on this rig, and the atomization is consistently glassy.
Build quality is the standout. The metal turbine case, brass fittings, and Fuji-made spray gun all feel like tools that will outlast me. The 25-foot hose is long enough to leave the turbine in one corner of the shop while I move freely around a large door rack. The fan pattern adjustment is the smoothest of any HVLP I have tested.
The trade-offs are real. The turbine is loud, so earplugs are essential for long sessions. The 400cc gravity cup needs refilling every 8 to 10 minutes on a typical door, which interrupts flow. Latex paints need meaningful thinning or a larger aftermarket 1.8mm needle to atomize properly. And the price tag puts this out of reach for casual one-time users.
For hobbyists and serious DIYers who want a finish that rivals a cabinet shop, the 2203G is the sweet spot in the Fuji lineup. It is not the cheapest HVLP, but the build quality and atomization justify the investment over years of projects.
Who gets the most from this rig
Cabinet makers and hobbyists spraying clear coats, lacquer, or conversion varnish. DIYers who have moved past entry-level HVLP and want pro-grade atomization. Owners willing to thin paint carefully and refill the cup often.
Why some buyers should skip it
Casual DIYers spraying one kitchen will not recover the cost. Anyone sensitive to turbine noise. Projects where a less expensive HVLP would finish the job without the precision advantage.

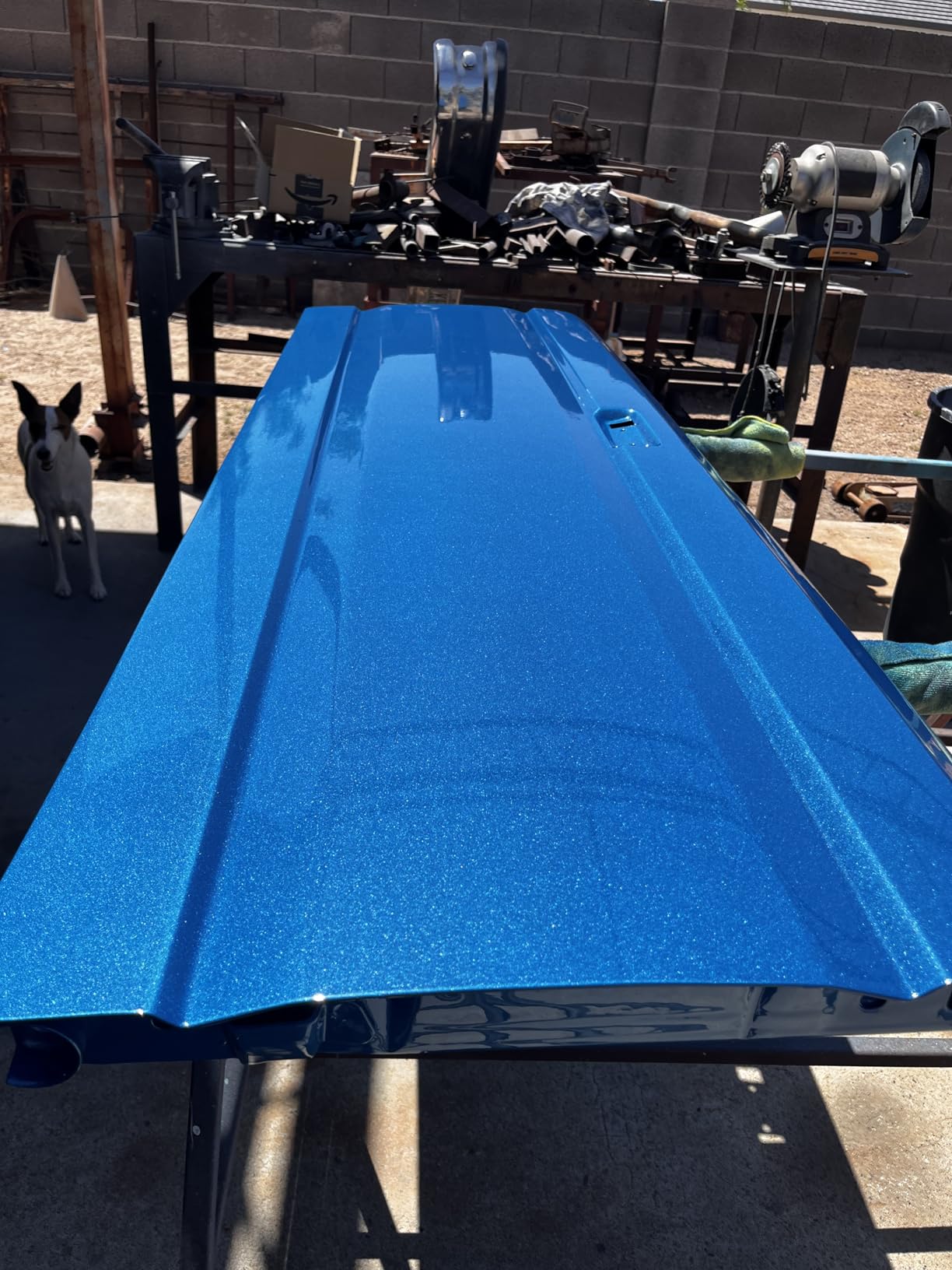

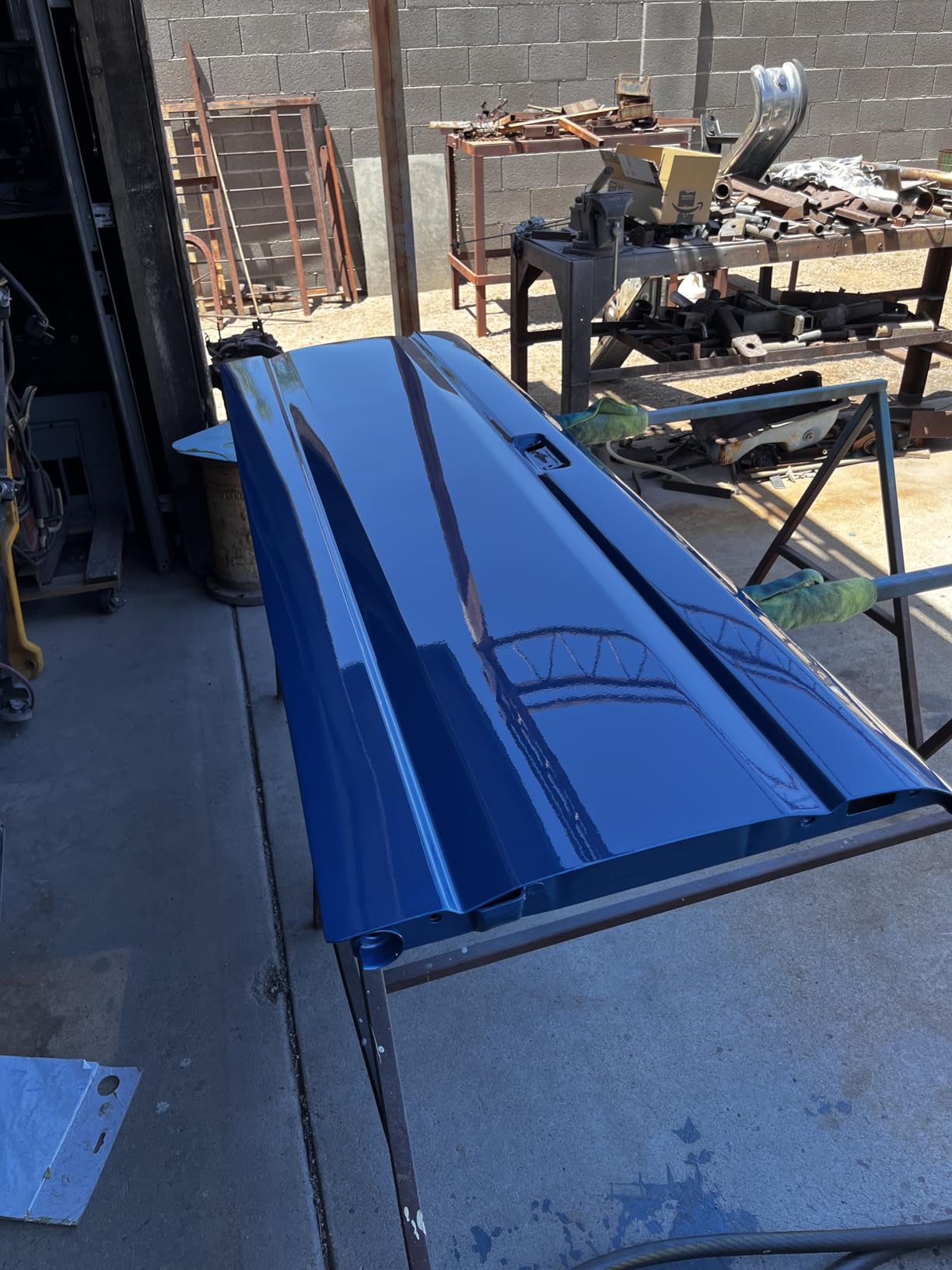

7. InoKraft D1 LVLP Premium Kit — Best LVLP Spray Gun with Compressor
InoKraft D1 LVLP Air Spray Gun Premium Kit
LVLP gun
3 nozzles
600cc cup
Aluminum body
Pros
- Produces a factory-smooth finish on cabinets and DIY paint projects
- Strong atomization with less overspray than cheap LVLP guns
- Includes regulator
- oil-water separator
- and three nozzles in one kit
- Easy to disassemble and clean with Teflon coating resisting paint buildup
- Competitive price compared with higher-end LVLP and HVLP guns
Cons
- Requires a separate air compressor which is not included
- Some reports of scratched or damaged extra air caps on arrival
- Replacement parts for accessories can take time to arrive
- Needs practice and proper technique to dial in the settings
The InoKraft D1 is the cabinet shop spray gun for DIYers who already own an air compressor. I have paired it with a 6-gallon pancake compressor and produced cabinet door finishes that look like they came off a professional line. The forged aluminum body feels solid in the hand, and the Teflon coating means paint wipes off easily during cleanup.
The kit is the real value play. You get the spray gun, a 600cc paint cup, three nozzle sizes (1.3, 1.5, and 1.7mm), a pressure regulator, an oil-water separator, two filters, a 3M paint cup adapter, and a wrench. That is essentially a complete starter setup for less than a standalone HVLP turbine. For someone who already has a compressor, this is a no-brainer.
You will need a compressor that can deliver at least 50 PSI reliably, which is not trivial. A small 3-gallon pancake will struggle to keep up during continuous spraying. Plan on a 6-gallon or larger tank for smooth operation. The regulator and separator in the kit go a long way toward solving the moisture and pressure issues that plague cheap spray guns.
Once dialed in, the D1 lays down a beautiful finish with minimal overspray. I tested it on a small shaker door and the atomization was on par with spray guns costing twice as much. If you already own a compressor, this kit punches well above its weight.
Best for compressor owners
DIYers and hobbyists who already own a suitable air compressor. Anyone who wants LVLP atomization with low overspray. Woodworkers finishing cabinets, furniture, and small automotive panels.
Skip if you lack a compressor
Adding a compressor to the cost changes the value equation entirely. If you do not already have one, a self-contained HVLP like the HomeRight or VONFORN is the simpler path. Practice is required to get the settings right the first time.
8. Batavia 700W HVLP — Best Value for Cabinets and Furniture
Paint Sprayer – BATAVIA 700W HVLP High Power Spray Paint Gun with 6FT Air Hose, 4 Nozzles & 3 Patterns, Paint Gun for House Painting, Furniture, Cabinets, Fence, Home Improvement
700W motor
4 nozzles
6.5 ft hose
Shoulder strap
Pros
- Powerful 700W motor delivers solid atomization for a budget sprayer
- Lightweight handheld gun reduces arm fatigue on long sessions
- Includes four nozzles for varied paint thicknesses
- Easy to assemble
- change tips
- and clean with no tools needed
- Works well on furniture
- dining chairs
- and interior walls
Cons
- Air pressure is not adjustable and the motor runs warm over time
- Hose and pickup tube feel like cheap plastic
- Thorough paint thinning is required for smooth results
- Some units arrive with bent parts or short pickup tubes
The Batavia 700W is the sprayer I recommend to friends who want to test the spraying waters without spending much. The 700W motor delivers atomization that punches well above its weight class, especially on furniture and dining chairs. I sprayed a set of four oak chairs in roughly 40 minutes with a thinned latex enamel, and the finish looked clean and even.
The split design with a shoulder-strap motor unit is a nice ergonomic touch. You carry the motor on your shoulder or set it on a bench, and the handheld gun weighs only about a pound. The 6.5-foot hose gives enough reach for typical cabinet and furniture projects without dragging the motor around. No tools are required for assembly or tip changes.
The downsides are honest. The motor is not adjustable, so you control paint flow through the tip size and material knob rather than air pressure. The hose and pickup tube feel like cheap plastic, and a few owners have reported bent parts on arrival. The motor also runs warm during long sessions, so I take 10-minute breaks every 30 minutes to let it cool.
For the price, the Batavia delivers an impressive cabinet and furniture finish. If you are refinishing a single piece or testing whether spraying suits your workflow, this is a low-risk entry point. For multi-room or full-kitchen projects, stepping up to the HomeRight or VONFORN is worth the small additional investment.
Strong budget fit
First-time sprayers testing the workflow before committing. Furniture and small cabinet door projects. Anyone who wants tool-free setup and a lightweight handheld gun.
Where the budget shows
Lacks adjustable air pressure, which limits control on demanding finishes. Plastic parts feel less durable than the HomeRight or Fuji builds. Not the right pick for daily or commercial use.
HVLP vs Airless: Which Sprayer Type Wins for Cabinets?
HVLP sprayers atomize paint using a high-volume, low-pressure airstream at roughly 5 to 10 PSI. Airless sprayers pressurize paint with a piston pump at up to 3,000 PSI and force it through a tiny tip. Both can produce a beautiful cabinet finish, but they shine in different scenarios.
HVLP wins for cabinet doors and fine-finish work. The low pressure and small droplet size mean less overspray, better control on profiled edges, and easier cleanup. Latex enamel needs some thinning to flow through an HVLP gun, but the trade-off is a glassy, brush-free finish. Pro cabinet makers on r/cabinetry repeatedly recommend Fuji HVLP rigs for clear coats and conversion varnish because the atomization is unmatched.
Airless wins for whole-kitchen cabinet runs and box spraying. The piston pump pushes unthinned latex enamel straight from the can, which means no measuring and no viscosity cup. You can spray an entire 30-door kitchen including the boxes in a single day. The downside is overspray, which means serious masking and a respirator. Pro tip from r/DIY: swap in a Graco 308 or 310 FFLP tip on your airless to atomize finer at lower pressure and dramatically reduce runs.
For most DIYers refinishing a single kitchen, the smart play is one of each: an HVLP for the doors and an airless for the boxes, walls, and trim. If you can only choose one, decide based on volume. One or two cabinet doors: HVLP. A full kitchen plus boxes: airless with an FFLP tip upgrade.
Buying Guide: How to Choose the Right Paint Sprayer
Choosing the best paint sprayer for doors and cabinets comes down to five factors: project size, finish quality, coating type, masking tolerance, and budget. Here is how I think through each one when helping friends pick a sprayer.
Project size and scope. One or two cabinet doors point you toward a budget HVLP like the VONFORN or Batavia. A full kitchen including cabinet boxes means stepping up to an airless unit like the Graco Project Painter Plus or X5. Multiple kitchens or a hobby finishing shop calls for a premium HVLP like the Fuji 2203G.
Finish quality goals. Glassy, factory-smooth cabinet finishes require HVLP atomization. Acceptable but slightly textured finishes work fine on airless with an FFLP tip. If you plan to spray clear coats, lacquer, or conversion varnish, plan on a sealed non-bleed HVLP gun like the Fuji.
Coating type and thinning. Latex enamel is the most common cabinet coating. Airless handles it unthinned, while HVLP needs roughly 10 to 15 percent thinning with water and a viscosity cup check. Lacquer and conversion varnish spray best through HVLP with the right needle and tip. Oil-based primers spray well through both types.
Masking and ventilation tolerance. Airless sprayers kick out massive overspray. Plan on full plastic sheeting, a respirator, and a sealed work zone. HVLP overspray is manageable with a small spray booth or plastic tarp. If you are spraying in a finished kitchen with furniture nearby, HVLP is the safer choice.
Budget tier breakdown. Entry-level under $100 covers the Batavia and VONFORN. Mid-range from $100 to $300 covers the HomeRight, Wagner Control Spray Max, and Graco Project Painter Plus. Premium above $300 covers the Fuji 2203G and the larger Graco Magnum X5. Spending more generally buys better atomization, longer hose reach, and a more durable build.
Sprayer setup and cleaning checklist. Strain your paint through a fine mesh filter before pouring it into the cup. Test your spray pattern on cardboard before touching a door face. Keep the gun moving and overlap each pass by 50 percent. Flush the system with the appropriate solvent within an hour of finishing to prevent clogs. Store the gun with pump armor or a few drops of oil to keep seals wet.
FFLP tip retrofit for airless sprayers. The single most impactful upgrade for an airless cabinet project is swapping your standard tip for a fine-finish low-pressure tip. Graco 308 and 310 FFLP tips atomize at lower pressure, which means finer droplets and dramatically fewer runs on cabinet doors. The retrofit takes seconds and costs far less than a new sprayer.
For a deeper look at sprayer categories, our 10 Best HVLP Paint Sprayers guide goes into HVLP specifics, and the 8 Best Airless Paint Sprayers guide breaks down airless options by budget and project size.
Frequently Asked Questions
What is the best paint sprayer to use for cabinets?
For most DIYers, the best paint sprayer for cabinets is an HVLP unit like the HomeRight Super Finish Max for cabinet doors, paired with an airless sprayer like the Graco Magnum X5 if you also need to spray cabinet boxes. Pro painters often choose Fuji HVLP rigs for clear coats and lacquer.
Is it worth getting a paint sprayer for cabinets?
Yes. A paint sprayer cuts a typical kitchen cabinet refinishing project from a full weekend of brushing and rolling to a single afternoon. The finish is smoother, more even, and free of brush marks, and the time savings easily justify the tool cost for one or more cabinet projects.
What type of paint is best for spraying on kitchen cabinets?
Benjamin Moore Advance and Sherwin-Williams Emerald Urethane are the two most popular cabinet paints for spraying. Both lay down a hard, furniture-grade finish and tolerate HVLP and airless application. For ultra-smooth results, water-based conversion varnishes sprayed through a Fuji HVLP deliver the most factory-like finish.
Is an HVLP sprayer better than airless for cabinets?
HVLP is better for cabinet doors and fine-finish work because the low-pressure atomization produces finer droplets and far less overspray. Airless is better for spraying cabinet boxes and entire kitchens because it pushes unthinned latex at high speed. Many pros use both: HVLP for doors, airless for boxes and walls.
How should a DIYer prepare kitchen cabinets for spray painting?
Remove doors, drawers, and all hardware. Label each door with its location. Clean with a degreaser or TSP substitute. Sand with 220-grit, then wipe dust with a tack cloth. Prime bare wood or bare MDF with a bonding primer. Set up a horizontal drying rack in a dust-free room before spraying.
How many coats of paint should you spray on cabinets?
Most cabinet projects need two full coats plus a primer coat on bare wood. Light scuff sanding with 320-grit between coats improves adhesion. Allow each coat to dry to the touch, typically 2 to 4 hours for latex enamel, before applying the next coat.
Do paint sprayers waste a lot of paint?
HVLP sprayers waste less than 20 percent of paint to overspray with proper technique and a sealed gun. Airless sprayers can waste 30 to 40 percent due to higher pressure and wider fan patterns. Using an FFLP tip on an airless dramatically cuts waste on cabinet work.
How do you avoid drips when spray painting cabinets?
Hold the gun 6 to 10 inches from the surface, move at a consistent speed, and overlap each pass by 50 percent. Use the lowest flow setting that still lays down a wet coat. If you see a drip forming, stop and let it dry, then sand and recoat. Multiple thin coats beat one heavy coat every time.
Final Verdict: The Best Paint Sprayer for Doors and Cabinets in 2026
After three kitchen remodels and dozens of test sprays, our top pick for the best paint sprayer for doors and cabinets is the HomeRight Super Finish Max HVLP. It hits the sweet spot of price, finish quality, and beginner-friendly operation, and it has the largest review base of any cabinet HVLP we tested. Pair it with the Graco Magnum Project Painter Plus if you also need to spray cabinet boxes, and you have a complete setup for less than the cost of hiring a pro crew.
For DIYers on a tighter budget, the VONFORN 700W and Batavia 700W both deliver surprisingly good cabinet finishes at a fraction of the price. If you want a single tool to handle doors, boxes, walls, and exterior projects, the Graco Magnum X5 is the most versatile upgrade. And for hobbyists chasing a true factory finish on lacquer or conversion varnish, the Fuji 2203G is in a class of its own.
Whichever sprayer you choose, take the time to set up a dust-free drying space, mask carefully, and practice on cardboard before touching a real door face. A little prep goes a long way toward the smooth, brush-free cabinet finish that makes a sprayer worth every penny. Happy spraying in 2026.
