A generator transfer switch kit is a preassembled package that bundles a double-throw safety switch, a matching exterior power inlet box, and usually a prewired power cord, so a portable generator can feed selected home circuits without ever connecting to the utility grid. For most homeowners, the right answer is a 30-amp manual kit with six to ten circuits that matches an L14-30 plug, because that covers a refrigerator, a furnace blower, a sump pump, and internet gear without the complexity of a service-entrance automatic switch.
We spent weeks going through the ten kits below, reading every spec sheet, comparing the switch mechanisms, and matching each one against the plug type and running wattage of the generators people actually own. What separates a good kit from a disappointing one rarely shows up in the marketing copy. It is the enclosure rating, the quality of the factory terminations, whether the cord matches your generator’s outlet, and whether the listing carries a real safety certification mark your inspector will accept.
Two mistakes dominate the forum conversations we read before writing this. The first is size mismatch: people buy a 50-amp switch for a 30-amp generator, or pair a 30-amp kit with an L14-50 outlet, and then discover the return shipping is not worth it. The second is buying a bare switch and assuming a kit, then paying a second order for the inlet box and cord. If you want the broader picture on the automatic side of the market, our guide to the best automatic transfer switch options covers the standby category in more depth.
Every kit in this roundup is written below in the order we would consider them, starting with the one we would put in the most homes. Prices change constantly, so use the check buttons for current listings rather than the price figures you may have seen elsewhere.
Table of Contents
Top 3 Picks for the Best Generator Transfer Switch Kits for Homeowners (October 2026)
These three cover the widest range of real installations: a complete six-circuit kit for a typical portable generator, a ten-circuit kit for homes that want more branch control, and a lower-cost option for buyers comfortable with a smaller certification footprint.
Reliance 31406CWK 30A Kit
- 6 circuits
- 30 amps
- 7500 watts
- Prewired with inlet box and cord
- Dual watt meters
- cULus listed
Connecticut Electric 30A 10-Circuit
- 10 circuits
- 30 amps
- 7500 watts
- Removable tie bars for 240V
- NEMA 3R weatherproof
- ETL listed
VEVOR 30A 10-Circuit Kit
- 10 circuits
- 30 amps
- 7500 watts
- Pre-wired L14-30P inlet
- Mechanical watt meter
- NEMA 3R steel
Every Generator Transfer Switch Kit in This Roundup at a Glance
This table lists all ten kits with the numbers that decide compatibility: amperage, circuit count, generator wattage ceiling, and enclosure rating. Read the plug column carefully, because a kit that does not match your generator’s outlet is the most common reason for a return.
| Product | Specifications | Action |
|---|---|---|
| Reliance Controls 31406CWK 30A 6-Circuit Kit |
|
Check Latest Price |
| Connecticut Electric EmerGen 30A 10-Circuit |
|
Check Latest Price |
 Reliance Controls 31410CRK 30A 10-Circuit |
|
Check Latest Price |
 Reliance Controls A510C 50A 10-Circuit |
|
Check Latest Price |
| VEVOR 30A 10-Circuit Kit |
|
Check Latest Price |
 Nature’s Generator 50A 12-Circuit |
|
Check Latest Price |
 Generac RXSW100A3 100A Automatic |
|
Check Latest Price |
 GenerLink 40A Automatic Switch |
|
Check Latest Price |
 Nature’s Generator 30A 6-Circuit |
|
Check Latest Price |
 Generac HomeLink 9854 50A Kit |
|
Check Latest Price |
What a Generator Transfer Switch Kit Actually Contains
A kit is not the same thing as a switch, and the distinction confuses a lot of first-time buyers. A bare transfer switch is just the metal box with the double-throw mechanism and a row of breaker positions. A kit wraps that switch with everything else you need to finish the job outdoors.
Here is what a complete kit contains, based on the boxes we reviewed for this roundup. The transfer switch enclosure houses the double-throw safety switch and the branch circuit positions you will wire to your load center, and a power inlet box mounts on an exterior wall to hold the twist-lock receptacle your generator cord plugs into.
The third piece is the power cord, typically 10 feet for 30-amp kits and 20 feet for larger units, and the fourth is wire connectors and flexible conduit in some kits. Several manufacturers leave the run from the switch to the inlet box for the installer to supply, which is the item most often missing from a parts list.
Inside the switch, the mechanism that matters is the mechanical interlock. It is physically impossible for the two power sources to be connected at the same time, which is the entire safety argument for owning one of these. Some kits also add watt meters so you can see how much load you are placing on each split phase and avoid tripping the generator under motor startup.
One detail that catches people is the neutral connection. Many portable generators have a bonded neutral that ties the neutral to the frame, and those cannot be used with a neutral-switching transfer switch without a modification that most homeowners should not attempt. Bonded-neutral generators are common enough that you should check your generator’s manual and your switch’s instructions before the electrician arrives, which is the exact compatibility issue that shows up in installer discussions on mikeholt.com.
The short version: read the included components list before you order. A kit that includes the cord, the inlet, and the terminations will save you an extra trip to the electrical supply house, and it reduces the number of mismatched parts in the middle of an outage.
Why Backfeeding Is Dangerous
Backfeeding means sending generator power back onto utility lines, and it is the reason transfer switches exist at all. When a generator is plugged directly into a dryer outlet or a male-to-male extension cord, nothing prevents that power from flowing out to the street where a linecrew may be working on a downed line.
Electricians and fire officials call this out constantly in homeowner forums, and the practice is widespread enough that it turns up in a large share of outage stories. The hazard is not theoretical: lineworkers have been electrocuted by generators connected this way, and a backfed utility line is a fire source that sits well away from your house.
It is also a code and insurance problem. The National Electrical Code requires a transfer device, an unpermitted or improvised connection can void a homeowner’s policy, and an inspector will flag it. The switch is what makes the installation legal, safe, and permitted rather than a shortcut.
If you only need a couple of appliances, extension cords run directly to the loads are fine and require no switch. The moment you want the wiring already in your walls to run on generator power, a transfer switch or an interlock kit is the only safe path.

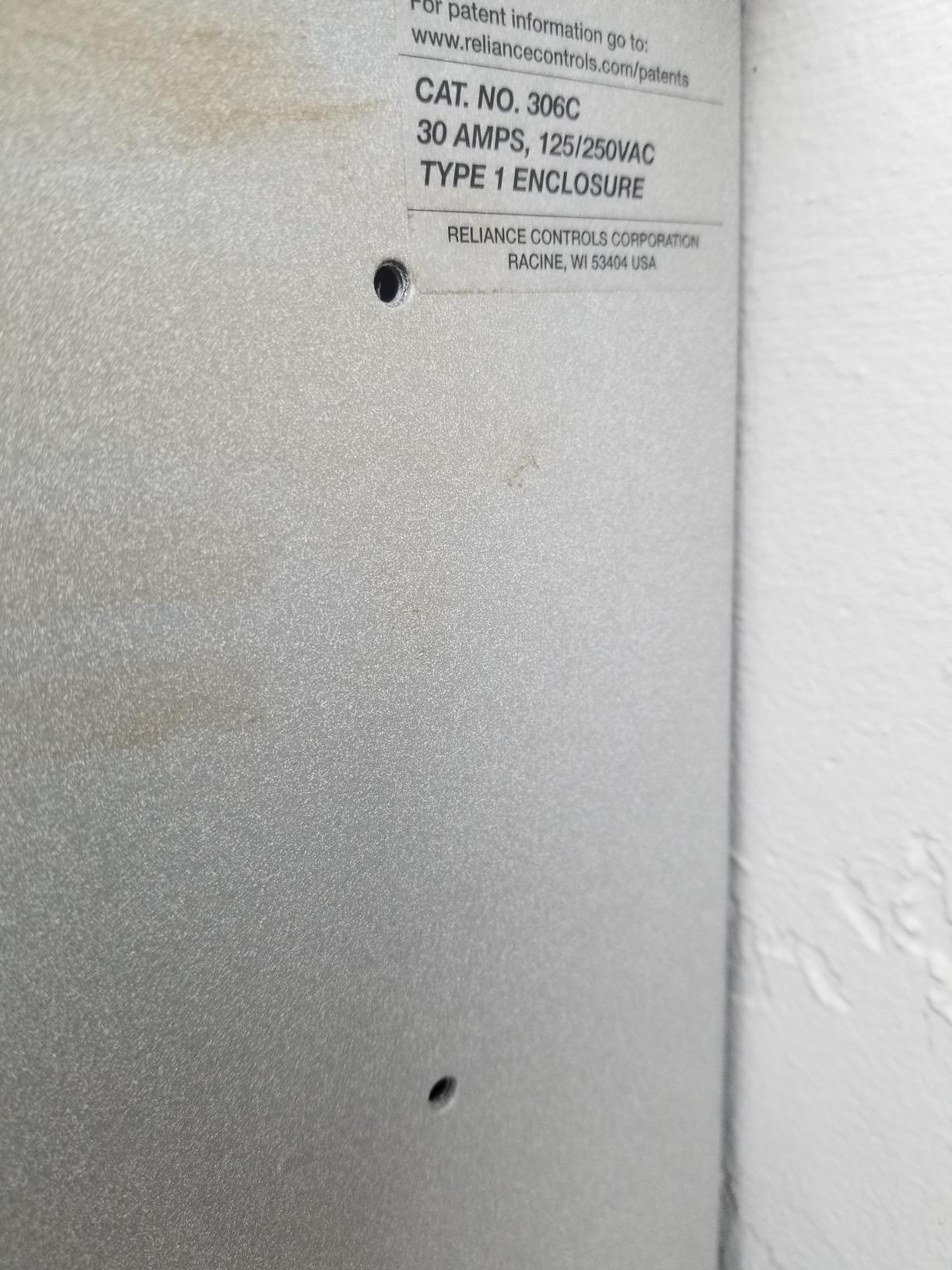

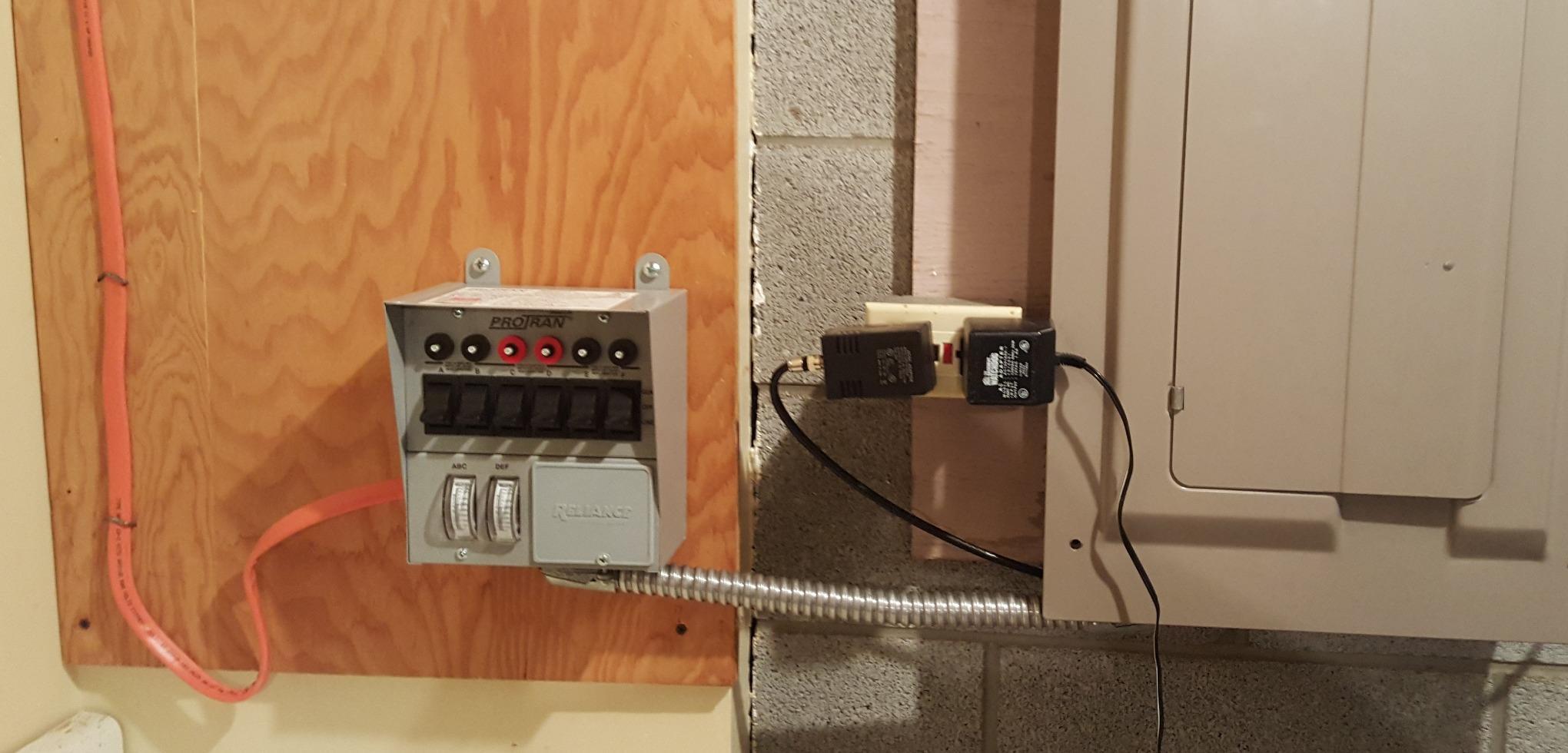

1. Reliance Controls 31406CWK 30 Amp 6-Circuit Kit
Reliance Controls Corporation 31406CWK 30 Amp 6-circuit Pro/Tran Transfer Switch Kit for Generators (7500 Watts).,Gray
30 amps
6 circuits
7500 watts
cULus listed
5 year warranty
Pros
- Comes pre-wired with switch inlet box cord and connectors
- Twin watt meters show load on both split phases
- Load side design blocks backfeeding
- Clear instructions and an install video
- Works in Canada as well as the US
Cons
- Push-on wire terminations can arrive loose
- 4-prong L14-30R cord needs an adapter for 3-prong generators
- No cable run from switch to inlet box included
- Some buyers report a missing 240V bridging bar
The 31406CWK is the kit we keep coming back to because it removes almost every decision. It arrives with the transfer switch, the power inlet box, the power cord, and the wire connectors already in the box, and it is rated 30 amps across six circuit positions for generators up to 7500 running watts.
What we like most is the pair of watt meters on the face of the enclosure. They show the draw on both split phases at a glance, which is the difference between guessing and knowing when a well pump kicks on while the refrigerator compressor is already running. For a homeowner who has never run a load calculation, that feature alone justifies the kit.
Owners consistently describe this as a complete, well-built package that performs through real outages, and Reliance Controls support is frequently called out as a genuine advantage when something needs explaining. The dimensions are 4.5 by 7 by 7.5 inches, which is compact enough for a garage wall or a panel room without crowding the load center.
The honest weakness is the factory wiring. Push-on fast-on terminations can arrive loose, and several owners report needing to re-seat them with pliers before the switch behaves predictably. That is a ten-minute fix, but it is a fix you should know about before the panel comes off.
Does it fit your generator plug
The included cord terminates in a 4-prong L14-30R, which matches the 30-amp outlet on most 6,000 to 7,500 watt portable generators. If your machine has a 3-prong L5-30 outlet, you will need a bridged adapter, and that is the single most common complaint paired with this kit.
Because the enclosure is not weather-rated, plan on mounting it indoors and running the inlet box outside. The load side design means the grid connection is physically isolated while the switch is in the generator position, which is exactly the backfeed protection you are paying for.
When to pick a different kit
If you routinely need more than six branch circuits, or you want to run a 240V appliance such as a well pump or a clothes dryer on generator power, the six-position layout will feel tight. In that case the ten-circuit kits below give you room to grow without changing amperage.
For buyers who want the same core reliability with more branch positions, the Reliance 31410CRK in position three is the natural step up. If you would rather have the ten circuits in a weather-rated box, the Connecticut Electric kit in position two is the better-matched enclosure for an exterior switch location.

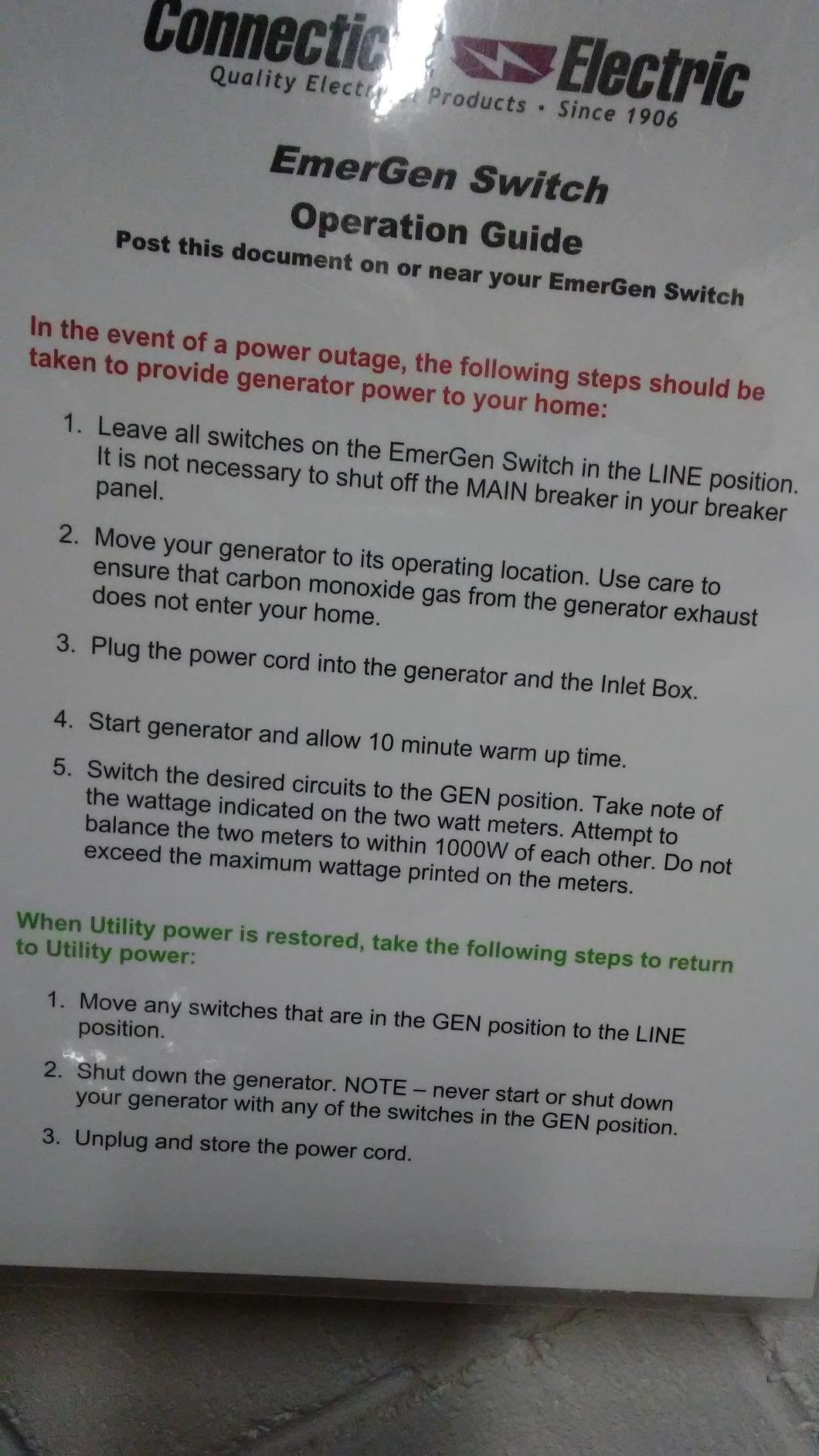

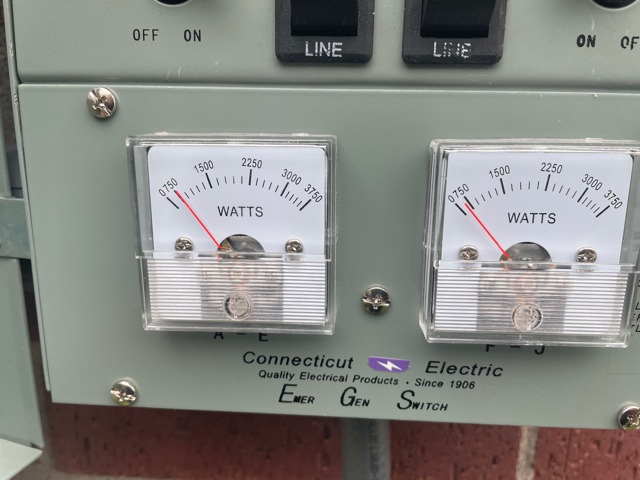

2. Connecticut Electric EmerGen 30 Amp 10-Circuit Kit
Connecticut Electric EmerGen Transfer Switch Kit – 30 Amp, 10-Circuit, 10-Foot Cord, 7500 Watts, for Generator
30 amps
10 circuits
7500 watts
NEMA 3R
ETL listed
Pros
- Ten circuits in a 30 amp frame
- Removable tie bars convert 240V to 120V positions
- NEMA 3R allows indoor or outdoor mounting
- Double-throw rockers block backfeeding
- Compatible with major residential load center brands
Cons
- Bulky at 11.5 by 20.5 by 14.5 inches
- Plastic body feels less rugged than all-steel cabinets
Where the Reliance 6-circuit kit prioritizes compactness, this one prioritizes flexibility. Ten circuit positions in a 30-amp frame means you can run a generous list of essentials and still have room to add a circuit later without replacing the enclosure.
The most interesting feature is the tie bar system. Four of the positions are 2-pole 240V circuits, and pulling the tie bars lets you convert them into pairs of 120V circuits. For a homeowner whose list mixes a refrigerator, some lighting, a sump pump, and internet equipment, that reconfiguration is often the difference between fitting the load list and trimming it.
Reviewers highlight the circuit count, the ability to reconfigure 240V positions, and the confidence that double-throw rocker switches provide against back-feed. ETL listing is present, and the manufacturer lists compatibility with Challenger, Cutler Hammer, GE, Homeline, Siemens, Square D, and Westinghouse load centers, which covers the overwhelming majority of residential panels in service today.
The criticism is physical. At 11.5 by 20.5 by 14.5 inches, this is a large box, and the plastic body does not inspire the same confidence as a powder-coated steel cabinet when you are mounting it in a damp garage or utility room.
Can it go outside
Yes, and that is where this kit separates itself from most of the 30-amp field. The NEMA 3R rainproof rating means the switch and inlet can be mounted indoors or outdoors, so homes without a convenient interior spot beside the main panel still have a clean installation path.
The wattage ceiling is 7500 watts, which lines up with a mid-size portable generator. If you own something larger, or plan to buy one, a 50-amp kit is the correct match and pairing a 30-amp kit with a bigger machine wastes the capacity you already paid for.
What the bulk costs you
Before you commit, measure the wall beside your load center. This enclosure needs real clearance, and a cramped install often ends with a surface mount on the wall beside a flush panel, which is workable but looks improvised.
Homeowners who want the same ten circuits in a more compact footprint and are happy to mount indoors usually prefer the Reliance 31410CRK. Those who need 240V appliances on generator power should skip ahead to the 50-amp options instead.

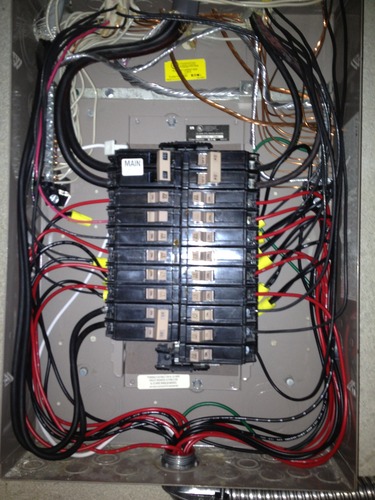

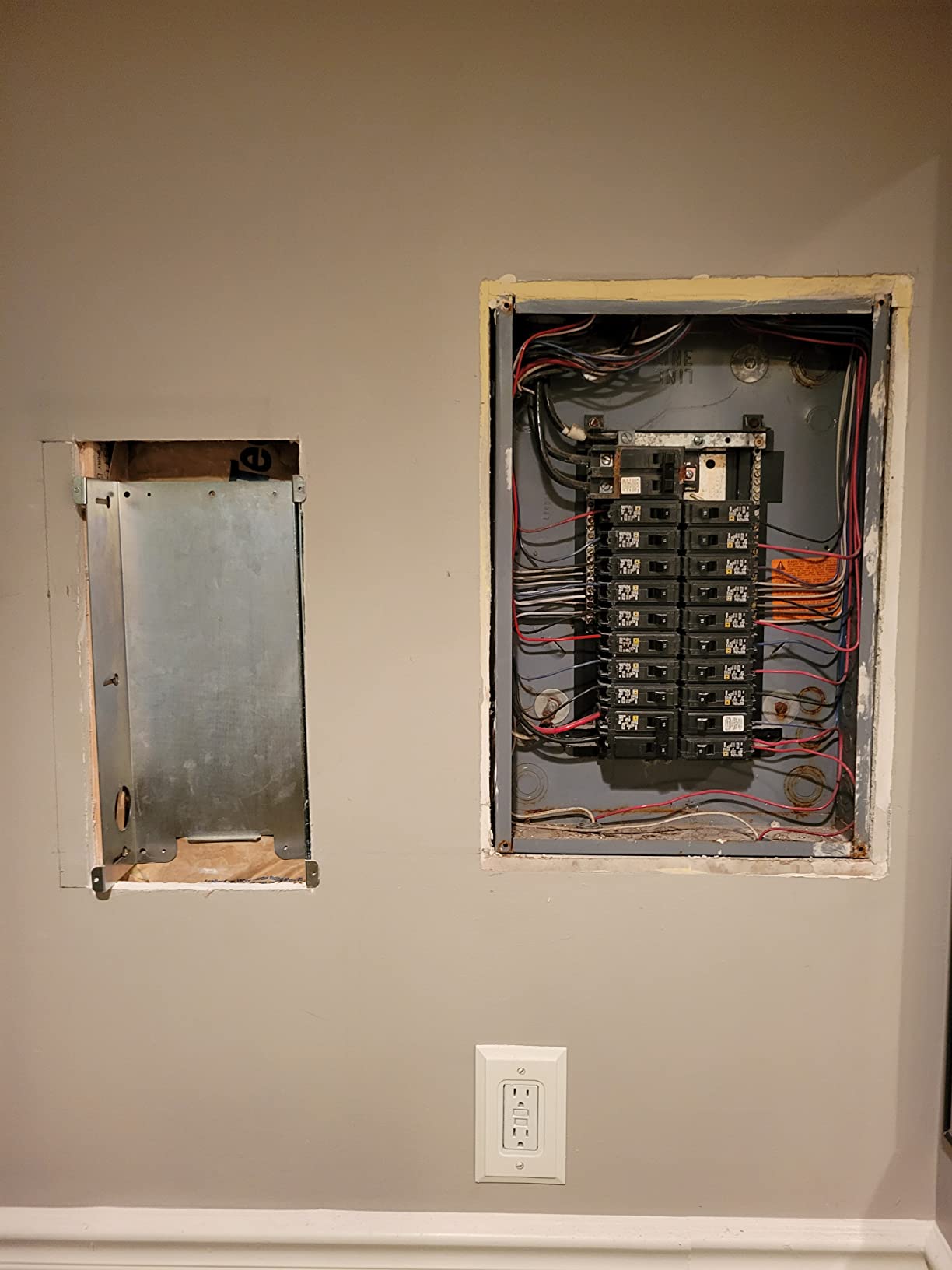

3. Reliance Controls 31410CRK Pro/Tran 10-Circuit Kit
Reliance Controls 31410CRK Pro/Tran 10-Circuit 30 Amp Generator Transfer Switch Kit,Gray
30 amps
10 circuits
7500 watts
cULus listed
Indoor only
Pros
- Up to 10 single-pole or 5 double-pole circuits
- 18 inch flexible conduit whip simplifies the run
- Powder-coated steel cabinet
- Includes switch inlet box and power cord
- cULus listed with 5-year warranty
Cons
- Not weather-rated so it must be mounted indoors
- Surface mount format is bulkier than flush kits in tight panel spaces
The 31410CRK is the ten-circuit answer from the same manufacturer as our top pick, and it shares the Pro/Tran approach of giving you a complete kit rather than a switch alone. It handles up to 10 single-pole circuits or 5 double-pole circuits within a 30-amp frame, and it is rated for portable generators up to 7500 maximum running watts.
The detail we appreciate most is the 18-inch flexible conduit whip. It attaches directly to the load center, and installers tell us it removes the fiddly part of the job where you are trying to fish conductors through a tight knock-out. The cabinet is powder-coated steel with six combination knockouts, which makes the layout decisions easier later.
Owners value the 10-circuit capacity, the generous conduit whip, and the durable steel cabinet. At 7 by 4.5 by 13.75 inches and 15 pounds, it is narrower than the Connecticut Electric enclosure and installs comfortably on a wall beside a typical 200-amp panel.
The clear limitation is the IP00 rating, which means indoor mounting only. That is fine in a finished basement or garage, but it removes the option of putting the switch itself on an exterior wall, and the cord-to-inlet run then has to travel back through the wall.
How many circuits you actually need
Count the branch circuits you want on generator power, not the circuits you have. A realistic essentials list for many families runs seven to nine items, which is where a 10-position kit starts to feel right and a 6-position kit starts to feel tight.
Remember that a double-pole 240V circuit such as a well pump or a range consumes two positions. If those loads are on your list, plan the jumper positions accordingly before the electrician arrives.
Where this loses to its competitors
If your install has no good indoor wall space, the Connecticut Electric kit in position two is the better choice because of its NEMA 3R rating. If you want 50-amp headroom for larger 240V loads, this kit caps out at 7500 watts and the 50-amp models are a better target.
Its review history is also among the longest in this roundup, which gives you a much longer field record than the newer value-tier imports that have only a few dozen ratings.

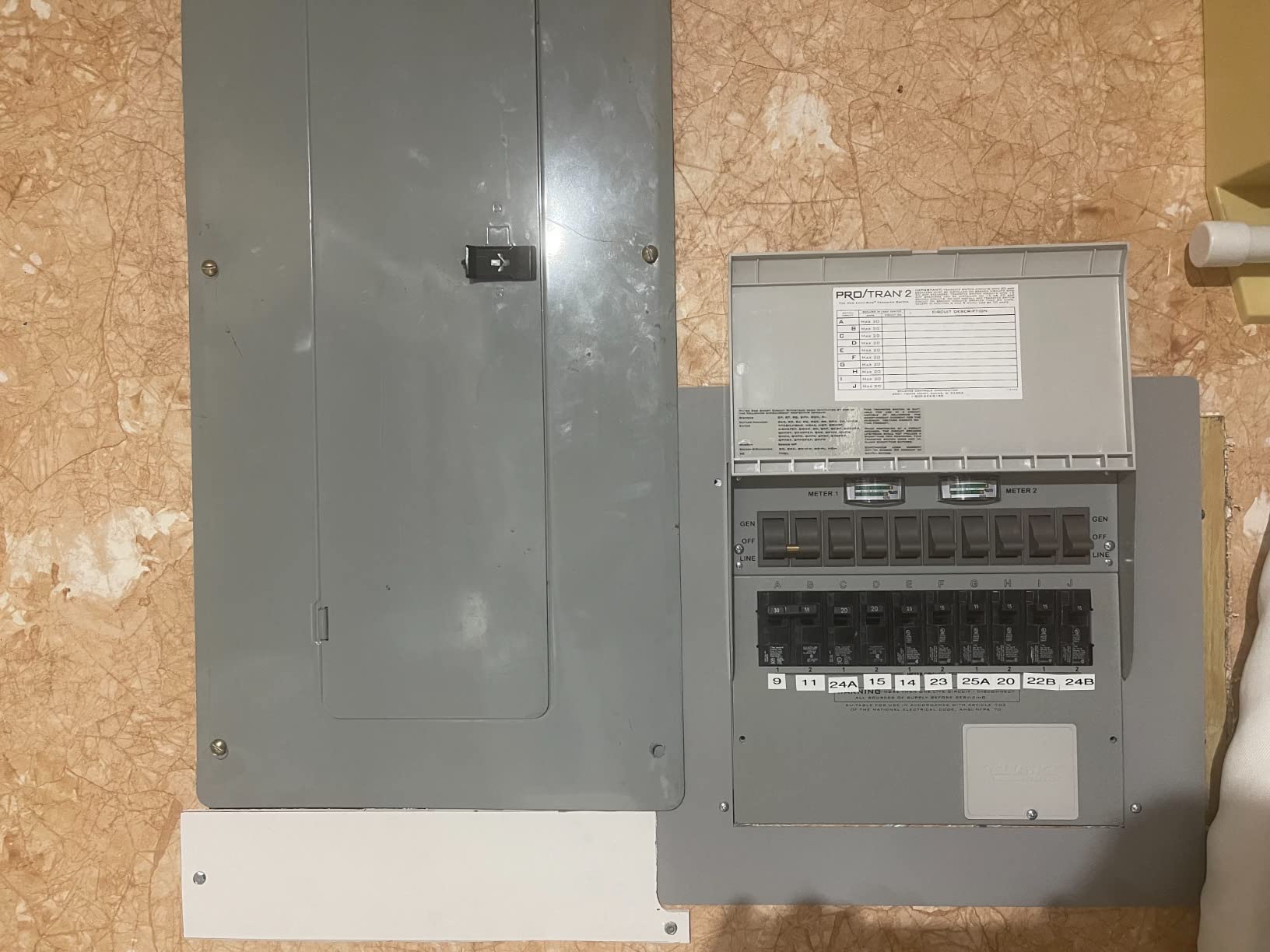

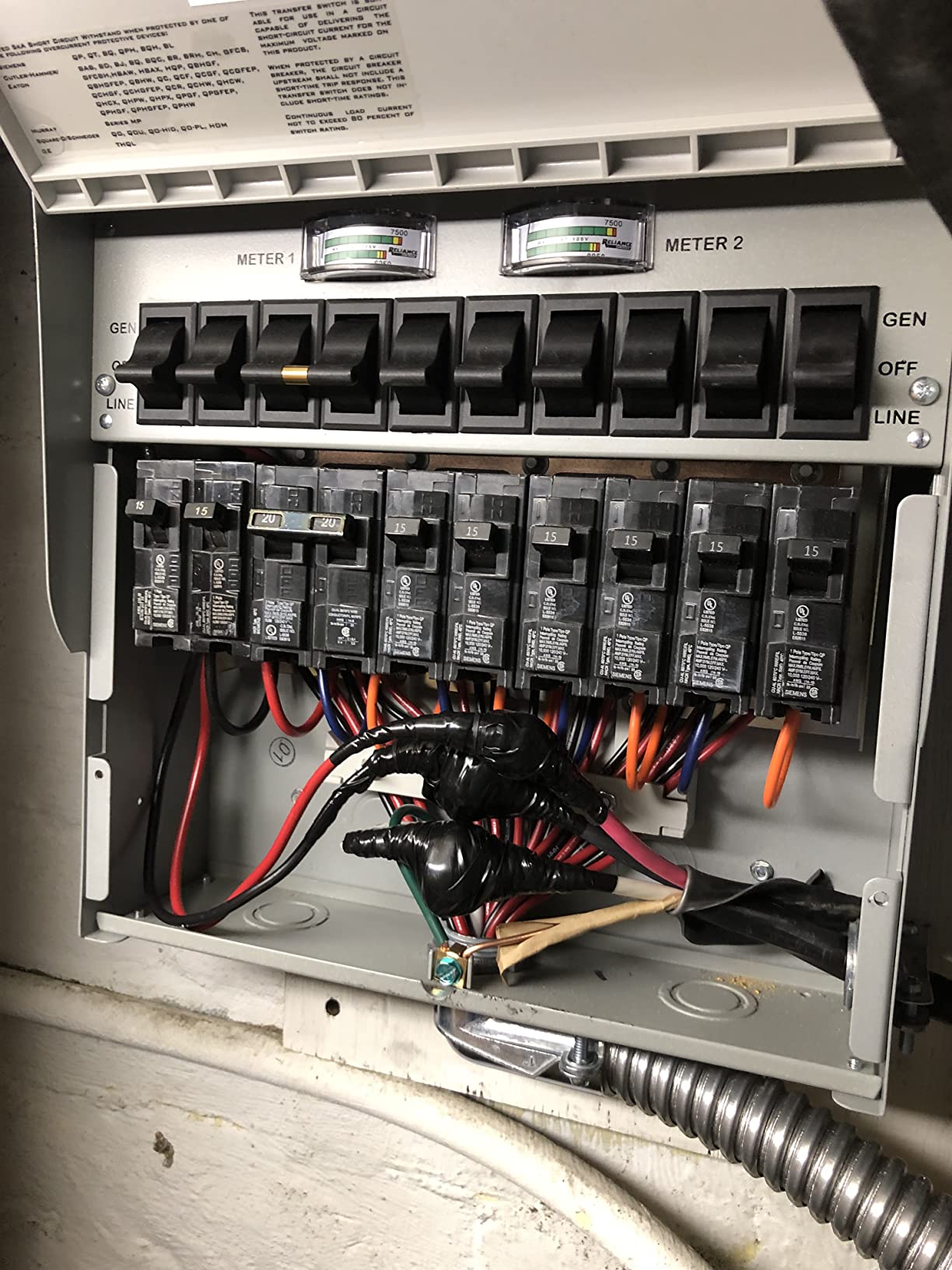

4. Reliance Controls A510C Pro/Tran2 50 Amp 10-Circuit Switch
A510C Pro/Tran2 50-Amp 10-Circuit 2 Manual Transfer Switch
50 amps
10 circuits
12500 watts
UL listed
Brass contacts
Pros
- 50 amp capacity gives real headroom for larger generators
- Ten positions yield a useful mix of 240V and 120V
- Each circuit selects utility generator or off
- Brass contacts and alloy steel enclosure
- UL listed and usable for solar and inverter tie-ins
Cons
- Indoor installation only
- Plastic switch handles and cover feel less rugged than the box
- Instructions are limited for first-time installers
- Wiring through the 1 inch conduit whip is tight
The A510C is where you land when your generator is big enough to matter. At 50 amps and 12500 watts, it opens the door to 240V loads such as a central HVAC system, a water heater, or a well pump, which no 30-amp kit can serve properly.
What separates this from a converted 30-amp kit is the per-circuit control. Each of the ten positions can be set to utility, generator, or off, which means you can deliberately shed the load you do not need and keep the load you do. With a 50-amp generator that is a meaningful advantage rather than a cosmetic one.
Experienced installers rate this switch highly for build quality, with brass contacts and an alloy steel enclosure that suit long standby service. It is UL listed, and several buyers report using it successfully to tie in solar or battery inverter systems alongside a generator, which is not something we would have expected from a portable-oriented switch.
Recurring negatives are the indoor-only rating, tight conduit routing, and thin documentation. The 1-inch flexible conduit whip is a squeeze for the number of conductors this switch needs, and owners frequently recommend stepping up to 1.25-inch or larger conduit.
Do you actually need 50 amps
Look at your generator’s running watts and its plug. If your machine has an L14-50 outlet, you need this class of switch. If it has an L14-30 outlet, a 30-amp kit matches your equipment and buying 50 amps only adds unused capacity.
This is the mismatch that forum readers complain about most often, and it is worth getting right before ordering. A 50-amp switch paired with a 30-amp generator leaves you with an expensive box that is still limited by the smaller machine.
How it compares to the 12-circuit alternative
Against the Nature’s Generator 50-amp kit in position six, this switch has the better contact materials and the UL listing, but that unit gives you twelve configurable positions and a 50-amp inlet in the box. The Nature’s unit is the better fit if branch count matters more than metallurgy.
One important note: this is a switch, not a full kit. The included components list does not include a power inlet box or cord, so plan for a separate order and confirm your cord length against the generator’s distance from the house.

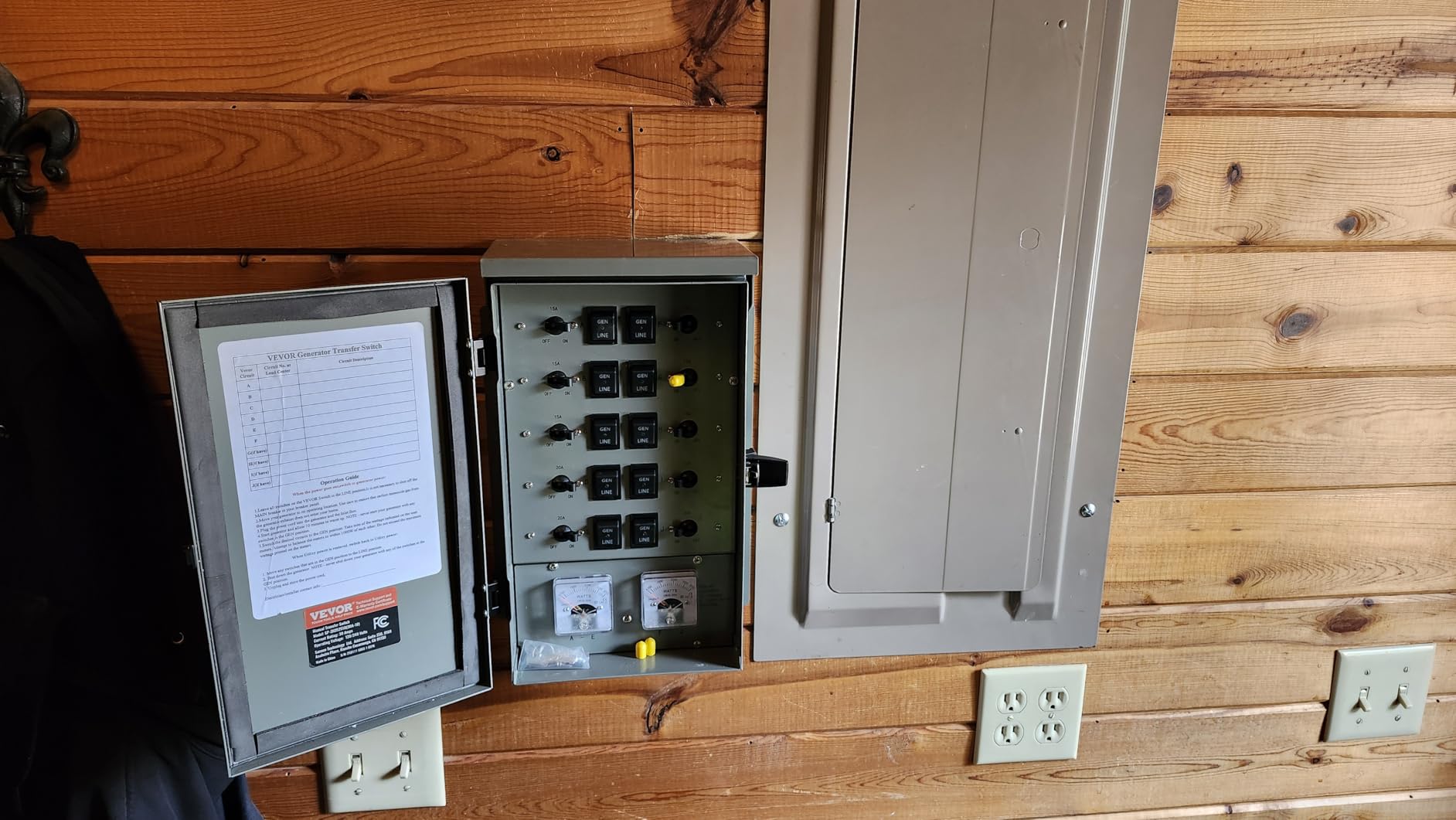

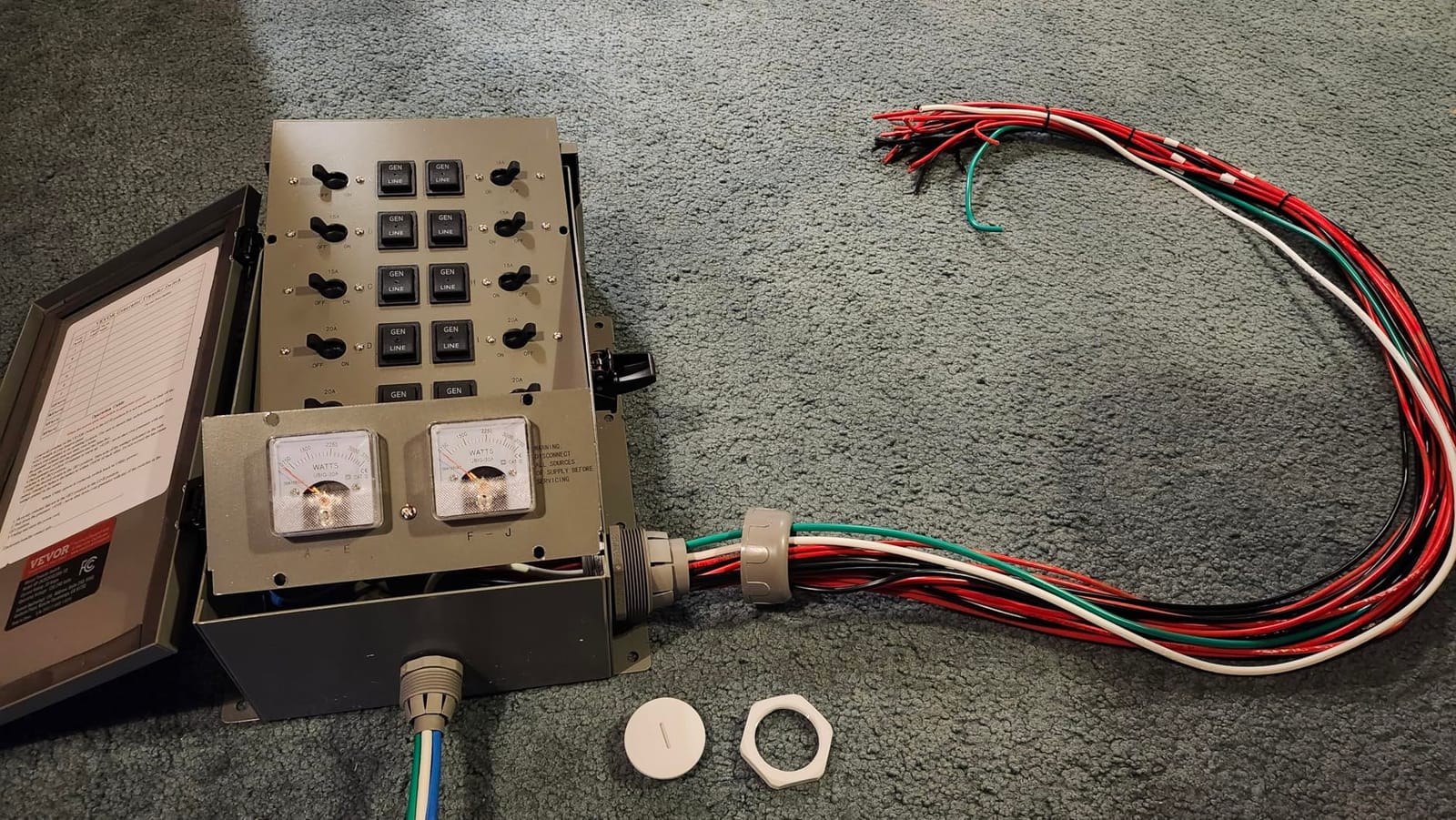

5. VEVOR 30 Amp 10-Circuit Prewired Kit
VEVOR Manual Transfer Switch, 30-Amp 10-Circuit, Prewired Generator Transfer Switch Kit with NEMA L14-30P Power Inlet Box, Double-Throw Switch, NEMA 3R, Mechanical Watt Meter, for 7500W Generators
30 amps
10 circuits
7500 watts
NEMA 3R steel
Pre-wired
Pros
- Pre-wired with clearly labeled conductors to shorten install time
- NEMA 3R weatherproof steel enclosure works indoors or outdoors
- Built-in mechanical watt meter for load monitoring
- Double-throw switch with a built-in mini circuit breaker
- 30 amp 10-circuit capacity for generators up to 7500 watts
Cons
- Small review base so long-term reliability is less documented
- No cULus or ETL listing mark on the equipment
The VEVOR kit is the one in this roundup where the spec sheet competes with kits from much longer-established electrical brands. Thirty amps, ten circuits, 7500 watts, a prewired NEMA L14-30P inlet box with a protective lid, a double-throw switch, and a mechanical watt meter in a NEMA 3R steel enclosure.
The build includes a built-in mini circuit breaker for overcurrent protection, and the steel case is rated for both indoor and outdoor placement, which is a genuine advantage over several Reliance models. The watt meter gives a first-time owner the same load visibility the Reliance 31406CWK offers through its twin meters.
Owners who have installed it cite strong value for money, a clear pre-wired layout, weatherproof construction, and useful watt metering. At 19.6 pounds the unit has some heft, which is a reasonable sign that the cabinet is not hollow.
The reservations are honest ones. The review base is thin at 30 ratings, so long-term field reliability is not well documented the way it is for the Reliance products, and the listing does not carry the cULus or ETL mark that buyers in forums say they check first before purchasing.
Is the certification gap a real problem
It depends on your inspection authority and your insurer. Some local electrical departments work from a list of approved equipment and will ask you to prove listing, while others accept a manufacturer declaration. Forum users who buy unlisted equipment report that the question rarely comes up during a sale but can complicate an insurance claim after a fire.
If you want a listed product at this capability level, the Connecticut Electric kit in position two is the alternative, and it carries an ETL mark with a far longer review history.
Who should buy this kit
This is the option for a homeowner with a solid electrical background, a flexible inspector, and a firm plan to keep the load list modest. It is not the option for a first-time installer who wants a phone number to call if something behaves oddly.
Because the wattage ceiling is 7500 watts, keep it matched to a mid-size portable generator. Buyers planning a move to a 50-amp generator later would be better served by a 50-amp kit they will not have to replace.

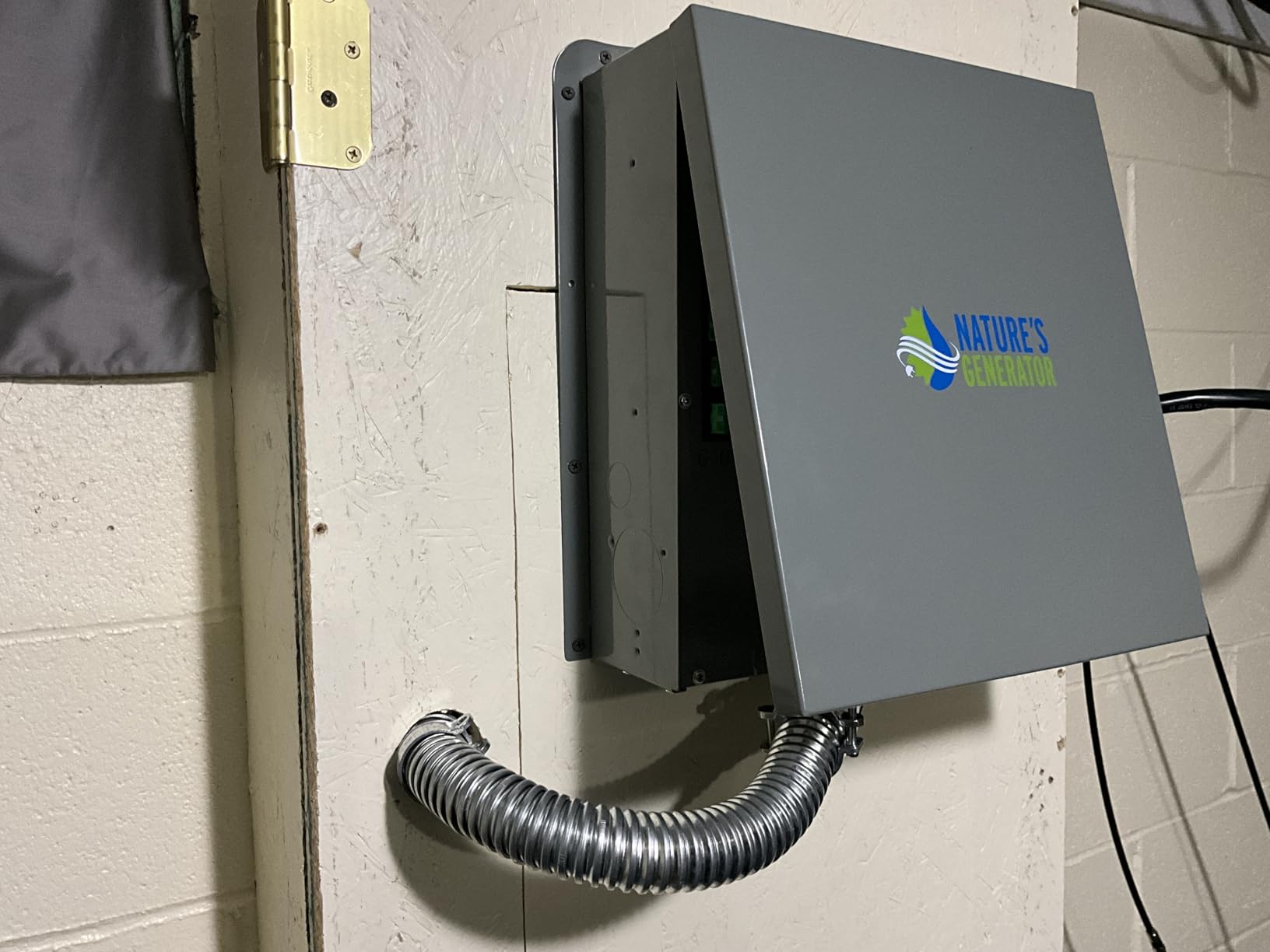

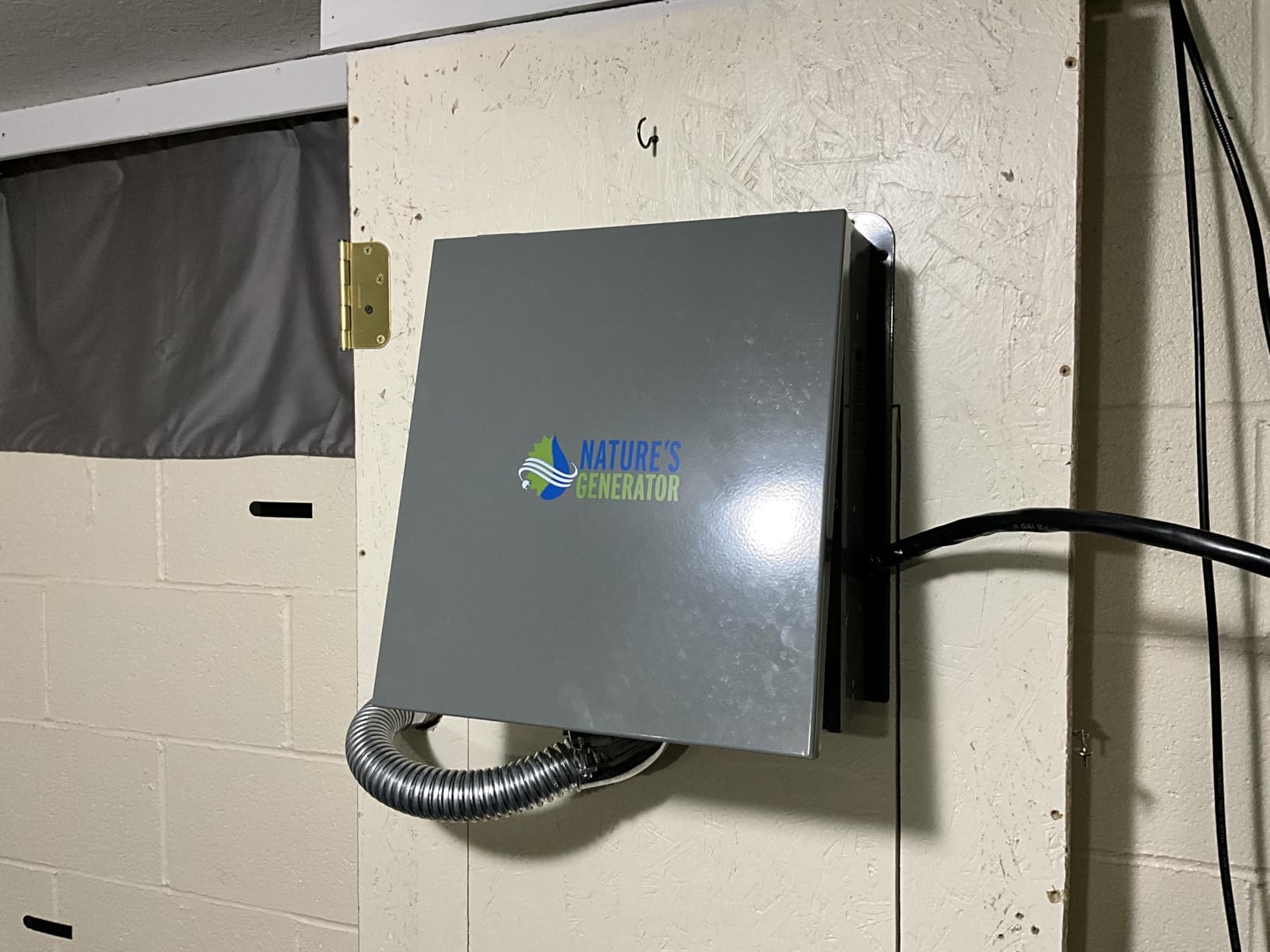

6. Nature’s Generator 50 Amp 12-Circuit Kit
Nature’s Generator 50 Amp Manual Transfer Switch 12-Circuit 120/240V, UL Listed Non-Automatic Power Transfer Kit with CS6375 Inlet, Pre-Wired Indoor for Portable Generator
50 amps
12 circuits
12000 watts
UL listed
IP67
Pros
- Twelve configurable positions with standard interchangeable breakers
- Accepts standard interchangeable breakers including 20 amp models
- Works with gasoline diesel propane and lithium power stations
- Illuminated rockers and LED toggles show status
- UL listed with IP67 rating and steel housing
Cons
- Indoor rated so the included inlet is awkward to terminate with stiff 6/3 Romex
- Older AFCI breakers in the main panel may trip on transfer
- No per-leg amperage monitoring without adding meters
- Wire-identification nibs detach easily
This is one of the most configurable switches we reviewed. Twelve circuit positions in a 50-amp frame means you can arrange it as twelve 120V circuits or six 240V circuits using interchangeable breakers, and because those breakers are standard, you are not hunting for a proprietary part in a few years.
The kit includes a CS6375 50-amp inlet, an inlet box, a 50-amp power cord, and pre-wired components, with conduit and cable clamps included. That is one of the more complete boxes in this roundup, and the illuminated rocker and LED toggles are a thoughtful touch for someone operating it in a dark garage at 3am.
Buyers like the flexibility of 12 interchangeable circuits, the near plug-and-play wiring, and the visible status indicators. The 12000-watt ceiling pairs naturally with a 50-amp portable generator, and the UL listing is one reason it appears alongside the better-known brands on retail shelves.
The recurring complaints concern the indoor-only inlet box, which is difficult to terminate with stiff 6/3 Romex, the absence of per-leg watt meters, and easily detached wire markers. Owners with older AFCI breakers in the main panel also report nuisance tripping on transfer, which may mean replacing those breakers during the install.
Is it compatible with battery power stations
Yes, and that is a real differentiator. The manufacturer lists compatibility with gasoline, diesel, propane, lithium power stations, solar, and micro hydro sources, which makes this a sensible pairing if part of your backup plan is a portable power station rather than only a combustion generator.
Just confirm the wattage math. A 50-amp, 12000-watt switch is sized for a large portable generator, and a modest power station will not come close to that ceiling, so many of the positions will simply never be used.
How it stacks up against the Reliance 50-amp switch
Against the Reliance A510C, this kit wins on position count and on including the inlet and cord in the box. It loses on contact metallurgy, on the feel of the enclosure hardware, and on the depth of its long-term field record.
If your electrician is comfortable with interchangeable breakers, this is the more adaptable choice. If you want the strongest contact materials for a permanent installation, the Reliance unit is the safer bet.
7. Generac RXSW100A3 100 Amp Automatic Transfer Switch
Generac 100 Amp Legacy Automatic Generator Transfer Switch, SE Rated
100 amps
24000 watts
Open transition
Smart AC module
5 year warranty
Pros
- Automatically senses an outage starts the standby unit and transfers the panel
- Open transition mechanically isolates utility and generator
- 100 amp rating backs up the full 120V and 240V panel
- Smart AC module sequences up to four HVAC loads
- NEMA 3R aluminum enclosure tolerates outdoor mounting
Cons
- Only works with Generac standby generators using Evolution or Nexus controls
- Service entrance rated so a licensed electrician and permit are required
- Generator inlet wiring and cord are not included
The RXSW100A3 is a different category of device. It is a 100-amp service-entrance automatic transfer switch rated for 24000 watts of whole-home backup, built to sit at the service entrance and transfer the entire panel rather than a selected list of circuits.
Because it is automatic, it senses the outage, signals a compatible standby generator to start, and transfers the load within seconds. The open transition design mechanically isolates the two sources, which is what prevents backfeed into the utility grid. Its rating is the highest of the ten kits we reviewed, at 4.9 stars.
Owners describe this as a smooth, code-compliant route to automatic whole-home transfer, and the Smart AC module is the standout feature because it sequences up to four HVAC loads without extra hardware. The NEMA 3R powder-coated aluminum enclosure handles outdoor mounting, and the warranty runs five years.
The constraints are structural. It only works with Generac standby generators using Evolution or Nexus controls, it is service-entrance rated so a licensed electrician and a permit are mandatory, and the generator, inlet wiring, and cord are separate purchases entirely.
Is this a portable generator solution
No. This is a standby system component. If you are running a portable generator that you pull out of the shed during an outage, this switch does nothing for you and the cost profile is wrong for the job.
A portable generator owner who wants automatic behavior without buying a standby unit should look at the GenerLink switch in position eight, which brings panel-wide transfer to a portable machine at the 10000-watt class.
What the service entrance rating changes
Service-entrance rated means this device becomes part of your home’s service equipment. That changes the install fundamentally: permits, inspection, utility coordination, and a licensed electrician are no longer optional, and the work may require a service upgrade if your panel is older.
If you are still deciding whether standby power is the right direction, our automatic transfer switch guide covers the category decisions in more depth before you commit to a service-entrance install.
8. GenerLink 40 Amp Automatic Transfer Switch
GenerLink Automatic Transfer Switch for Home Generator w/Surge, 40AMP
40 amps
10000 watts
75kA surge protection
UL 1008M listed
Wi-Fi
Pros
- Transfers to the entire panel with no circuit limit
- Installs behind the existing generator power meter quickly
- Integrated 75kA surge protection with an audible alarm
- UL 1008M listed and compliant with the 2020 National Electrical Code
- UV-resistant weatherproof housing with a 20 foot GenerLok cable
Cons
- One of the highest prices among portable-generator transfer devices
- The included L14-50 cord may not match a given generator's outlet without an adapter
- Requires coordination with a utility or a licensed electrician to install
GenerLink sits in the gap between a manual subpanel and a permanent standby system. It mounts behind your existing generator power meter and transfers the whole breaker panel automatically, with no limit on circuits, using a portable generator up to 10000 watts.
What makes it distinctive is the surge protection. The unit integrates 75kA surge protection with an audible alarm for spike events, which is meaningful in a device whose job is to sit between your generator and everything in the house. It is UL 1008M listed and compliant with the 2020 National Electrical Code, and the housing is UV-resistant and weatherproof for outdoor mounting.
Owners treat it as a close second to a whole-house standby generator, praising the quick install, code compliance, surge protection, and the fact that it is portable enough to move to a new home. It connects over Wi-Fi and uses brass and stainless steel contacts, and it includes a 20-foot GenerLok power cable with an L14-50 connector.
What you give up for the convenience
This is the device in the category that sits furthest from the rest of the field, and the main reason experienced homeowners on forums still argue for interlock kits is the gap between the two approaches. You are paying for automatic transfer, panel-wide coverage, and surge protection rather than a fixed list of branch circuits.
The cord connector is the practical trap. It ships with an L14-50 connector, so a generator with a different outlet means an adapter, and adapter quality on a 50-amp connection is not something to improvise. Verify your generator’s outlet before ordering.
How it compares to manual kits
A manual 30-amp kit lets you pick exactly which circuits run and keeps you in control of load. GenerLink removes that control by transferring the whole panel, which means your generator must cover whatever the panel tries to draw, or you manage that with breaker positions instead.
Users with Generac standby systems tend to value automatic switching more, while portable-generator owners frequently report that manual switching is perfectly acceptable because they are home for the outage anyway. That is the core tradeoff this device is trying to close.

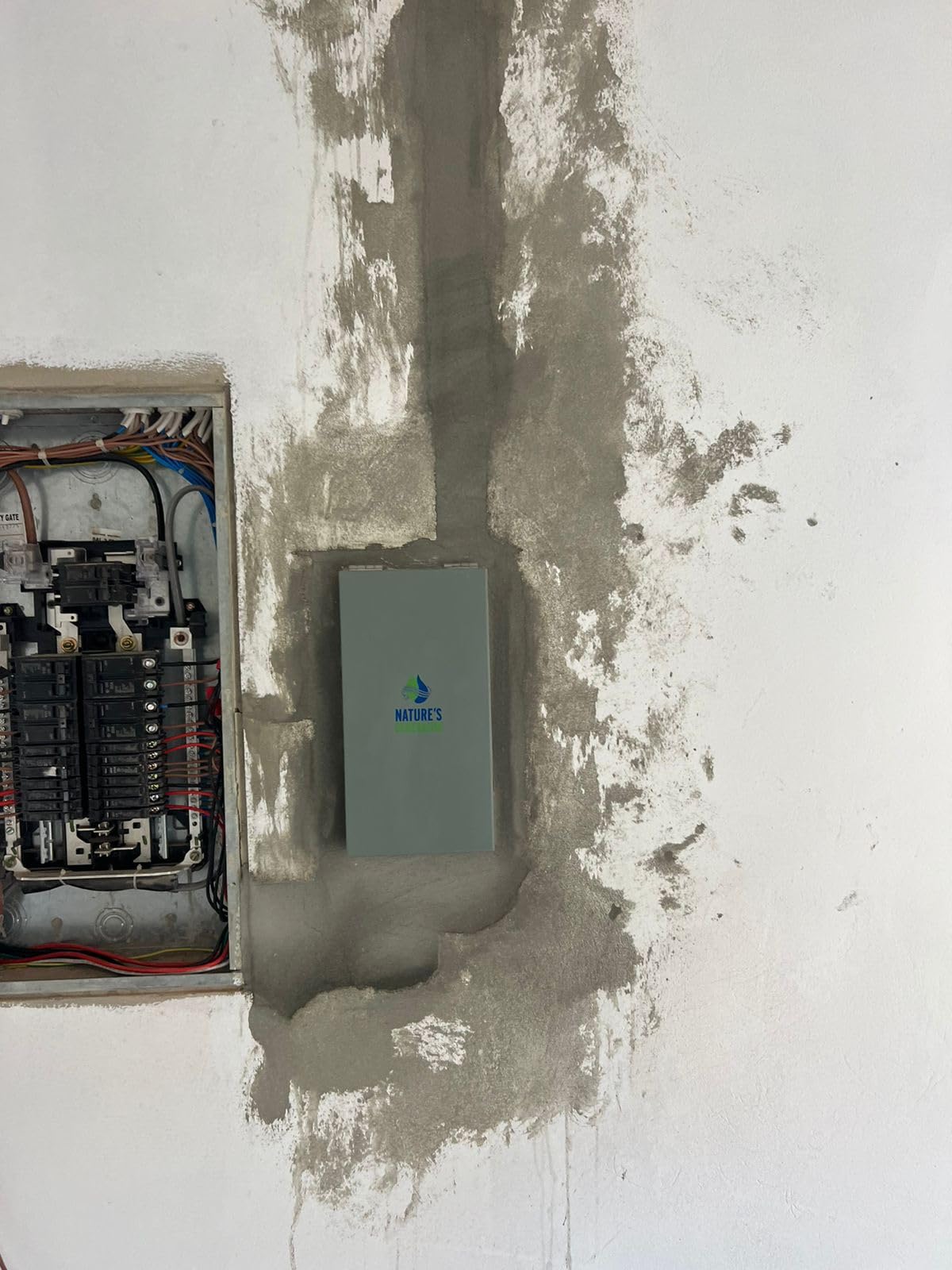

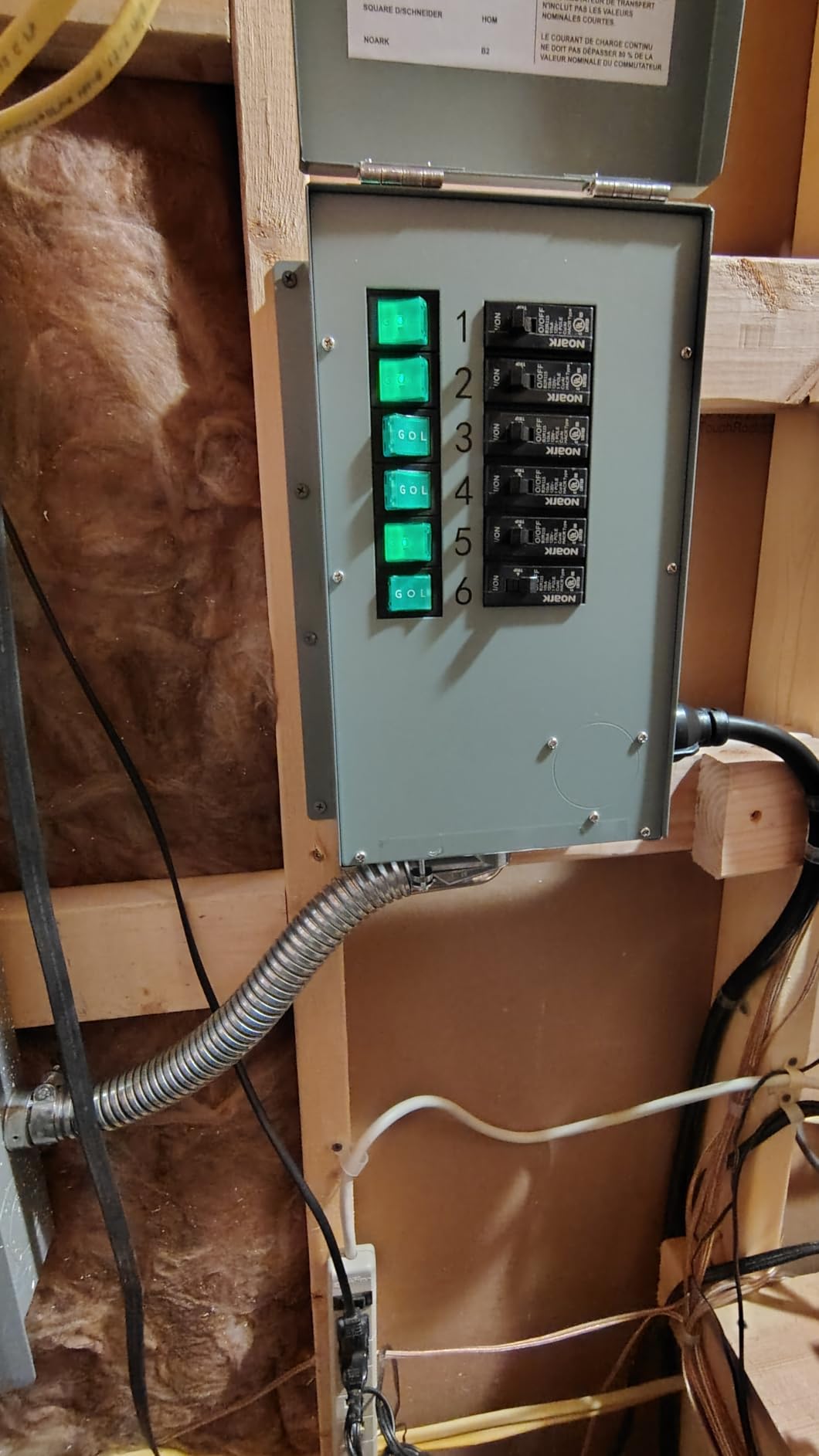

9. Nature’s Generator 30 Amp 6-Circuit Kit
Nature’s Generator 30 Amp Manual Transfer Switch 6-Circuit 120V, UL Listed Non-Automatic Power Transfer Kit, Pre-Wired Indoor for Portable Generator
30 amps
6 circuits
3600 watts
120V only
UL listed
Pros
- Simple entry point covering fridge lights and a sump pump
- Pre-wired design shortens the install and reduces wiring errors
- Illuminated rockers show generator power per circuit
- Works with gasoline diesel propane and lithium power stations
- UL listed with an IP67 steel enclosure
Cons
- Indoor installation only
- 120V only so it cannot back up a dryer or well pump
- Wall-mount format needs clearance beside the main panel
This is the smallest useful kit in the roundup, and for a lot of homes it is exactly the right size. Thirty amps across six 120V circuits rated to 3600 watts covers the essentials list that shows up over and over in homeowner discussions: refrigerator, lights, internet router and modem, a furnace blower, and a garage door opener.
It is pre-wired and includes an L5-30P 30-amp inlet, a 30-amp power cord, conduit, and cable clamps. The illuminated rocker switches show which circuits are actually on generator power, which removes a lot of guesswork in a dark panel during an outage.
Buyers consider it a straightforward, well-made kit for keeping essential 120V loads running, with pre-wiring and illuminated rockers as the most-praised details. It is UL listed with an IP67 steel enclosure, and the AFCI and GFCI breaker compatibility matters if your main panel has those newer breaker types.
The limitations are centered and clear. It is an indoor installation, and it is 120V only, which means it simply cannot carry a clothes dryer, a range, or a well pump. The 13 by 9 by 4 inch wall-mount format also needs real clearance beside the main panel.
Is 3600 watts enough
It is enough if your load list is genuinely modest. A refrigerator running at a few hundred watts, LED lighting, a router, and a furnace blower together usually stay inside that ceiling with room for motor startup on a sump pump.
It is not enough the moment you add a 240V appliance. If a well pump, an electric water heater, or central air is on your outage list, move up to a 50-amp kit rather than planning to stretch this one.
How it compares with the Reliance 6-circuit kit
Both occupy the same slot in the market, and the differences are instructive. This unit is UL listed with an IP67 steel housing and illuminated switches, while the Reliance 31406CWK is cULus listed, smaller, and adds twin watt meters, which is the feature that helps you avoid overloading a generator.
If your load list is short and mostly 120V, either works. If you want load visibility during an outage, the watt meters on the Reliance kit are the deciding factor, and we chose it as the overall pick for that reason.
10. Generac HomeLink 9854 50 Amp Manual Kit
Generac HomeLink 50 Amp Portable Generator Manual Transfer Switch Kit
50 amps
10 to 16 circuits
12000 watts
NEC 702 interlock
Multi-listed
Pros
- 50 amp capacity supports 12000 watts for well pumps and HVAC
- Mechanical interlock meets NEC Article 702
- Multi-listed for Siemens Eaton and Square D breakers
- Expands from 10 to 16 circuits and upgrades to automatic later
- Includes wiring harness conduit fittings and indicator lights
Cons
- Transfer switch panel is NEMA 1 for protected indoor mounting only
- Power inlet box and cord are only included with kit model 9855
- Heavy 26 pound enclosure needs solid wall space
The HomeLink 9854 is the one to buy if you think you might want standby power later. It is a 50-amp manual transfer switch rated for 12000 watts of 120/240V single-phase load, handling up to 10 hard-wired circuits and expanding to 16 with interchangeable breakers.
The upgrade path is the headline. Because the controller is the only part that differs, a homeowner who starts with the manual unit can convert to automatic standby for an 11 kW Generac engine by swapping the controller instead of replacing the whole enclosure. That is unusual flexibility for a portable-generator-adjacent product.
Owners value the 50-amp headroom, the code-compliant mechanical interlock under NEC Article 702, and the broad breaker compatibility. It is multi-listed for Siemens, Eaton, and Square D one-inch standard, tandem, GFCI, and AFCI breakers, so most existing panels need no breaker swap. The kit includes a wiring harness, ENT conduit and fittings, indicator lights, and a 12-inch pre-wired whip.
Check the model number before ordering
This is the most important practical note in this section. The power inlet box and generator cord are only included with kit model 9855, so verify which number you are actually buying before you commit. A switch-only purchase leaves you ordering the inlet and cord separately.
The panel itself is NEMA 1, meaning protected indoor mounting only. At 26 pounds with a 15.4 by 15.8 by 4 inch footprint, it needs a solid wall and real clearance. It also carries the lowest average rating in our roundup at 4.4 stars, with about 8 percent of reviews at one star.
Who this suits and who it does not
This suits a homeowner who already owns a 50-amp Generac or plans to, who has 240V loads to cover, and who wants a path to automatic standby without replacing hardware later. Those three conditions rarely all line up, which is why it sits at the back of our ranking rather than higher.
For a Generac owner who does not need 240V loads, the Reliance 31406CWK is a better fit and has a far stronger review record. For someone who wants automatic behavior from a portable generator today, the GenerLink switch in position eight is the closer match.
How to Choose the Right Transfer Switch Kit
Start from your generator, not the switch. That inversion is the single most useful piece of advice in this category, and it is the step most people skip. Write down three things about the machine you own or are about to buy: its running watts, its surge watts, and the shape of its outlet.
Running watts is the number that sizes the switch. Up to 7500 watts matches a 30-amp kit, 7500 to 12,500 watts calls for 50 amps, and anything larger pushes toward 60 amps and above or a service-entrance automatic switch. Surge watts matters for motor loads, because a sump pump or a well pump can draw several times its running figure for a second at startup, and that spike is what trips an overloaded generator.
The outlet shape is the second filter. A 4-prong L14-30 outlet on the generator needs a kit with an L14-30 inlet and cord. An L5-30 outlet on a 3-prong machine needs a matching kit or a bridged adapter. An L14-50 outlet needs a 50-amp kit. Buying the wrong plug type is the most common reason for a return, and it is entirely avoidable.
Third, count the circuits honestly. List what you want running during an outage, not what you might someday want. A 6-circuit kit suits a short list, a 10-circuit kit gives room to grow, and a 12-position layout suits households with several 240V loads. Remember that each 2-pole 240V circuit consumes two positions.
Fourth, verify the listing. Buyers consistently check for a cULus or ETL mark and a stated compliance with the National Electrical Code, and that is the signal that the switch is a real piece of electrical equipment rather than a generic import. Unlisted equipment is not automatically unsafe, but it can complicate an inspection and an insurance claim, which is exactly the concern raised in homeowner forums about marketplace kits.
Fifth, look at the enclosure rating. NEMA 3R units can be mounted indoors or outdoors, while NEMA 1 and IP00 units are for protected indoor spaces only. If your only convenient location is an exterior wall, that single spec narrows your options significantly.
Sixth, check the neutral configuration of your generator. Many portable generators have a bonded neutral, and a bonded unit cannot be used with a neutral-switching transfer switch without modification. This is an obscure compatibility point, but electricians raise it on forums regularly and it can stop an install cold.
Seventh, decide how many things actually ship in the box. Our top pick bundles the switch, inlet, cord, and connectors. Several others are switches only, which means a second order and a second chance for a part mismatch.
Manual vs Automatic Transfer Switches
The manual and automatic decision is really a question about whether you are comfortable walking to the panel with a flashlight. A manual switch requires you to throw a lever or rocker after the outage starts, and a prewired manual kit takes a few minutes of your attention once every few years.
An automatic switch detects the loss of utility power, signals the generator, and transfers the load within seconds. That is the right answer for standby systems, for medical baseline power, and for any household where nobody may be able to reach the panel quickly.
For most portable-generator owners, manual is plenty. Forum experience is consistent on this point: if you are home for the outage and starting the generator yourself, the automatic premium is difficult to justify. Several experienced homeowners argue that a transfer switch is unnecessary at all for portable units and prefer interlock kits for exactly this reason.
Automatic units also add failure modes and maintenance. They need periodic exercising, they depend on the generator’s control system for start signals, and service-entrance rated models bring permit and inspection requirements into the project. Our automatic transfer switch guide covers the technical differences for anyone considering that upgrade.
One middle path deserves a mention. Devices like the GenerLink switch transfer the entire panel automatically from a portable generator, which gives you standby-like convenience without a standby generator, at a cost that reflects how much of the standby experience you are buying.
Transfer Switch vs Interlock Kit
An interlock kit is a different device with the same goal. Instead of a separate subpanel that you choose circuits for, an interlock mounts on your main panel and physically prevents the main breaker from being turned on while the generator breaker is engaged. It needs no second enclosure, and it puts the whole panel on generator power.
The case for interlock kits is real, and experienced homeowners make it often. Because the interlock lives on the main breaker, there is no circuit list to maintain and no risk of an underused subpanel. The tradeoff is that you manage loads by turning breakers on and off, which requires knowing your generator’s limits cold.
The case against interlocks is equally real. Every use means a trip to the main panel to operate the lockout, and if the main panel is in a basement or a closet, that is a real inconvenience during an outage. Some jurisdictions restrict where interlocks may be used, and it is a device your electrician has strong opinions about because improper installation is dangerous.
The practical comparison comes down to control. A transfer switch gives you a curated, pre-wired list of circuits and lets the generator run at a predictable load. An interlock gives you the entire panel and makes load management your problem. For a household that knows exactly which six things it needs, a six-circuit transfer switch is cleaner. For a household that wants a broad selection without planning, an interlock is simpler hardware.
Whichever you choose, it must be installed by a licensed electrician in most jurisdictions and permitted. There is no version of this decision that is safely DIY at the main panel.
Installation, Permits, and Install-Day Expectations
Can a homeowner install a generator transfer switch? In practice, the honest answer is that an experienced DIYer with a permit in hand can do it, and most jurisdictions will require a permit and an inspection either way. A permit keeps your insurance valid and it is the single thing that separates a defensible installation from one you may regret.
The unit price is rarely the largest line in the project. The switch or kit, the inlet box, the cord, the electrician’s labor, the permit, and sometimes panel work stack up, and forum users consistently describe the total as several times what they expected the box alone to cost. Get a written quote for the complete job rather than comparing switch prices across listings.
Distance from the generator matters for planning. Most portable generators sit 20 to 40 feet from the house, and cord length is the practical limit. Kits that include a 10-foot cord may be fine for a generator on a patio and useless for one at the curb, which is why the 20-foot cable on the GenerLink unit is a real feature rather than a spec-sheet detail. Never use extension cords to extend a generator connection into the house.
Inlet box placement follows the switch location. If the switch is indoors, the inlet is still outside, which means the cord run between them has to be planned as part of the job. That run is one of the items most often missing from a kit, and it is where the cost surprises tend to appear.
For automatic and service-entrance rated units, expect a licensed electrician and possible utility coordination. Those devices become part of your home’s service equipment, and the project may need inspection before the utility will reconnect.
Plan the rest of the outage checklist too. Power is only half of it, and the cleanup gear you keep on hand matters once the storm has passed, which is why we keep coming back to solid pole saw picks for homeowners and a dependable ladder for roof and attic checks. We also flagged one recurring forum complaint that is worth planning for: the generator starts, the switch is thrown to generator, and the house stays dark. In most of those threads the cause is a neutral bonding issue or a cord plugged into the wrong inlet. Confirm the neutral configuration before install day and you avoid the single most common afternoon wasted on this project.
Troubleshooting: Why the House Gets No Power
Working through a dead-house scenario in a specific order saves a lot of confusion. Start at the generator and confirm it is running at proper output with the load turned down, then check the cord is fully seated in the inlet and that the inlet is the one your generator’s plug fits.
Next, confirm the switch position and the branch breakers inside the transfer switch. A common cause is simply that the branch breakers in the transfer switch are turned off, since the switch position alone does not energize those circuits.
If power reaches the switch but not the house, the likely culprits are a loose factory termination, a missed bonding jumper, or a breaker that has not been fully reset. Push-on fast-on terminations on some kits can loosen in transit, which is worth checking with a tug test before you close the cover.
Breaker compatibility is another frequent source of frustration. AFCI and GFCI breakers in a modern main panel sometimes trip when the load transfers, and some switches are not multi-listed for those breaker types. If a specific circuit refuses to hold, that is the first thing to investigate.
Finally, if your generator has a bonded neutral and the switch is a neutral-switching model, the result can be power present but no usable output. This is a compatibility mismatch, not a fault, and it needs a fix at the generator or the switch rather than at the panel.
Automatic units add their own diagnostic path. If a standby generator never receives a start signal, the issue is usually the control compatibility rather than the switch, which is the main reason manufacturer-specific controllers like the Evolution and Nexus systems exist.
Frequently Asked Questions
Which generator transfer switch is the best?
For most homeowners with a 5,000 to 7,500 watt portable generator, the Reliance Controls 31406CWK is the strongest all-round choice because it ships pre-wired with the switch, inlet box, cord, and connectors, and it includes twin watt meters for load monitoring. Buyers wanting more branch positions usually prefer the Connecticut Electric EmerGen 30 amp 10-circuit kit, and larger 240V loads call for a 50 amp model.
Can a homeowner install a generator transfer switch?
An experienced DIYer can install a manual transfer switch, but a permit and inspection are usually required, and service-entrance rated automatic switches must be installed by a licensed electrician. Unpermitted work can complicate an insurance claim, which is why most homeowners in forums hire an electrician and keep the permit paperwork.
What size transfer switch do I need for a 10,000 watt generator?
A 10,000 watt generator needs a 50 amp transfer switch, or a 40 amp automatic device designed for that class of portable output. The 30 amp kits in this roundup cap out at 7500 watts. Check your generator outlet as well, since a 50 amp switch needs an L14-50 connector and most 10,000 watt units provide one.
Is it illegal to run a generator without a transfer switch?
Running a generator through a dryer outlet or a male-to-male extension cord backfeeds power onto utility lines, which violates the National Electrical Code and can electrocute lineworkers. It also risks voiding your homeowners insurance. Running a few appliances on extension cords is a separate matter and remains a reasonable option.
Do I need a transfer switch or an interlock kit?
A transfer switch gives you a curated list of circuits on a dedicated subpanel with predictable load, while an interlock kit mounts on the main panel and transfers everything at once with no second enclosure. Interlocks are cheaper and simpler, but every use means a trip to the main panel. Both require professional installation and a permit.
The Best Generator Transfer Switch Kit for Most Homes in 2026
After working through all ten kits, the Reliance Controls 31406CWK is the generator transfer switch kit we would put in the most houses. It is complete in the box, compact enough for a garage wall, cULus listed, backed by a five-year warranty, and the twin watt meters give a first-time owner a real tool for avoiding generator overload. Its review volume is the highest in the group by a wide margin, which means the long-term field history is well documented.
If you need more branch circuits, the Connecticut Electric EmerGen 30 amp 10-circuit kit is the step up, and its NEMA 3R rating makes it the better choice for an outdoor switch location. If you need 240V loads, move to a 50-amp kit such as the Reliance A510C or the Nature’s Generator 12-circuit unit. If you want automatic panel-wide transfer from a portable generator, the GenerLink 40 amp switch is the device in this roundup built for that job.
Match the plug, count the circuits, confirm the listing, and get it permitted. Get those four things right and the best generator transfer switch kit for homeowners in 2026 takes about an hour of your attention in the middle of an outage instead of a visit from the fire department.
