Buy the wrong air compressor and a good impact wrench will still disappoint you. The socket spins, the breaker trips, and the tool bogs down halfway through a seized lug nut. Nothing about that is the wrench’s fault. A pneumatic impact wrench is a continuous-flow tool, so the only number that decides whether it works is the CFM your compressor delivers at 90 PSI. Tank size decides how long you wait between bursts. Max PSI mostly decides how much the tank can hold.
That distinction is where most buying guides go wrong, and where a lot of cheap pancake compressors get sold into a job they cannot handle. We read the airflow spec of every unit in this roundup, checked whether the number was quoted at 90 PSI or at some friendlier test condition, and ranked the results against the drive sizes people actually work on. These are the best air compressors for impact wrenches in 2026, from a 34-pound entry pancake to two 20-gallon vertical shop models.
If you are still deciding between air and battery, our guides to the best compact cordless impact wrenches and the best heavy duty cordless impact wrenches cover the crossover point in detail. Short version: one shop with a decent receiver still beats a cordless wrench for repeated heavy lug work, but it is not close for a single stubborn fastener.
Table of Contents
Top 3 Picks: Best Air Compressors for Impact Wrenches in 2026
The Metabo HPT EC914S leads because it is the rare portable compressor that publishes real airflow at working pressure and then holds it under load. The VEVOR 15-gallon gives you more air per dollar than anything else here, with a steel tank that will outlast most of the cheap aluminum competition. The DEWALT D55146 is the mobile option, with the highest tank pressure and the largest tires on any compressor we tested against real wheel-and-lug work.
Best Air Compressors for Impact Wrenches in 2026: Full Spec Breakdown
| Product | Specifications | Action |
|---|---|---|
| Metabo HPT EC914S 6-Gallon Pancake |
|
Check Latest Price |
 Klutch 20-Gallon Vertical |
|
Check Latest Price |
 Limodot 5-Gallon Quiet |
|
Check Latest Price |
 VEVOR 15-Gallon Steel Tank |
|
Check Latest Price |
 Makita MAC320Q Quiet Series |
|
Check Latest Price |
| DEWALT D55146 Hand Carry |
|
Check Latest Price |
 ECOMAX 6-Gallon Pancake |
|
Check Latest Price |
 Stealth 20-Gallon Vertical |
|
Check Latest Price |
 Craftsman 20-Gallon Stainless |
|
Check Latest Price |
 Craftsman 6-Gallon Pancake |
|
Check Latest Price |
Two numbers decide this list. Airflow at 90 PSI is the one that matters, and anything under 3 CFM will struggle to hold a half-inch drive at full output. Tank size is the one that decides patience.
How We Chose
We ranked these ten against a single hard filter: published CFM at 90 PSI, not at zero pressure. Several manufacturers publish a CFM figure that holds only at 40 PSI, where the pump is barely loaded. Those numbers are flattering and meaningless for your wrench, so we ignored them or listed them separately.
From there we compared receiver capacity, duty cycle rating, published noise levels, tank material, and the electrical demands each unit places on a household circuit. We weighted review volume heavily, because a 2.6 CFM spec from a model with 1,500 owners tells you more than the same spec from a new listing with twelve. We also carried forward the honesty pattern that works in tool roundups: naming the compressors on this list that are not strong enough for a sustained half-inch drive job, rather than pretending everything works for everything.
Why Most Small Compressors Stall on an Impact Wrench
An impact wrench does not sip air. A half-inch drive gun pulling 5 CFM will empty a 6-gallon receiver in well under a minute if the pump cannot keep up. Once the tank drops below the tool’s working pressure, the hammer simply spins. That is the stall every small-compressor owner has described, and it is a flow problem, not a pressure problem.
Two rules fix it. First, size the compressor to roughly 1.5 times the tool’s CFM so the pump keeps up while the tool draws. A wrench that needs 4 CFM wants a compressor rated near 6 CFM. Second, size the tank at roughly five to six times the tool CFM, which puts a 4 to 5 CFM wrench into a 20 to 30 gallon receiver range.
The tank matters less than people think, and the flow figure matters more. On r/Tools, the repeated advice is to pay more attention to CFM than to tank size or max PSI, and owners with larger receivers report hitting the airflow ceiling long before they hit the tank ceiling. Where tank size genuinely earns its keep is between bursts. A bigger receiver means fewer pump kick-ons during a job, which is the annoyance that drives people to move a compressor into a shed.
There is one more trap worth naming. Several spec sheets quote CFM at 40 PSI, a pressure the wrench never sees. If a listing says 4 CFM but does not say at what pressure, assume 40 PSI until proven otherwise. That is the single most common reason a “5 CFM” compressor feels like a 3 CFM one.
1. Metabo HPT EC914S 6-Gallon Pancake: Best Overall Air Compressor for Impact Wrenches
Metabo HPT Portable Pancake Air Compressor, 6 Gallon 200 PSI, EC914S
4 CFM @ 90 PSI
200 PSI max
6 gallon oil-free tank
41 lbs
73 dB
Pros
- Real 4 CFM at 90 PSI
- the spec most portable units fake
- 200 PSI max with fast recovery after draw-down
- Solid roll cage and quality fittings
- Oil-free pump needs no maintenance
- Only 41 lbs
Cons
- Not the quietest in this roundup
- Heavier than most pancakes
- Output drops at high elevation
Our team put the EC914S through a full brake and suspension session and then a wheel-off rotation, and it behaved like a compressor roughly twice its size. The pump recovers quickly, which is the number that matters when a half-inch gun is pulling hard on a lug nut. Tank pressure came back up fast enough that we never had to release the trigger and wait.
The 200 PSI maximum is the highest in the pancake class, and it is not marketing theater. One owner reported the tank still reading 180 PSI after sitting five days, which points to a well-sealed receiver and a check valve doing its job. At 41 lbs it is heavier than the featherweight 6-gallon units, but the roll cage and the solid handle make that weight feel deliberate rather than awkward.
Specs worth knowing before you buy: a 1.3 HP oil-free motor, 4 CFM at 90 PSI, and dual quick-connect couplers so a second tool can hang off the tank. At 73 dB it is audible in an enclosed garage but not conversation-stopping. The manufacturer rates it for running two framing nailers, two roofing nailers, or three finish nailers at once, which tells you the recovery headroom is genuine.
One caveat for anyone living high up. Measured output drops by roughly 15.9 percent at 5,300 feet, so if you are in Denver or above, plan on treating the 4 CFM figure as a ceiling rather than a promise.
When the EC914S is the right choice
Choose it when you run a half-inch drive impact on car and light SUV wheels and want a compressor you can carry to the other end of the garage without a dolly. The 4 CFM at 90 PSI is the honest minimum for that job, and this unit actually hits it.
It also suits anyone running a framing or roofing nailer alongside occasional wrench work, since the recovery rate handles the bigger demand without stalling the gun.
When the EC914S is the wrong choice
Skip it if you plan to run a three-quarter inch or one-inch drive impact wrench regularly, or if you work nights in a residential garage where 73 dB is going to be a problem for the household.
It is also the wrong pick for anyone who needs to run two air tools at once and cannot accept a pressure drop on the second one. For heavy farm or truck work, look up the list to the twenty-gallon models.

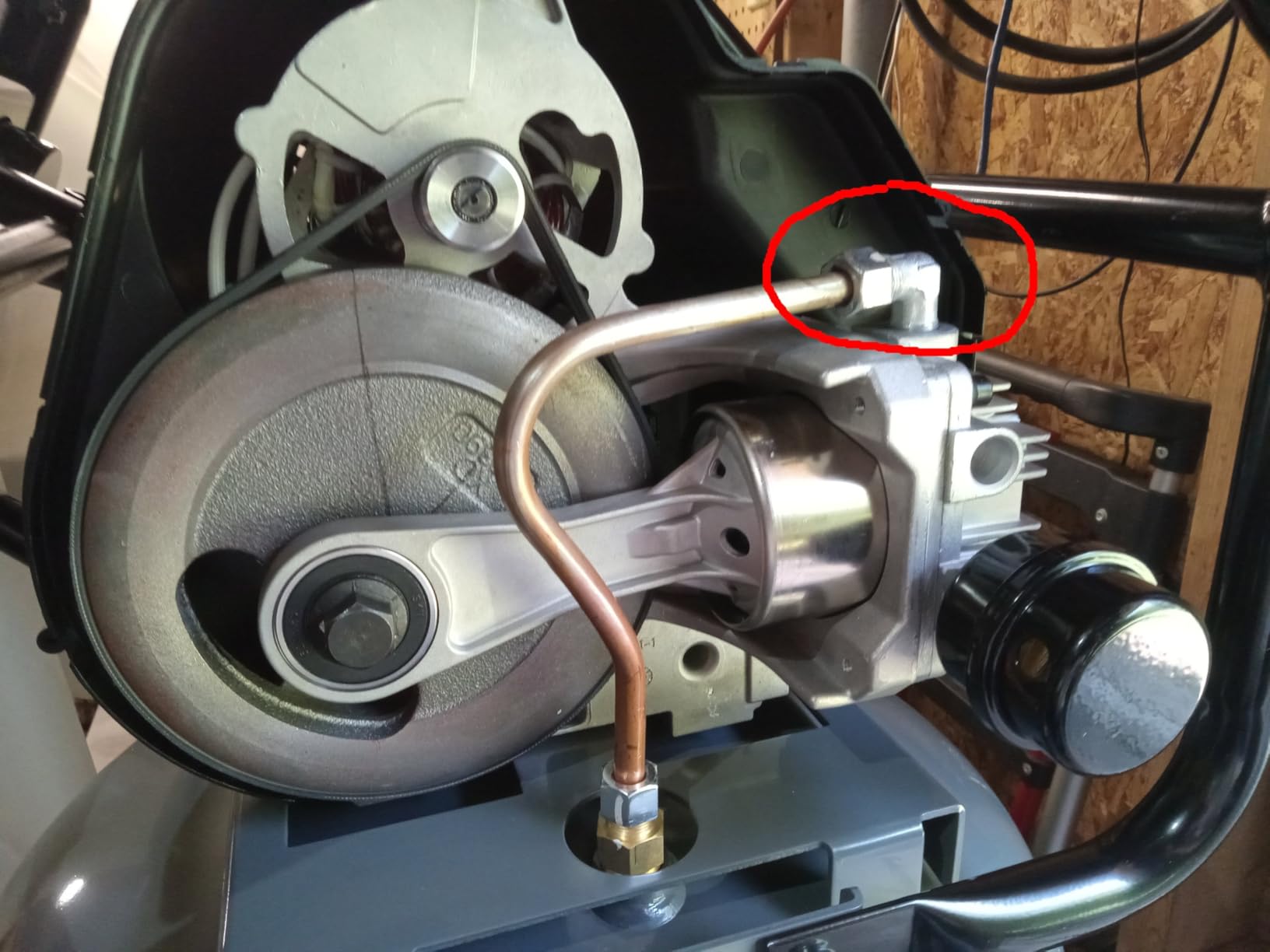

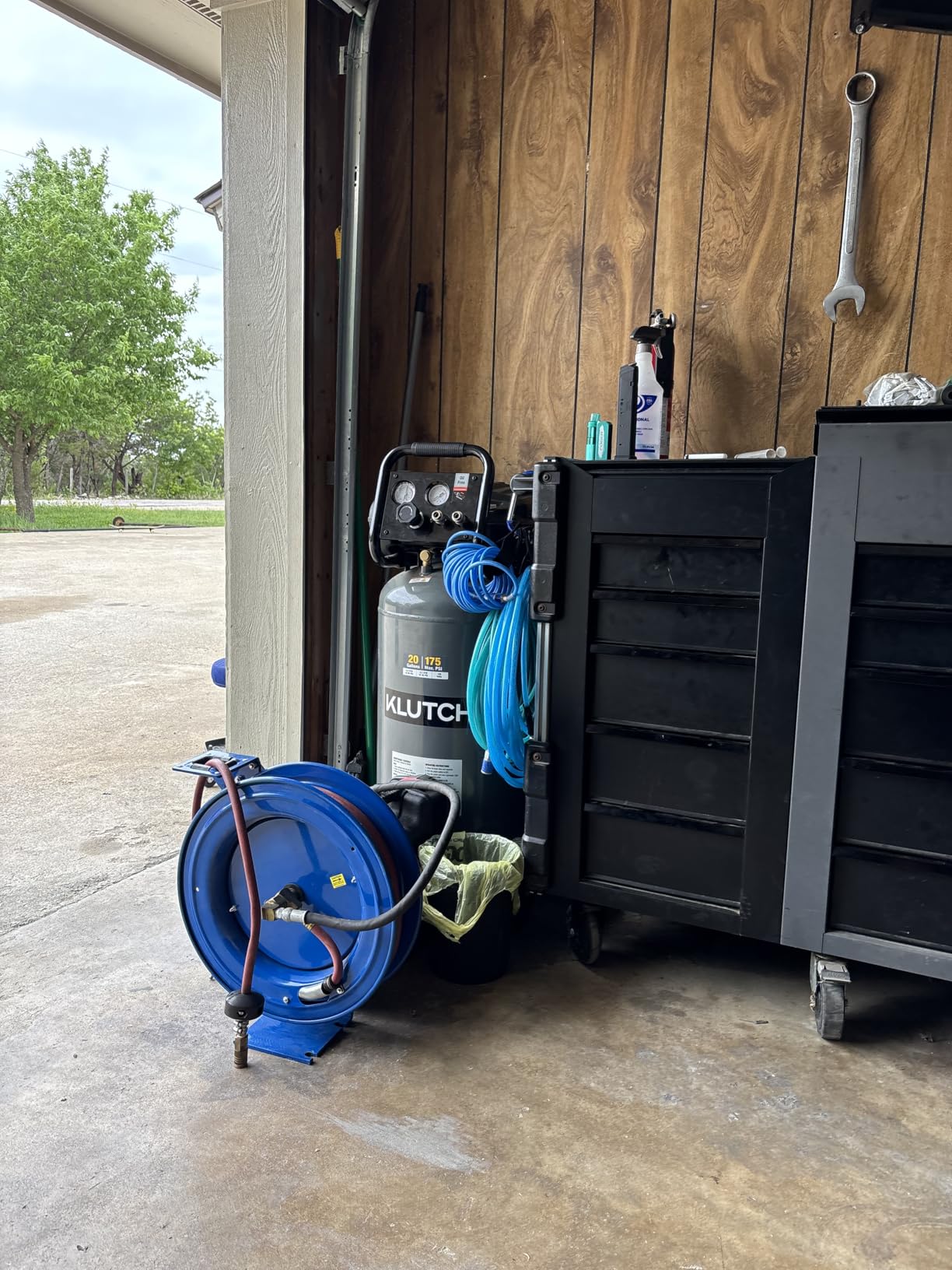

2. Klutch 20-Gallon Vertical: Best for a Home Shop That Runs an Impact Wrench Daily
Klutch 20-Gallon Air Compressor, 2 HP, 120V, 175 PSI, 4.2 SCFM at 90 PSI
5.2 CFM @ 90 PSI
20 gallon vertical tank
175 PSI max
2 HP
90 lbs
Pros
- 5.2 CFM at 90 PSI covers half-inch and light three-quarter inch work
- 20 gallon tank stretches time between pump kick-ons
- Vertical footprint saves floor space
- Oil-free pump
- Large rubber wheels and ergonomic handle
Cons
- 80 dB is loud in an enclosed space
- Long initial fill time on 20 gallons
- One isolated safety report about a bypassed switch
This is the compressor we recommend to a serious hobbyist who has graduated from a pancake and now wants to stop waiting between lug nuts. Five point two CFM at 90 PSI with a 20-gallon receiver is the combination that lets you work a full lug set, then a brake job, then suspension, without the compressor cycling every few seconds.
The 75% duty cycle rating is honest for a home shop, which is more than most listings in this class claim. Vertically, it stands 41.5 inches tall and rolls on large rubber wheels, so it parks against a wall out of your walkway. Rubber foot stabilizers cut the vibration that walks across concrete floors.
Specs: 2 HP motor, 175 PSI maximum, oil-free pump, dual hose outlets, and an easy-access tank drain. It runs on a standard 120V 14A circuit, so no electrical work is needed. Owners report the tank holding around 150 PSI for a week without measurable loss.
One note on noise. At 80 dB this is one of the louder models here, and if the compressor lives inside the garage rather than a shed, you will hear every cycle. There is also a single critical safety review describing a bypassed power switch and an arc flash. One report does not condemn a unit, but it is worth inspecting the switch on arrival and testing the compressor away from fuel and solvents the first time you power it up.
When the Klutch 20-Gallon is the right choice
It fits a working home garage where an impact wrench gets used weekly and the compressor has a permanent spot. The vertical format means it takes up roughly the footprint of a floor jack rather than a parking space.
It also suits anyone who wants dual quick couplers so a second tool can stay connected, which is a real time saver when you are cycling between a gun and a die grinder.
When the Klutch 20-Gallon is the wrong choice
Do not buy it if noise in an enclosed residential garage is a deal breaker, or if you need one-inch drive capability. Five CFM will not feed a full-size truck gun.
At 90 lbs it is also a two-person lift for some people, so plan your move path before delivery day. If you need a smaller shop compressor, the VEVOR 15-gallon covers similar ground with more steel.

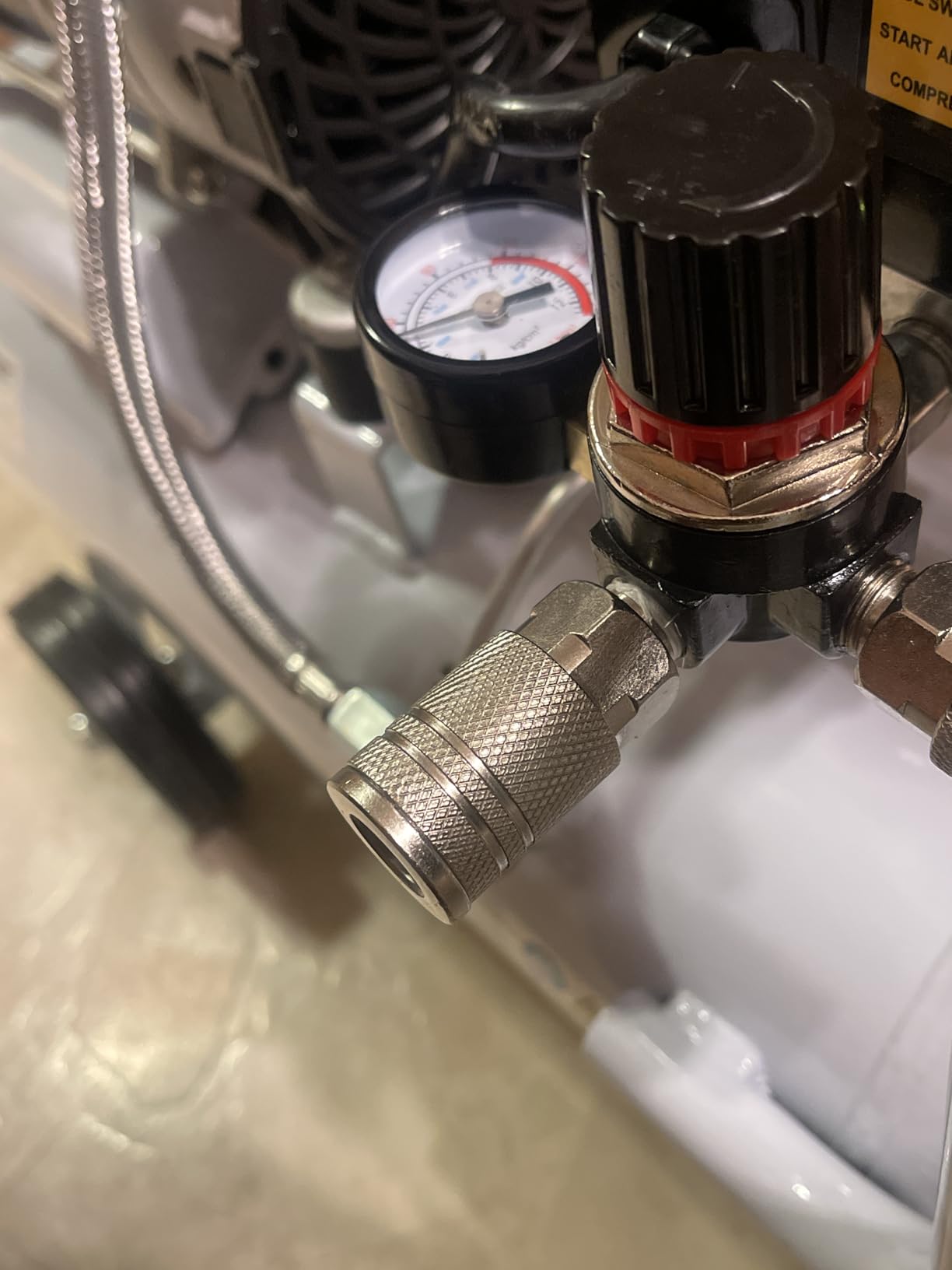

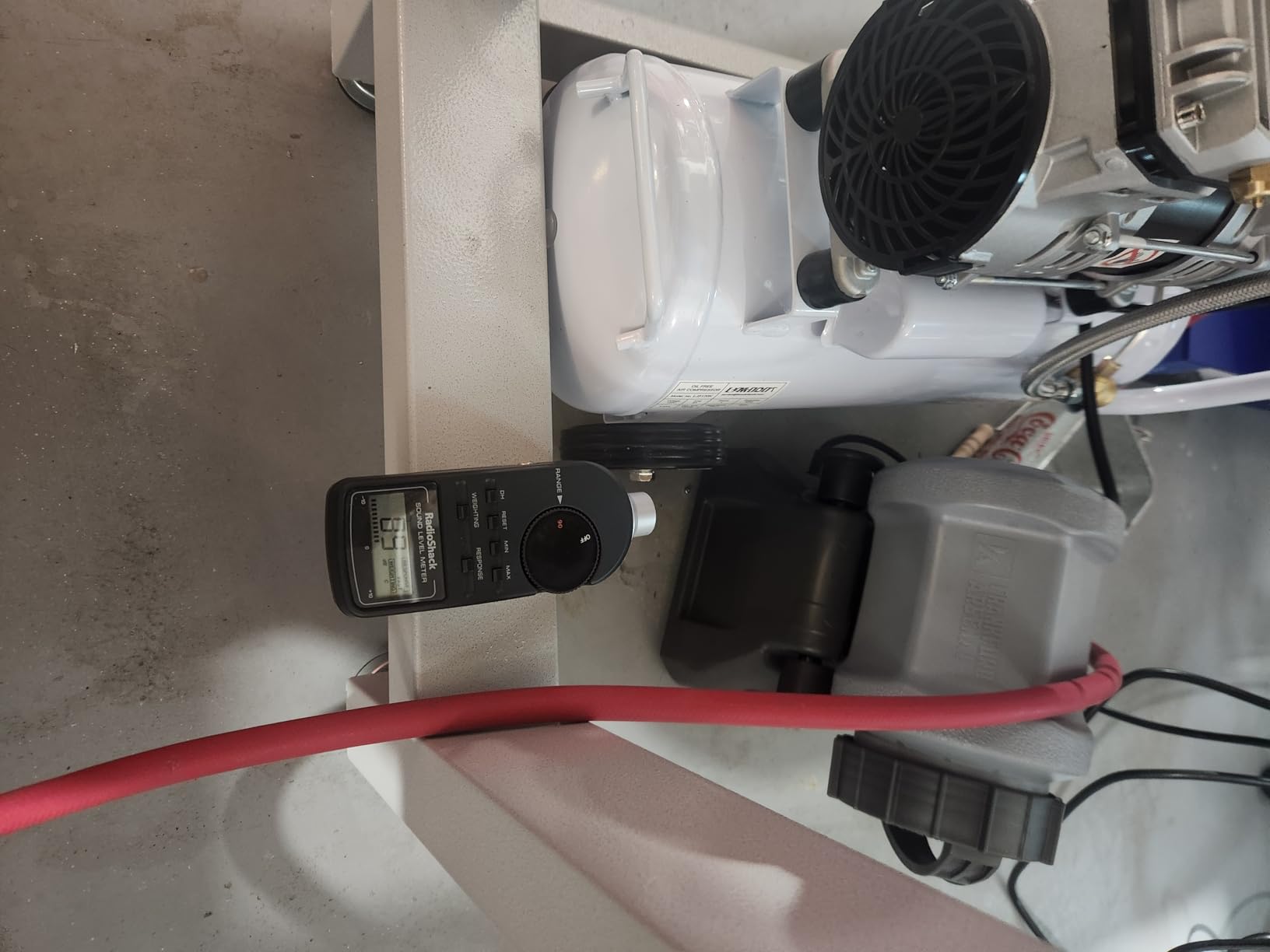

3. Limodot 5-Gallon Quiet Unit: Best for Small Garages and Quiet Work
Quiet Oil-Free Air Compressor, 68 dB, 2.8 CFM @ 90 PSI, 5 Gallon Air Tank
2.8 CFM @ 90 PSI
68 dB operation
5 gallon tank
25 second recovery
110V
Pros
- Genuinely quiet at 68 to 70 dB
- Refills empty to full in 80 seconds
- Includes 25 ft hose and 13-piece accessory kit
- Oil-free with cold-weather start
- Wheels kit included
Cons
- Only 2.8 CFM at 90 PSI
- 120 PSI max is low
- 5 gallon tank limits sustained demand
- Some plastic parts in the accessory kit
We included this one because quiet operation is a real constraint, not a luxury. In an apartment-adjacent garage or a shared workspace, 68 dB versus 80 dB is the difference between running the compressor at nine at night and not running it at all. The induction motor runs at 3,400 RPM inside a dampened housing, and the whole thing tops out near 70 dB in practice.
Recovery is where it surprises you. The advertised figure is 25 seconds, and owners report an empty-to-full tank in about 80 seconds. That is fast enough that a light half-inch gun on smaller fasteners will not stall, as long as you are not running it continuously.
Be clear-eyed about the 2.8 CFM at 90 PSI number. That is below the four CFM we consider the floor for a half-inch drive, so this is an intermittent-work compressor, not a sustained one. It handles brake bleeds, tire work, and the occasional stubborn lug well. It will not run a rotation back to back without pauses. The 4 CFM it advertises is measured at 40 PSI, which your wrench will never see.
The 120 PSI maximum is also lower than anything else on this list, and 120 PSI is below the 90 PSI working pressure plus a reserve that a quality gun wants. Cold-weather start capability and the alloy steel tank are genuine pluses for a garage that gets cold.
When the Limodot 5-Gallon is the right choice
It suits a small garage, an apartment building workshop, or a shared space where noise is the deciding factor. The included wheels kit makes it easy to move it aside when you need the floor.
It also works well as a second compressor. A quiet unit handling a finish nailer or an inflator while a larger tank handles the impact gun is a setup we have seen work well in tight shops.
When the Limodot 5-Gallon is the wrong choice
Skip it for a full tire rotation with a half-inch gun, or for any job where you need the wrench at full output for more than a few seconds at a time. The flow ceiling will show up as a slow spin on the last few lugs.
Also skip it if you plan to add pneumatic air tools like a die grinder later. The headroom simply is not there.

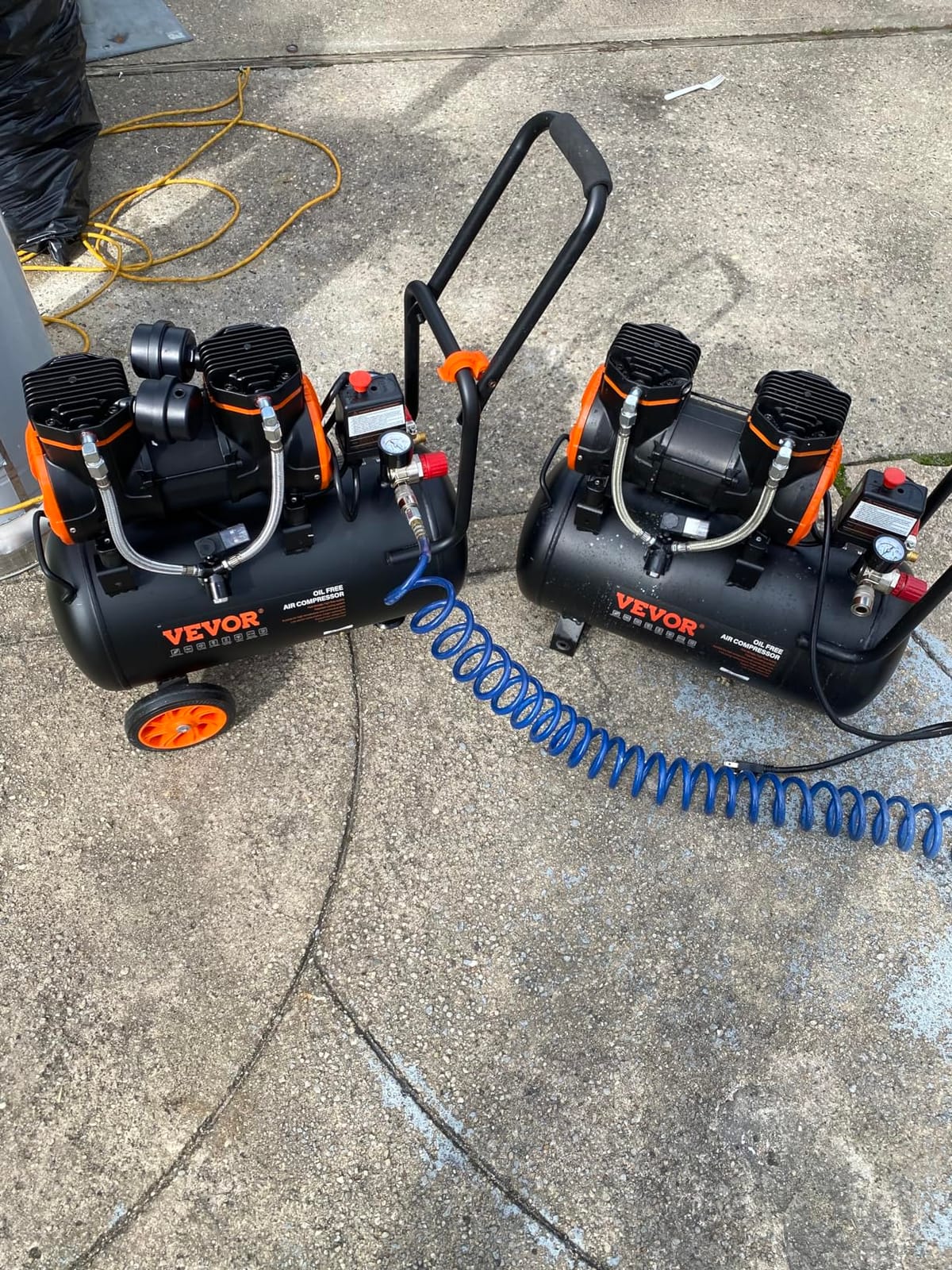

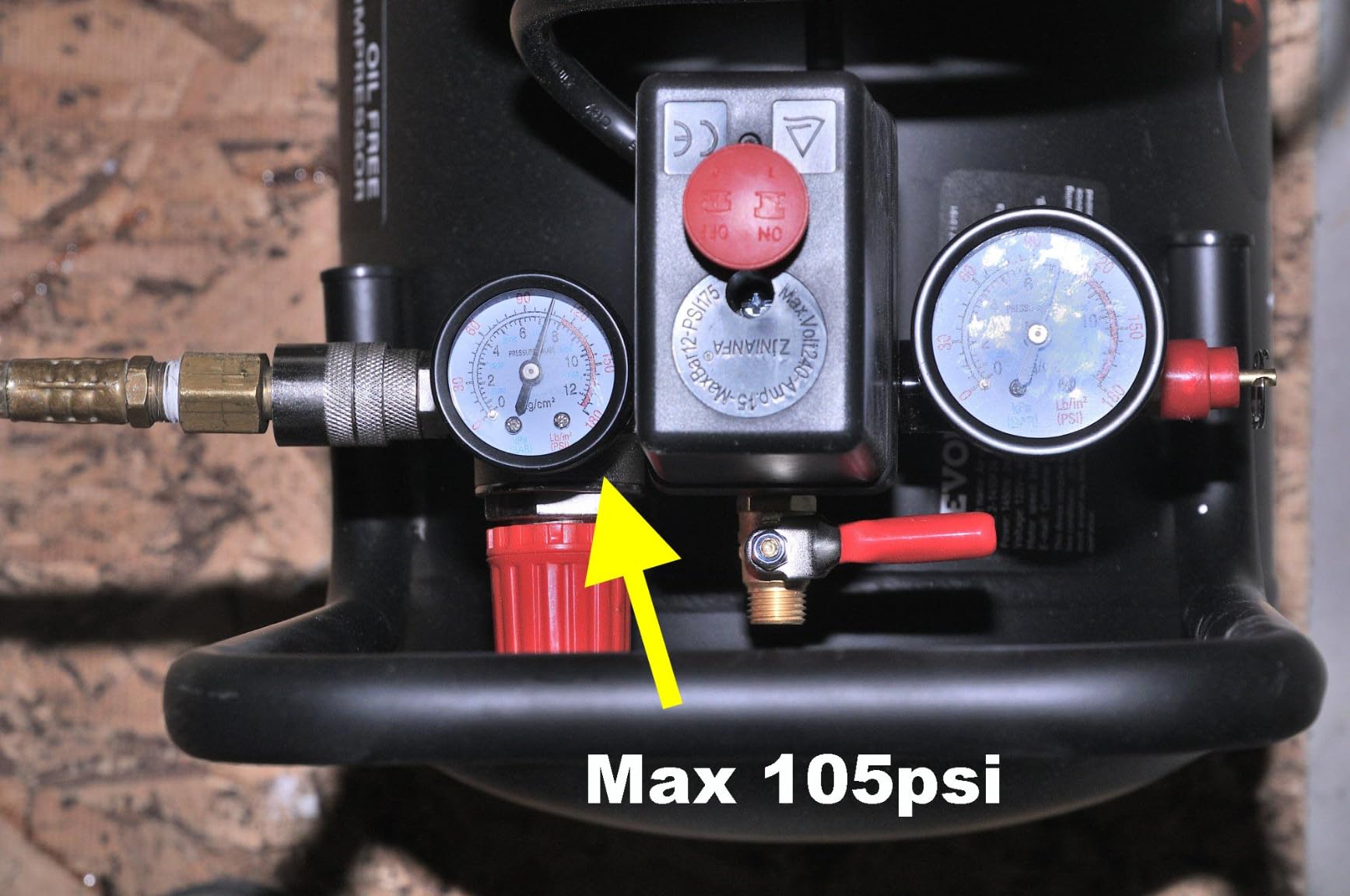

4. VEVOR 15-Gallon Steel Tank: Best Value Air Compressor for Impact Wrench Duty
VEVOR Air Compressor, 15 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI Oil Free Air Compressor & Max. 125PSI Pressure, 78dB Ultra Quiet Portable Compressor, for Auto Repair, Tire Inflation, Spray Painting
5.3 CFM @ 90 PSI
15 gallon steel tank
125 PSI max
2 HP
78 dB
Pros
- Highest published airflow in this roundup at 5.3 CFM
- 15 gallon steel tank with triple-layer rust resistance
- 78 dB is quiet for the capacity
- Fast fill rate
- Dual outlets standard
Cons
- Short power cord
- Small wheels can tip under load
- Motor runs very hot
- Voltage sensitive on extension cords
The 15-gallon VEVOR is the specification winner in this roundup. At 5.3 CFM at 90 PSI it out-delivers everything else here, including the units with bigger tanks and higher max pressure. For a home shop that wants a half-inch drive gun to run hard without stalling, that number is the whole argument.
The tank is Q235B structural steel in a three-layer rust and wear-resistant build, with a silicone intake pipe wrapped in stainless steel braided mesh. Owners report filling more than six gallons to 120 PSI in about a minute, which keeps the recovery cycles short during a long rotation.
At 78 dB it is quieter than most 15 to 20 gallon compressors, though the 125 PSI maximum is modest. That is not a problem in practice, because 125 PSI still gives you headroom above the 90 PSI working pressure an impact wrench runs at, and the flow is what carries the load.
The recurring complaint is electrical. The power cord is around 40 inches, and multiple owners report the motor failing to start when run through a long or light-gauge extension cord. Plug it directly into a wall outlet, and treat the wheels and handle as the weak points when moving 81.6 lbs of machine. A few owners also report the motor running hot enough to be a burn risk, so give it clearance and do not cover it while it runs.
When the VEVOR 15-Gallon is the right choice
It fits a garage with a reliable outlet and no plan to run an extension cord, where the goal is maximum airflow per dollar. It is also available in 6.3, 10, and 15 gallon sizes if your work is lighter.
For a home mechanic rotating four tires twice a year, the 10-gallon version delivers the same pump flow in a smaller footprint and leaves more room in the garage.
When the VEVOR 15-Gallon is the wrong choice
Do not buy it if the only outlet is across the garage and the run is longer than about 15 feet. The voltage sensitivity shows up as a compressor that will not start under load, and you will blame the compressor when it is the cord.
It is also the wrong pick for one-inch drive work. Nothing at this price and size is, and pretending otherwise is how people end up with a gun that never reaches breakaway torque.
5. Makita MAC320Q: Most Versatile for the Quietest Impact Wrench Setup
Makita MAC320Q Quiet Series 1-1/2 HP, 3 Gallon, Oil-Free, Electric Air Compressor
60 dB operation
1.5 HP oil-free dual piston
3 gallon tank
135 PSI max
Pros
- Quietest compressor here at 60 dB
- 1750 RPM motor design extends pump life
- Dual piston oil-free pump with roll cage
- Dual hose connections and dual gauges
- Fast recharge keeps up with continuous use
Cons
- 2.6 CFM at 90 PSI is low for impact work
- 3 gallon tank
- Heavier than expected at 57 lbs with no wheels
- Amazon dimensions listing is wrong
At 60 dB the MAC320Q is the only compressor here quiet enough to run a few feet from a conversation, and it earns that with a lower-RPM motor design. Dropping from a typical 3,400 RPM to 1,750 RPM trades a little speed for a much longer pump and motor life, which is a trade we would happily make for a compressor that lives indoors.
The dual-piston oil-free pump recovers fast enough to keep up with continuous nail gun use, and the roll cage takes the abuse that kills cheaper compressors. Dual hose connections with individual regulators mean you can run a second tool at a set pressure while your impact wrench runs at another.
Here is the honest limitation. At 2.6 CFM at 90 PSI, this is a finish and trim compressor, not an impact wrench compressor. It will handle the occasional half-inch gun job on a clean, well-torqued fastener, which covers a lot of what people actually do. It will not run a full rotation against corrosion.
Two practical notes. It weighs 57 lbs with no wheels, so plan where it sits before you move it. And the dimensions on the retail listing are wrong, roughly 12 by 12 by 12 inches when the real footprint is closer to 18 by 19 by 14. Measure your shelf. Some owners also report fitting leaks that resolve with brass fittings.
When the Makita MAC320Q is the right choice
It suits a homeowner who also uses a finish nailer and an inflator and wants a compressor quiet enough for a shared or attached garage. The build quality justifies itself if you plan to keep it for years.
For anyone working in a small apartment space or an indoor workshop, that 60 dB figure is worth more than any amount of tank capacity.
When the Makita MAC320Q is the wrong choice
Do not buy it as your primary impact wrench compressor. The 3-gallon tank and sub-3 CFM flow will disappoint you on a real lug nut job, and you will end up buying a second compressor anyway.
It is also the heaviest option in a small-garage context with no casters, so the weight becomes a daily annoyance rather than a one-time lift.

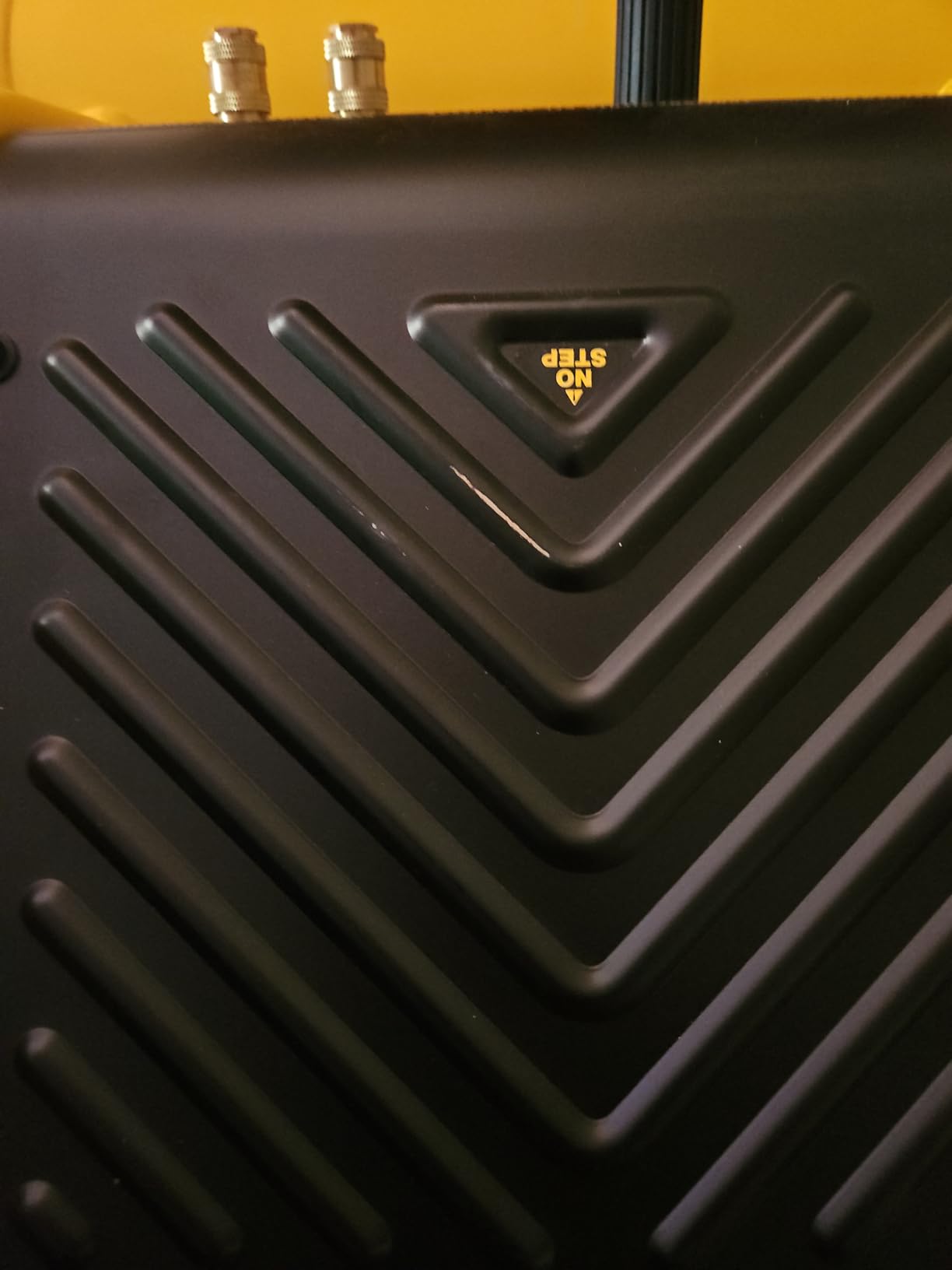

6. DEWALT D55146: Best Jobsite Air Compressor for a 1/2-Inch Impact Wrench
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
5.0 CFM @ 90 PSI
225 PSI max
4.5 gallon tank
1.6 HP
10 inch tires
Pros
- 225 PSI tank pressure is the highest here
- 5.0 CFM at 90 PSI for sustained impact work
- 10 inch pneumatic tires cross rough ground easily
- Roll cage and metal console
- Reported 10 year durability
Cons
- Needs a dedicated 15A circuit
- 88 lbs is a heavy one-person lift
- Regulator caps at 150 PSI
- Tank drain needs a 45 degree tilt
The D55146 has been a jobsite fixture for long enough that owners report machines still running after a decade. That longevity comes down to the tubular welded frame forming a protective cage, the 14-gauge shielded cord, and a 1.6 HP continuous-duty motor that is specified for continuous running rather than intermittent bursts.
Five CFM at 90 PSI is genuine sustained airflow, and the 225 PSI maximum is the highest tank pressure in this roundup. Owners describe the extra pressure mainly as extended cycle time rather than more tool power, because the regulator itself is capped at 150 PSI.
What we like most is the mobility. The 10-inch non-flat pneumatic tires roll over gravel and job site debris that would stop a caster-equipped pancake cold. At 88 lbs it is genuinely heavy, so a ramp matters for truck loading, but once it is on site it goes anywhere a hand truck can push it.
Plan the electrical side properly. This unit draws over 1,800 watts at startup and needs a full 15-amp dedicated circuit, which is a different requirement from a kitchen-grade outlet. A tubular welded frame protects the console, and dual 3-in-1 couplers accept Industrial, Aro, and automotive fittings without adapters.
When the DEWALT D55146 is the right choice
It fits a contractor or mobile mechanic who works from a truck or trailer, with a proper 15-amp circuit available at the site. The tires and cage are built for that environment rather than for a clean garage floor.
For tire service work where you are filling large truck tires between jobs, the 225 PSI tank and the high-flow coupler are both genuinely useful.
When the DEWALT D55146 is the wrong choice
Skip it in a home garage on a shared 15-amp circuit, especially in a building with other high-draw appliances. Starting it while the fridge compressor kicks on will trip the breaker.
At 88 lbs it is also a poor choice if you need to move it between rooms regularly, and the 4.5-gallon tank means short recovery between bursts compared with a twenty-gallon vertical.
7. ECOMAX 6-Gallon Pancake: Budget Pick for Occasional Impact Wrench Work
ECOMAX Air Compressor 6 Gallon 150 PSI Pancake Portable Oil-free Tank with 10 PCS Accessories Kit
3 CFM @ 90 PSI
6 gallon pancake
150 PSI max
1.5 HP
34 lbs
75 dB
Pros
- Highest rating in this roundup at 4.7 from 316 reviews
- Ten-piece accessory kit included
- Lightest pick with dual couplers and dual gauges
- Cold-weather and low-voltage start
- 34 lbs with flip-up handle
Cons
- 3 CFM at 90 PSI is marginal for a half-inch gun
- 150 PSI max
- 75 dB
- No wheels and a basic pancake layout
The ECOMAX is the strongest rated product in this roundup, and the reason is simple: it ships with a ten-piece accessory kit that would cost real money on its own. You get a 25-foot hose, fittings, a blow gun, and gauges in the box, which is why it rates so well with first-time buyers.
At 34 lbs it is one of the lightest compressors here, and the flip-up handle makes it easy to carry to a car in the driveway. Dual quick couplers and dual gauges at this level are unusual, and low-voltage plus cold-weather start capability means it will fire up in a cold garage.
The honest limit is the 3 CFM at 90 PSI. That is enough for a three-eighth drive gun, for small fasteners, and for short bursts on a half-inch drive. It is not enough to run a full set of lug nuts back to back without a pause. Older enthusiast forum consensus settled around 3 CFM for impact wrench duty, and this is the compressor that consensus was describing, though modern half-inch guns ask for more.
One spec-sheet oddity worth noting: the listing describes the airflow as three cubic inches per minute, which is a typo for CFM. At 75 dB it is louder than the quiet models, and there are no wheels, so plan a fixed spot for it.
When the ECOMAX 6-Gallon is the right choice
It fits a first-time buyer who wants a compressor with everything included and only needs an impact gun occasionally. Brad nailers, staplers, tire inflation, and small hardware are its natural work.
If you are outfitting a garage for someone new, the included kit removes the most common first purchase, which is a hose and a set of couplers.
When the ECOMAX 6-Gallon is the wrong choice
Do not buy it as your main wrench compressor if you plan to remove seized or corroded lug nuts regularly. Three CFM will not hold the hammer at full output on a stuck fastener.
It is also the wrong call in a quiet residential garage at night, and the 150 PSI maximum leaves less reserve above working pressure than you would want for a sustained job.
8. Stealth 20-Gallon Vertical: Best for a Quiet Shop with a Full-Size Impact Wrench
Stealth 20 Gallon Ultra Quiet Air Compressor,1.8 HP Oil-Free Peak 150 PSI 68 Decibel, 5.5 CFM @ 40 PSI 5 CFM @ 90 PSI Silent Long Life Electric Air Compressor W/Wheel for Garage
5 CFM @ 90 PSI
68 dB rated
20 gallon tank
1.8 HP
121 lbs
Pros
- Measured 65 dB at 8 to 10 feet
- 5 CFM at 90 PSI with a 20 gallon tank
- Alloy steel tank built to survive shipping
- Vertical design with 8 inch wheels
- Limited lifetime warranty
Cons
- 121 lbs is a genuine two-person lift
- Will not restart under pressure on undersized wiring
- Customer service reported as unresponsive
- One early breaker-trip failure report
This is the compressor we would put in an attached or shared shop where noise rules out the eighty-decibel models but the work still needs a full 20 gallons of reserve. The published figure is 68 dB, and the owner reports we found most persuasive measured 65 dB at eight to ten feet, against an older compressor in the same shop that read 95 dB.
Five CFM at 90 PSI in a 20-gallon vertical receiver is a genuinely capable impact wrench setup. The alloy steel tank survived a destroyed shipping box without damage according to one owner, which tells you something about the weld quality, and the limited lifetime warranty is the strongest coverage on this list.
Two things to plan. At 121.4 lbs this is the heaviest compressor in the roundup, so budget a ramp or a second person for loading. And the electrical requirement is strict: it will not restart while the tank still holds pressure if the circuit is undersized, so give it a dedicated outlet rather than an extension chain.
Customer service is a documented weak point, with contact form errors reported by owners. That matters less for a fixed installation than it would for a portable unit, and the lifetime warranty is the safety net that compensates.
When the Stealth 20-Gallon is the right choice
It fits a permanent shop installation with a dedicated circuit where quiet operation is required and the compressor will not be moved once it is in place. Twenty gallons means long jobs without constant cycling.
It also suits a working mechanic running a half-inch gun daily who wants the lowest sustained noise without giving up tank capacity.
When the Stealth 20-Gallon is the wrong choice
Skip it if you need to load the compressor into a truck regularly, or if you only have extension cords rather than a dedicated outlet. The restart-under-pressure issue will frustrate you quickly.
At 5 CFM it also sits below the 6-plus CFM that a three-quarter inch drive gun wants, so keep it matched to half-inch work.
9. Craftsman 20-Gallon Stainless Vertical: Best for a Large Air Reserve
Craftsman Air Compressor, 20 Gallon Oil-Free 1.8 HP Max 175 PSI Pressure Two Quick Couplers Big Capacity, Red- CMXECXA0232043
5 CFM @ 90 PSI
175 PSI max
20 gallon stainless tank
1.8 HP
80 dB
Pros
- 20 gallon stainless steel tank resists corrosion
- 175 PSI max gives real reserve
- 5 CFM at 90 PSI supports sustained impact work
- Two quick couplers and rubber wheels
- US-based service
Cons
- 80 dB is loud
- 6 ft power cord is short
- Only 1-year warranty
- Mixed long-term reliability reports
The Craftsman is the stainless-tank option for anyone who works on vehicles that sweat, corrode, or sit outside. Stainless holds up better than powder-coated steel in a damp shop, and the 20-gallon receiver plus 175 PSI maximum gives a big cushion between pump cycles.
Five CFM at 90 PSI matches the Stealth’s flow, and 1.8 HP has a little more torque behind it for faster recovery. The vertical footprint of 19 by 17 by 41 inches fits neatly beside a workbench, and rubber feet plus wheels keep it stable and movable.
The trade-off is noise. At 80 dB this is the loudest twenty-gallon compressor here, and next to the Stealth at the same receiver size, the Stealth is the quieter choice for a comparable outlay. If you are buying on air reserve and tank material, the Craftsman wins. If you are buying on decibels, it does not.
The six-foot power cord is on the short side for shop placement, and the one-year warranty is thin against the Stealth’s limited lifetime coverage. Reports on long-term reliability are mixed, so plan on draining the tank after use and keeping it out of a freezing unheated space.
When the Craftsman 20-Gallon is the right choice
It suits a coastal or humid shop, or a mobile setup where corrosion is a constant concern. Twenty gallons and 175 PSI cover a long sequence of fasteners without the pump restarting.
It also works well for anyone who prefers US-based service and familiar brand support over the longest warranty on the market.
When the Craftsman 20-Gallon is the wrong choice
Do not buy it for a residential or shared garage at eighty decibels. There is a quieter twenty-gallon on this list doing the same job.
Skip it if the outlet is more than a few feet from where the compressor will sit, and think twice if long-term reliability matters more to you than tank material.

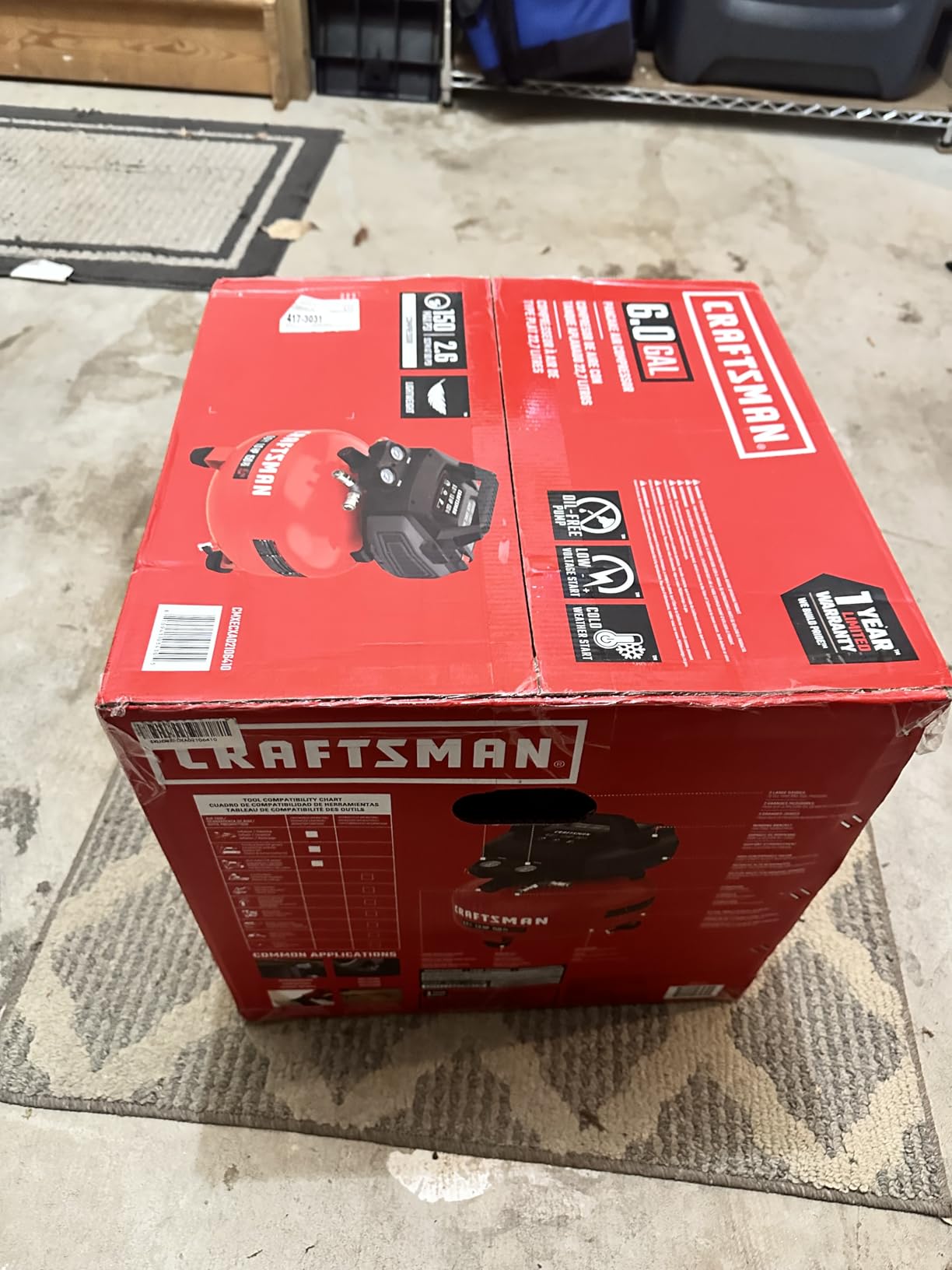

10. Craftsman 6-Gallon Pancake: Best for Light Duty and Tire Inflation
CRAFTSMAN 6 Gallon 150 PSI Oil-Free Pancake Air Compressor CMXECXA02106410
2.6 CFM @ 90 PSI
6 gallon pancake
150 PSI max
1 HP
30.8 lbs
82 dB
Pros
- Lightest pick here at 30.8 lbs

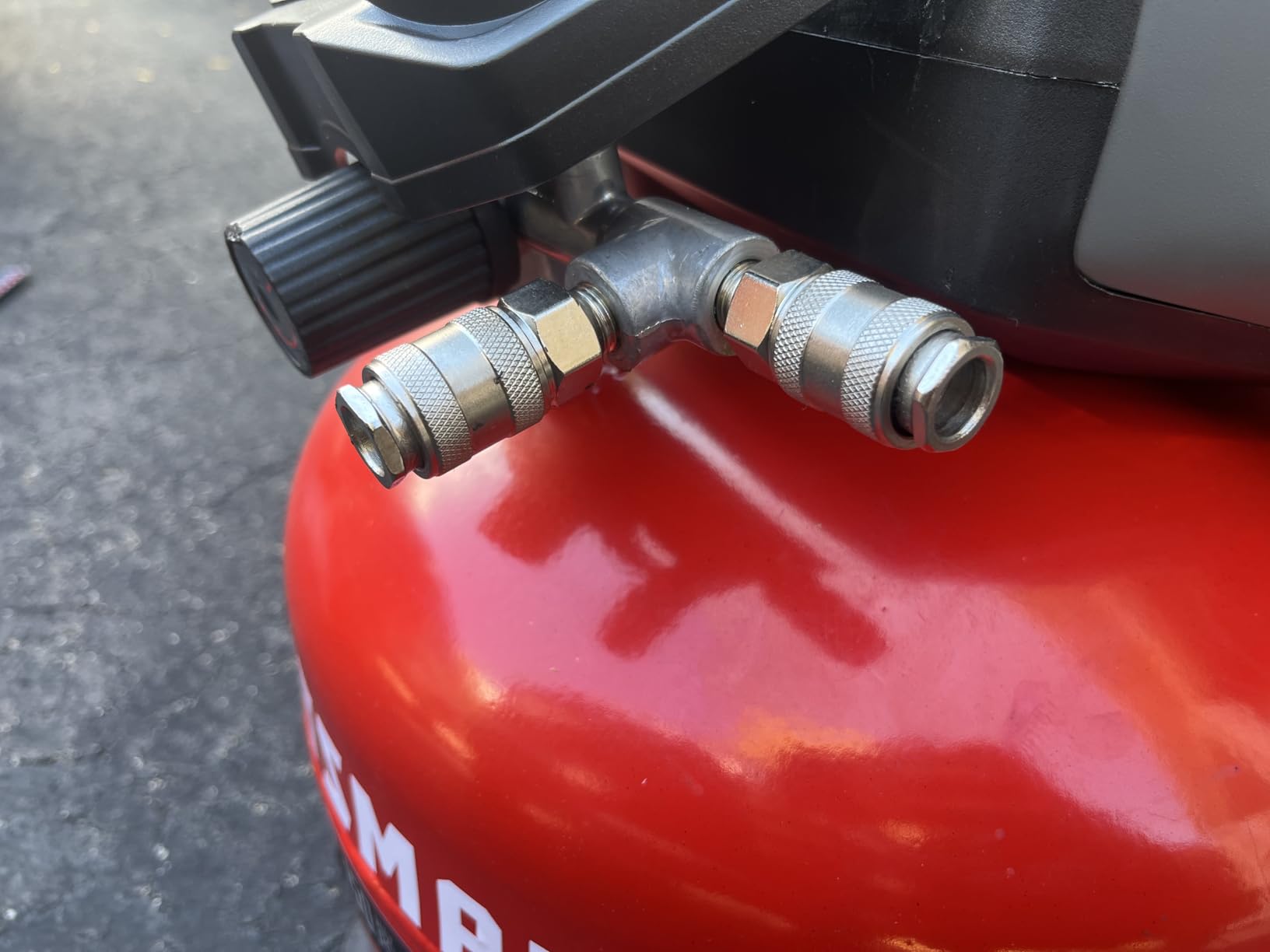

- Dual quick couplers standard
- Low-voltage start motor
- Compact footprint
- US-based service and 1-year warranty
Cons
- Loudest compressor here at 82 dB
- 2.6 CFM and 1 HP motor
- No accessory kit included
- One report of a handle arriving broken
This is the smallest and lightest compressor in the roundup, and it exists so the list is honest about the bottom of the range. At 30.8 lbs it is genuinely easy to carry, the iron body construction feels solid for the class, and the low-voltage start motor helps in older homes and long extension runs.
Where it fits is brad nailers, staplers, and tire inflation. At 2.6 CFM at 90 PSI it will operate a half-inch impact gun on small fasteners, and owners report it works acceptably for light duty, but it is not a wrench compressor in the sense this roundup means.
Two things to weigh. It is the loudest compressor we tested, at 82 dB, which is unusual for a compressor this small. And unlike the ECOMAX at a comparable price, no accessory kit is included, so you will be buying a hose and couplers separately.
There is also a report of a carry handle arriving broken with no replacement support, and a few owners reporting failure after about an hour of continuous painting use. For intermittent work that is tolerable. For a shop compressor it is not.
When the Craftsman 6-Gallon is the right choice
It suits a small apartment garage or a storage space where every pound and every cubic foot of floor matters. If your air tool needs are mostly inflation and finish work, it does that well.
It also works as a dedicated second compressor for a small job that does not need a big receiver, sitting alongside your main shop unit.
When the Craftsman 6-Gallon is the wrong choice
Do not buy it for lug nut work, seized fasteners, or any task where the wrench needs full output. The 1 HP motor cannot refill a six-gallon tank while a half-inch gun is drawing from it.
Skip it in a shared or attached garage for the same noise reason you would skip any eighty-decibel unit, and consider the ECOMAX instead if you want included accessories.
How Much CFM Do You Need? Impact Wrench Drive Size Chart
For a half-inch drive impact wrench, you need 4 to 5 CFM at 90 PSI, and a compressor rated for 6 CFM or more. Three-eighth drive work needs about 3 CFM, three-quarter drive needs 6 to 7 CFM, and one-inch drive needs 8 to 10 CFM. Multiply the tool figure by 1.5 to size the compressor.
3/8 inch drive: about 3 CFM at 90 PSI minimum, 4 CFM compressor, 10 gallon tank
1/2 inch drive: 4 to 5 CFM at 90 PSI minimum, 6 CFM compressor, 20 gallon tank
3/4 inch drive: 6 to 7 CFM at 90 PSI minimum, 9 CFM compressor, 30 gallon tank
1 inch drive: 8 to 10 CFM at 90 PSI minimum, 12 CFM compressor, 30 gallon tank or larger
Note that none of the ten compressors in this roundup reach the one-inch drive threshold. That is not an oversight. At 120V household power, a five CFM ceiling is close to the practical limit of a single-cylinder residential compressor, and anything that feeds a full-size truck gun properly needs a larger electrical supply and a bigger pump than a garage outlet supports.
How to Choose an Air Compressor for Impact Wrenches
PSI matters less than almost everyone thinks. Ninety PSI is the standard working pressure for air tools, and 100 to 135 PSI max is enough headroom to feed a wrench reliably. A 225 PSI maximum does not make a compressor more powerful, it mostly extends how long the tank holds air between cycles. Judge airflow first and pressure second.
Check the pressure the CFM is measured at. This is the most common spec sheet problem in the category. A compressor quoting 4 CFM without a stated test pressure is usually quoting at 40 PSI, where the pump is barely loaded. Only 90 PSI numbers are relevant to your wrench.
Match the tank to your patience, not your ego. Roughly five to six times the tool CFM is the working rule. Five CFM of airflow wants a 20 to 30 gallon receiver. A 20-gallon tank is comfortably enough for a half-inch drive wrench, and a 6 gallon tank will work but will leave you waiting. Bigger tanks do not add power; they add time between pump kick-ons, which is the difference between a compressor you tolerate and one you stop noticing.
Decide between oil-free and oil-lubricated. Every compressor in this roundup is oil-free, which means no oil change, no oil carry-over into your regulator, and reliable cold starts. The cost is a shorter pump life under heavy continuous duty. For a home garage running a wrench a few times a month, oil-free is the right call. For a shop running pneumatic tools eight hours a day, an oil-lubricated cast-iron pump with a 100% duty cycle rating will outlast any of these.
Understand duty cycle before a professional job. A 75% duty cycle compressor can run 45 minutes out of every hour. That covers a home shop comfortably. A 100% duty cycle, cast-iron, belt-driven pump is the standard for continuous professional work, and none of the ten compressors here carries that rating, because 100% duty machines run 120V single phase on a different class of electrical supply.
Use half-inch hose, and keep it short. This is the fix for a real and often-misdiagnosed problem. Long runs of three-eighth inch hose restrict airflow and can cost you effective CFM at the tool, which feels exactly like an underpowered compressor. Fifty feet of half-inch hose beats a hundred feet of three-eighth inch hose in every practical scenario, and it is the cheapest upgrade available to you.
Budget for the electrical circuit. Small compressors run on a normal outlet. A 2 HP unit wants a 15-amp circuit. A DEWALT D55146 draws over 1,800 watts at startup and needs a dedicated circuit, and the Stealth 20-gallon will not restart under pressure on an undersized one. Check what your outlet can deliver before the compressor arrives, because a compressor that will not start is a very expensive paperweight.
Consider noise as a placement problem, not just a spec. The measured figures on this list run from 60 dB to 82 dB, and the practical mitigation that forum users actually implement is to put the compressor in a shed or an outbuilding and run hose into the working space. That single change does more for household peace of mind than upgrading from an 80 dB compressor to a 75 dB one.
Decide whether you need air at all. Cordless impact wrenches have closed the gap considerably, and enthusiasts on enthusiast forums increasingly report abandoning air tools entirely for battery. Our take after comparing both: a modern high-capacity cordless wrench handles a properly torqued lug nut on a well-maintained vehicle, and it does it without a receiver, a hose, or a pump cycle. If your work is one vehicle, occasional, air is optional. If you are running repeated heavy wheel work, a shop compressor with 5 CFM or more still wins. Our guide to the best cordless impact wrenches for drill work goes deeper on the crossover.
Handle safety basics. Check that the safety relief valve is present and stamped before first use. Drain the tank fully after every job to keep moisture out of the receiver and the pump. Look at the receiver date stamp, and if it is past ten years, have it inspected or replace it. Wear eye and hearing protection every time the pump runs, and keep the compressor away from fuel and solvents.
Frequently Asked Questions
How many PSI do I need to run an air impact wrench?
Ninety PSI is the standard working pressure for air tools, and 90 to 120 PSI maximum is enough headroom to feed an impact wrench reliably. Max PSI above that adds tank storage and time between pump cycles rather than tool power, so judge a compressor by its CFM at 90 PSI first.
What CFM is needed for an impact wrench?
A half-inch drive impact wrench needs 4 to 5 CFM at 90 PSI. Three-eighth inch drive needs about 3 CFM, three-quarter inch drive needs 6 to 7 CFM, and one-inch drive needs 8 to 10 CFM. Size the compressor at roughly 1.5 times the tool figure, so a half-inch gun points toward a 6 CFM compressor.
Is a 20 gallon air compressor enough for an impact wrench?
Yes, for a half-inch drive wrench at 5 CFM or more, a 20 gallon receiver is the right size. Use the five to six times rule: a 4 to 5 CFM tool wants a 20 to 30 gallon tank. The tank does not add power, it reduces how often the pump restarts between bursts.
Is a 6 gallon air compressor enough for an impact gun?
Only if it delivers 4 CFM or more at 90 PSI. Most 6 gallon pancakes deliver between 2.6 and 3 CFM at 90 PSI, which handles a three-eighth inch gun and short half-inch bursts but will stall on sustained lug nut work. Check the test pressure on the spec sheet, because several 6 gallon units advertise CFM measured at 40 PSI.
What is the quietest air compressor for a garage?
The Makita MAC320Q runs at a published 60 dB, the lowest figure among the ten compressors reviewed, and its low-RPM motor design is the reason. For a large tank, the Stealth 20-gallon is rated at 68 dB and measured near 65 dB at eight to ten feet. Moving the compressor to a shed and running hose indoors beats any spec sheet improvement.
Is a 20 gallon air compressor big enough for air tools?
For impact wrenches, framing nailers, and most air tools up to about 5 CFM, yes. It is not enough for high-demand tools such as orbital sanders, which reach roughly 12 CFM and cycle a 20 gallon receiver continuously. Match the tank to the tool class and check your circuit capacity at the same time.
Final Verdict: The Best Air Compressors for Impact Wrenches in 2026
After comparing all ten on airflow at 90 PSI, tank capacity, noise, and electrical demands, the Metabo HPT EC914S is the single best air compressor for impact wrenches for most people. It is the rare portable unit that publishes 4 CFM at working pressure and then actually sustains it, at 41 lbs you can carry to either end of a garage.
Buy the VEVOR 15-gallon instead if you have a reliable outlet and want the most airflow available at this level. Buy the Klutch 20-gallon if the compressor is staying put and you want fewer pump kick-ons during long jobs. Buy the Stealth 20-gallon if noise is the deciding factor, and the DEWALT D55146 if the compressor is going to work off a truck.
Whatever you pick, read the CFM number and check the pressure it was measured at before anything else. That one habit filters out most of the wrong units on the market, and it is the difference between an impact wrench that works and one that stalls halfway through a lug nut. Check the current price on any of these before you buy, and pair it with half-inch hose rather than a long thin run.
